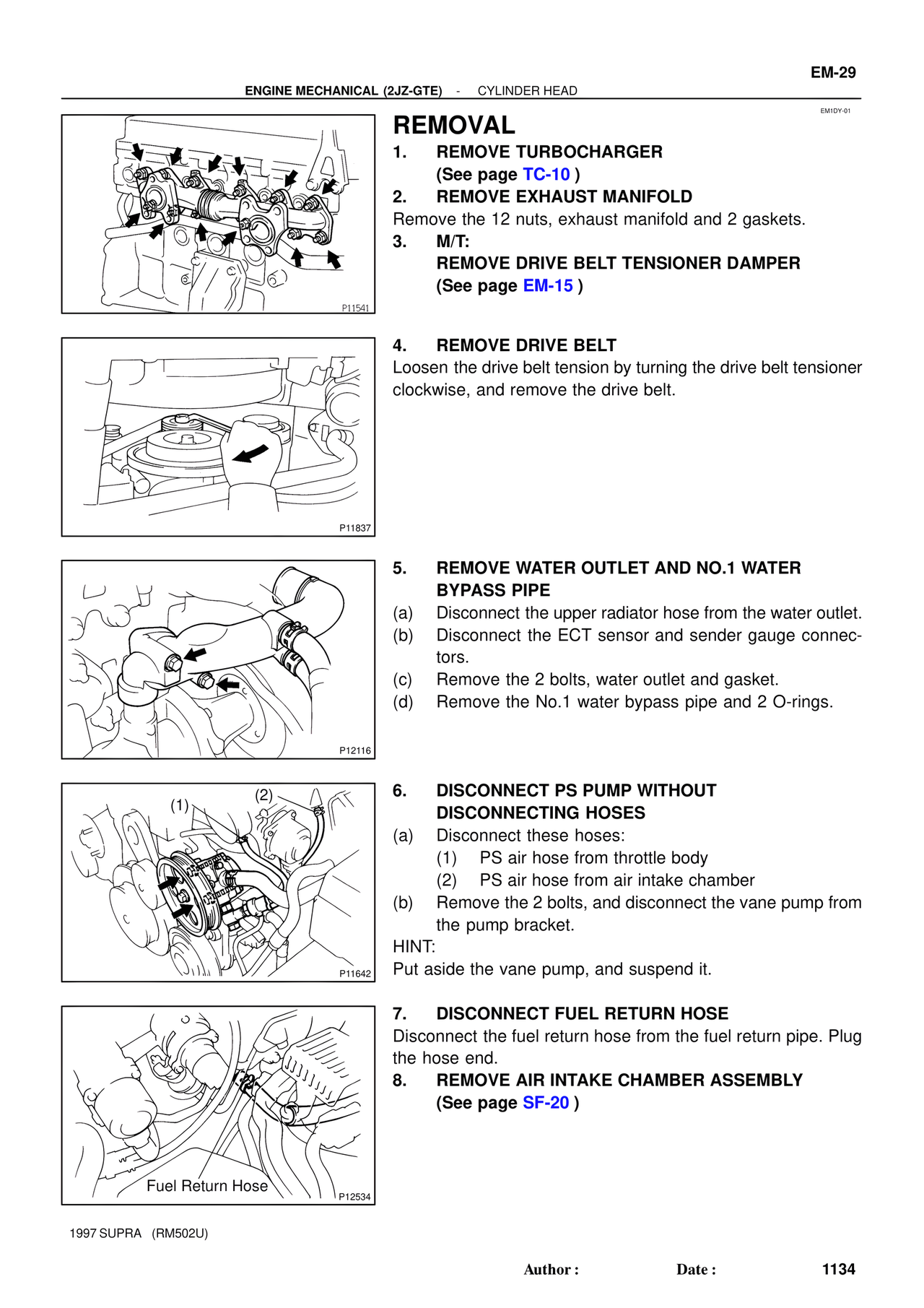

EM-29
ENGINE MECHANICAL (2JZ-GTE) - CYLINDER HEAD
EM1DY-01
REMOVAL
1. REMOVE TURBOCHARGER
(See page TC-10 )
2. REMOVE EXHAUST MANIFOLD
Remove the 12 nuts, exhaust manifold and 2 gaskets.
3. M/T:
REMOVE DRIVE BELT TENSIONER DAMPER
(See page EM-15 )
P11541
4. REMOVE DRIVE BELT
Loosen the drive belt tension by turning the drive belt tensioner
clockwise, and remove the drive belt.
P11837
5. REMOVE WATER OUTLET AND NO.1 WATER
BYPASS PIPE
(a) Disconnect the upper radiator hose from the water outlet.
(b) Disconnect the ECT sensor and sender gauge connec-
tors.
(c) Remove the 2 bolts, water outlet and gasket.
(d) Remove the No.1 water bypass pipe and 2 O-rings.
P12116
6. DISCONNECT PS PUMP WITHOUT
DISCONNECTING HOSES
(a) Disconnect these hoses:
(1) PS air hose from throttle body
(2) PS air hose from air intake chamber
(b) Remove the 2 bolts, and disconnect the vane pump from
the pump bracket.
HINT:
Put aside the vane pump, and suspend it.
P11642
7. DISCONNECT FUEL RETURN HOSE
Disconnect the fuel return hose from the fuel return pipe. Plug
the hose end.
8. REMOVE AIR INTAKE CHAMBER ASSEMBLY
(See page SF-20 )
Fuel Return Hose
P12534
1997 SUPRA (RM502U)
