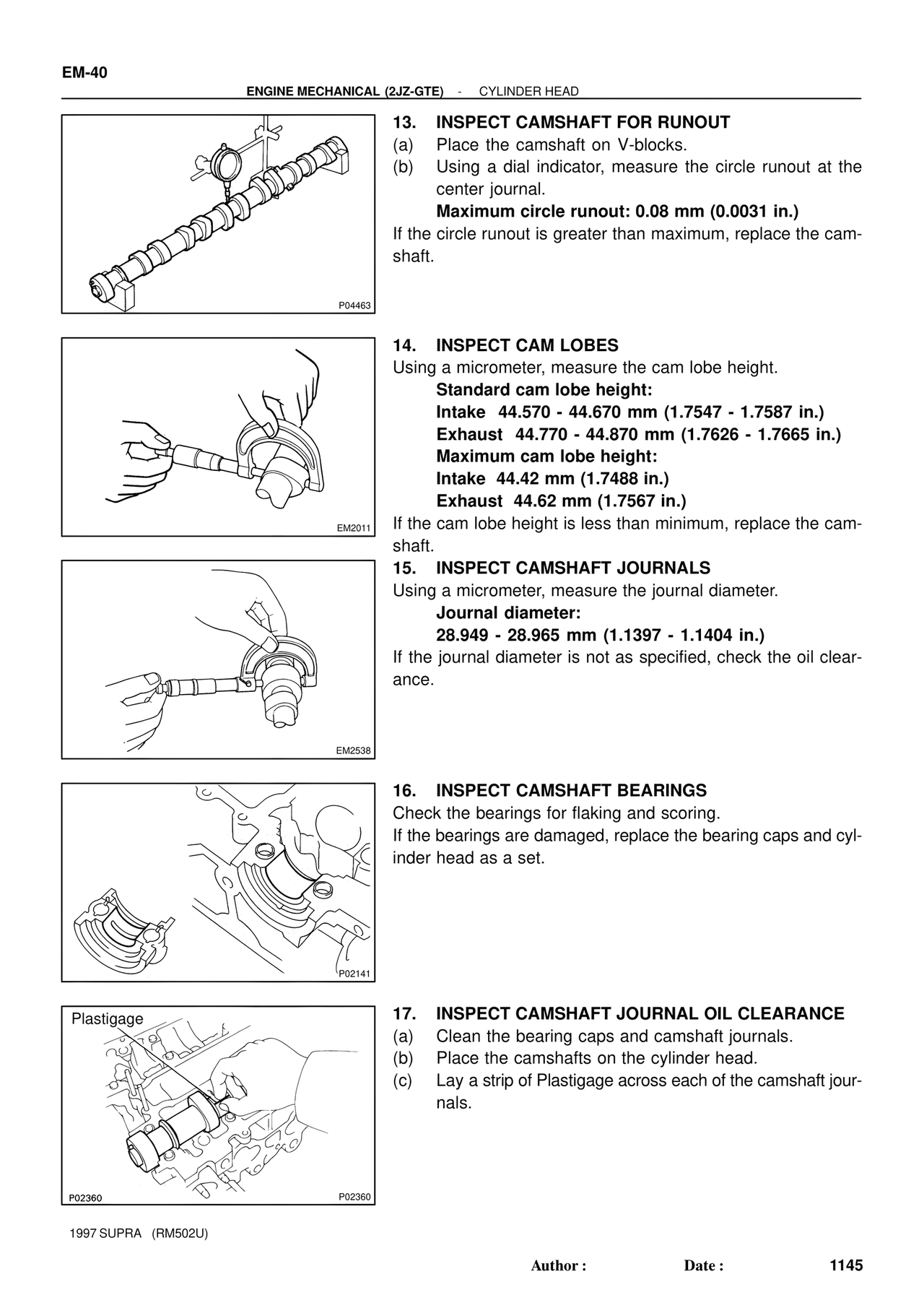

EM-40 ENGINE MECHANICAL (2JZ-GTE) - CYLINDER HEAD P04463 13. INSPECT CAMSHAFT FOR RUNOUT (a) Place the camshaft on V-blocks. (b) Using a dial indicator, measure the circle runout at the center journal. Maximum circle runout: 0.08 mm (0.0031 in.) If the circle runout is greater than maximum, replace the camshaft. EM2011 14. INSPECT CAM LOBES Using a micrometer, measure the cam lobe height. Standard cam lobe height: Intake 44.570 - 44.670 mm (1.7547 - 1.7587 in.) Exhaust 44.770 - 44.870 mm (1.7626 - 1.7665 in.) Maximum cam lobe height: Intake 44.42 mm (1.7488 in.) Exhaust 44.62 mm (1.7567 in.) If the cam lobe height is less than minimum, replace the camshaft. EM2538 15. INSPECT CAMSHAFT JOURNALS Using a micrometer, measure the journal diameter. Journal diameter: 28.949 - 28.965 mm (1.1397 - 1.1404 in.) If the journal diameter is not as specified, check the oil clearance. P02141 16. INSPECT CAMSHAFT BEARINGS Check the bearings for flaking and scoring. If the bearings are damaged, replace the bearing caps and cylinder head as a set. Plastigage P02360 P02360 17. INSPECT CAMSHAFT JOURNAL OIL CLEARANCE (a) Clean the bearing caps and camshaft journals. (b) Place the camshafts on the cylinder head. (c) Lay a strip of Plastigage across each of the camshaft journals. 1997 SUPRA (RM502U) Author : Date : 1145
