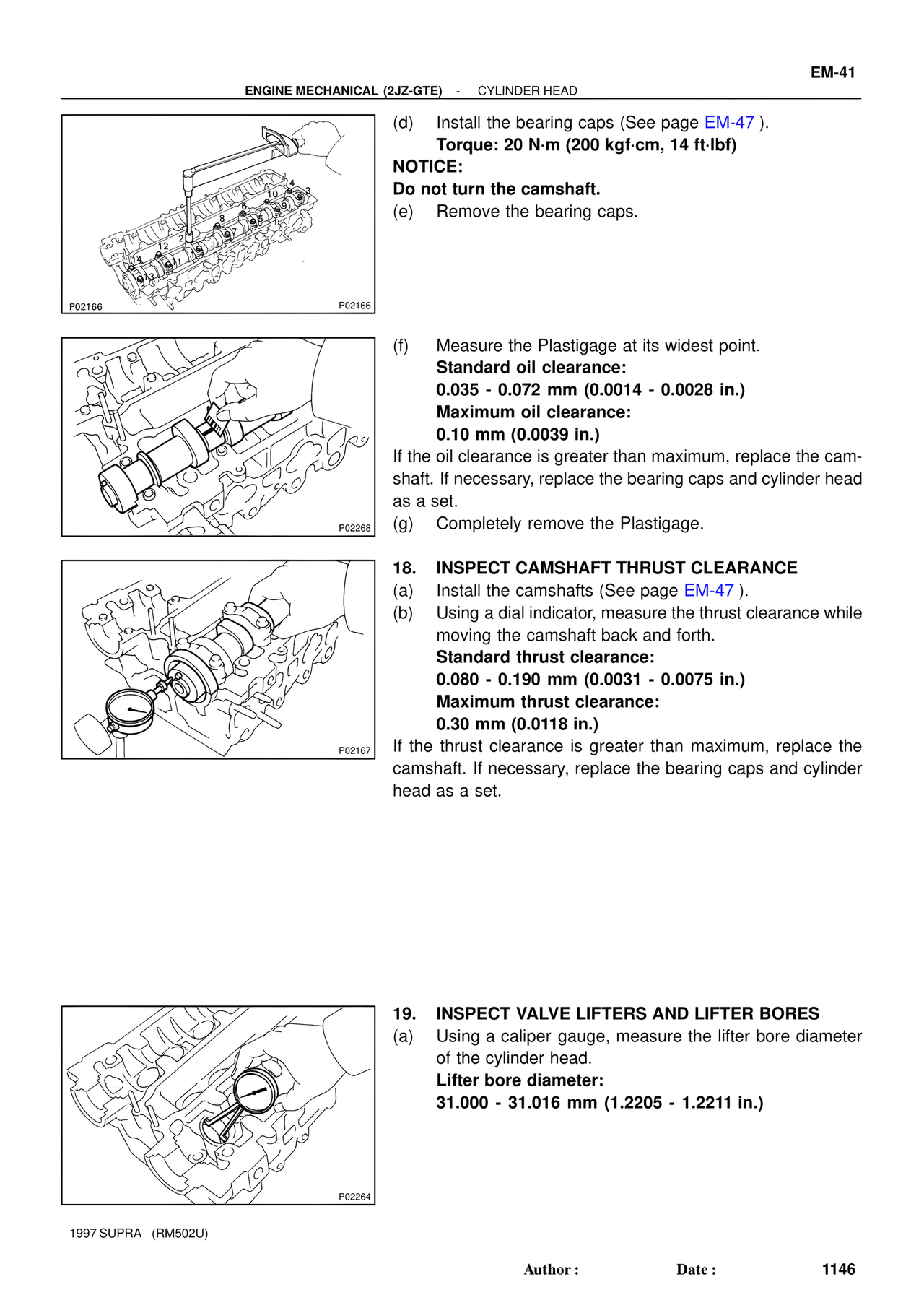

EM-41
ENGINE MECHANICAL (2JZ-GTE) - CYLINDER HEAD
P02166
(d) Install the bearing caps (See page EM-47 ).
Torque: 20 N·m (200 kgf·cm, 14 ft·lbf)
NOTICE:
Do not turn the camshaft.
(e) Remove the bearing caps.
P02268
(f) Measure the Plastigage at its widest point.
Standard oil clearance:
0.035 - 0.072 mm (0.0014 - 0.0028 in.)
Maximum oil clearance:
0.10 mm (0.0039 in.)
If the oil clearance is greater than maximum, replace the cam-
shaft. If necessary, replace the bearing caps and cylinder head
as a set.
(g) Completely remove the Plastigage.
P02167
18. INSPECT CAMSHAFT THRUST CLEARANCE
(a) Install the camshafts (See page EM-47 ).
(b) Using a dial indicator, measure the thrust clearance while
moving the camshaft back and forth.
Standard thrust clearance:
0.080 - 0.190 mm (0.0031 - 0.0075 in.)
Maximum thrust clearance:
0.30 mm (0.0118 in.)
If the thrust clearance is greater than maximum, replace the
camshaft. If necessary, replace the bearing caps and cylinder
head as a set.
P02264
19. INSPECT VALVE LIFTERS AND LIFTER BORES
(a) Using a caliper gauge, measure the lifter bore diameter
of the cylinder head.
Lifter bore diameter:
31.000 - 31.016 mm (1.2205 - 1.2211 in.)
1997 SUPRA (RM502U)
