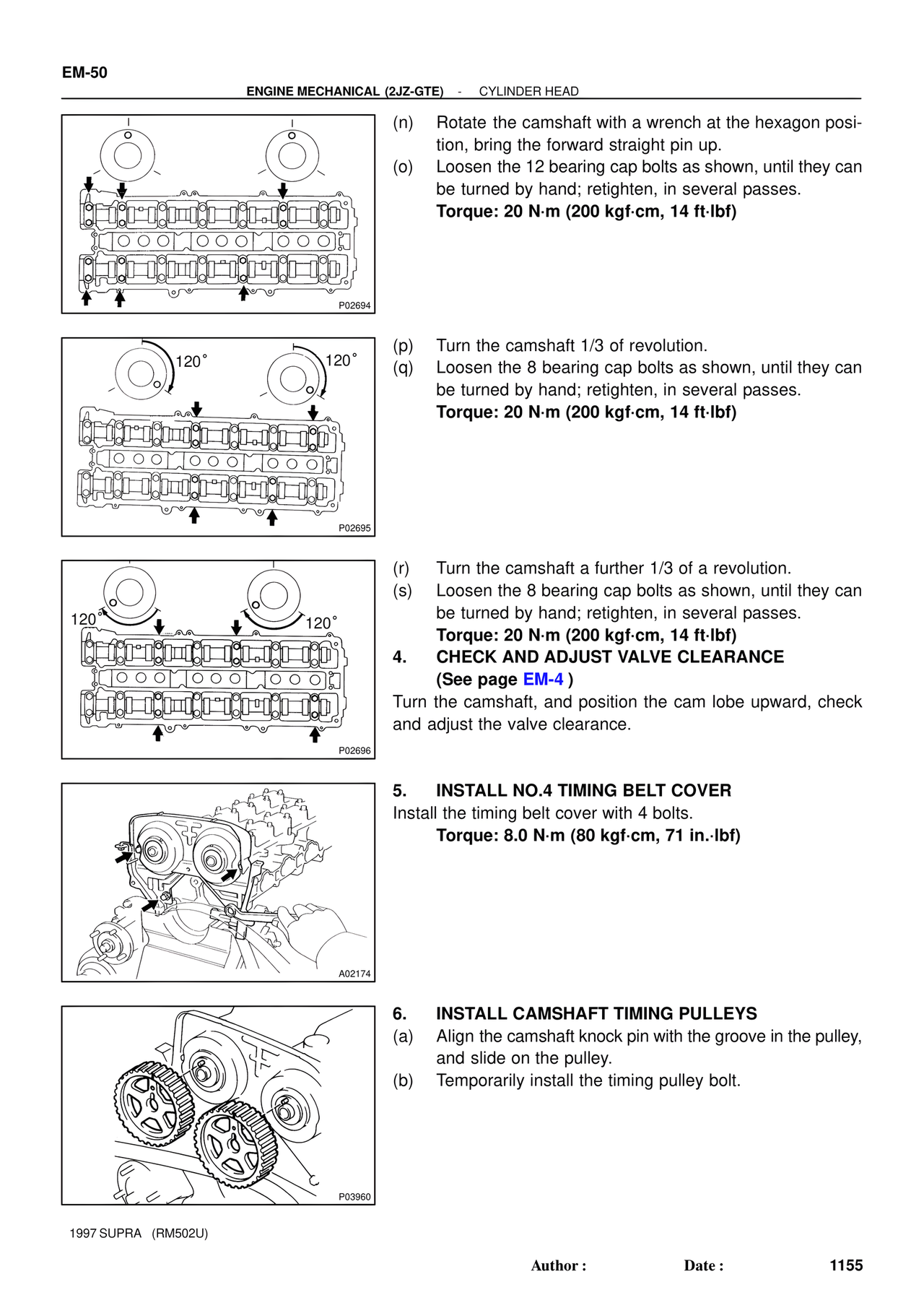

EM-50 ENGINE MECHANICAL (2JZ-GTE) - CYLINDER HEAD P02694 (n) Rotate the camshaft with a wrench at the hexagon position, bring the forward straight pin up. (o) Loosen the 12 bearing cap bolts as shown, until they can be turned by hand; retighten, in several passes. Torque: 20 N·m (200 kgf·cm, 14 ft·lbf) P02695 120° 120° (p) Turn the camshaft 1/3 of revolution. (q) Loosen the 8 bearing cap bolts as shown, until they can be turned by hand; retighten, in several passes. Torque: 20 N·m (200 kgf·cm, 14 ft·lbf) P02696 120° 120° (r) Turn the camshaft a further 1/3 of a revolution. (s) Loosen the 8 bearing cap bolts as shown, until they can be turned by hand; retighten, in several passes. Torque: 20 N·m (200 kgf·cm, 14 ft·lbf) 4. CHECK AND ADJUST VALVE CLEARANCE (See page EM-4 ) Turn the camshaft, and position the cam lobe upward, check and adjust the valve clearance. A02174 5. INSTALL NO.4 TIMING BELT COVER Install the timing belt cover with 4 bolts. Torque: 8.0 N·m (80 kgf·cm, 71 in.·lbf) P03960 6. INSTALL CAMSHAFT TIMING PULLEYS (a) Align the camshaft knock pin with the groove in the pulley, and slide on the pulley. (b) Temporarily install the timing pulley bolt. 1997 SUPRA (RM502U) Author : Date : 1155
