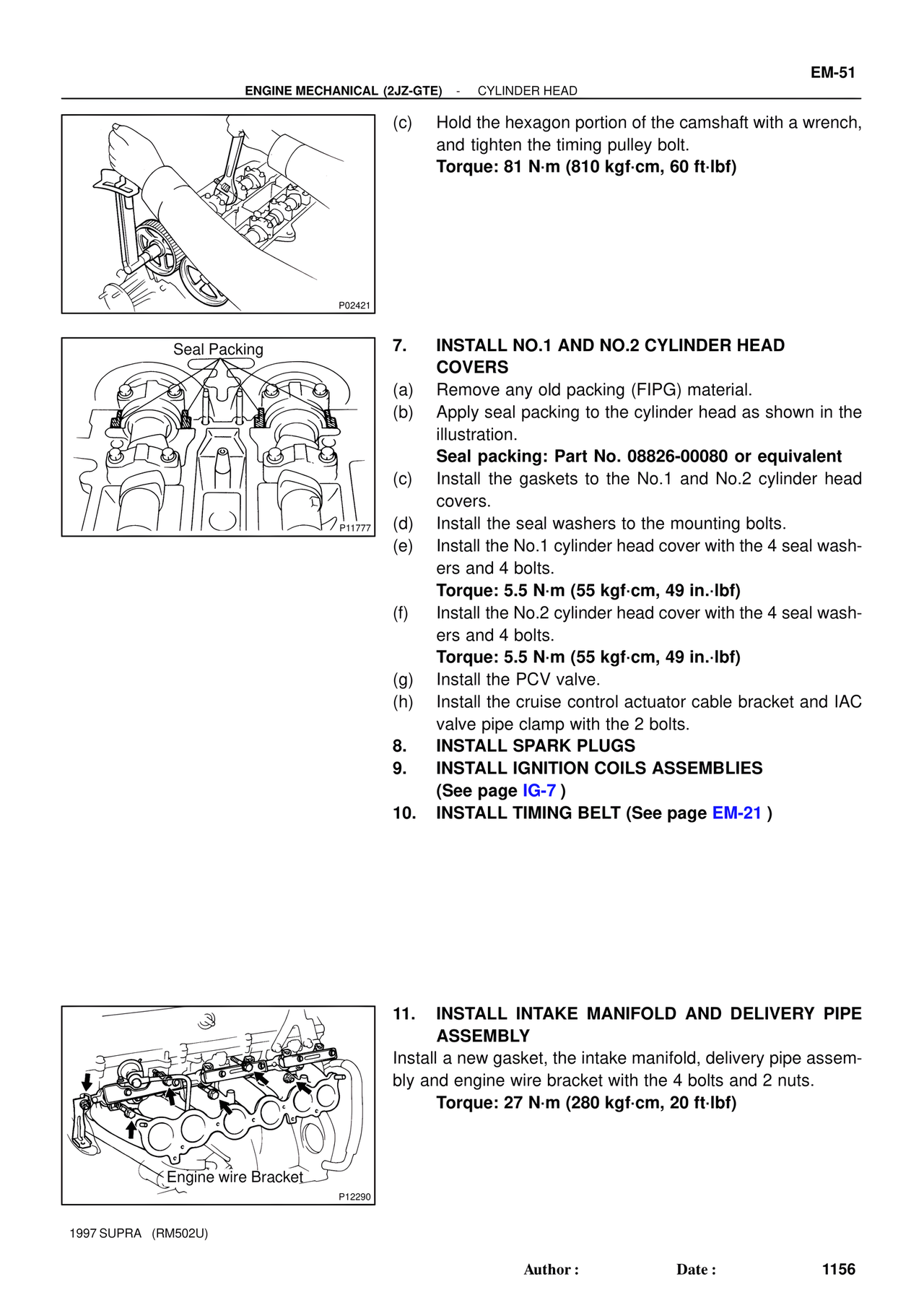

EM-51
ENGINE MECHANICAL (2JZ-GTE) - CYLINDER HEAD
P02421
(c) Hold the hexagon portion of the camshaft with a wrench,
and tighten the timing pulley bolt.
Torque: 81 N·m (810 kgf·cm, 60 ft·lbf)
Seal Packing
P11777
7. INSTALL NO.1 AND NO.2 CYLINDER HEAD
COVERS
(a) Remove any old packing (FIPG) material.
(b) Apply seal packing to the cylinder head as shown in the
illustration.
Seal packing: Part No. 08826-00080 or equivalent
(c) Install the gaskets to the No.1 and No.2 cylinder head
covers.
(d) Install the seal washers to the mounting bolts.
(e) Install the No.1 cylinder head cover with the 4 seal wash-
ers and 4 bolts.
Torque: 5.5 N·m (55 kgf·cm, 49 in.·lbf)
(f) Install the No.2 cylinder head cover with the 4 seal wash-
ers and 4 bolts.
Torque: 5.5 N·m (55 kgf·cm, 49 in.·lbf)
(g) Install the PCV valve.
(h) Install the cruise control actuator cable bracket and IAC
valve pipe clamp with the 2 bolts.
8. INSTALL SPARK PLUGS
9. INSTALL IGNITION COILS ASSEMBLIES
(See page IG-7 )
10. INSTALL TIMING BELT (See page EM-21 )
Engine wire Bracket
P12290
11. INSTALL INTAKE MANIFOLD AND DELIVERY PIPE
ASSEMBLY
Install a new gasket, the intake manifold, delivery pipe assem-
bly and engine wire bracket with the 4 bolts and 2 nuts.
Torque: 27 N·m (280 kgf·cm, 20 ft·lbf)
1997 SUPRA (RM502U)
Author : Date : 1156
