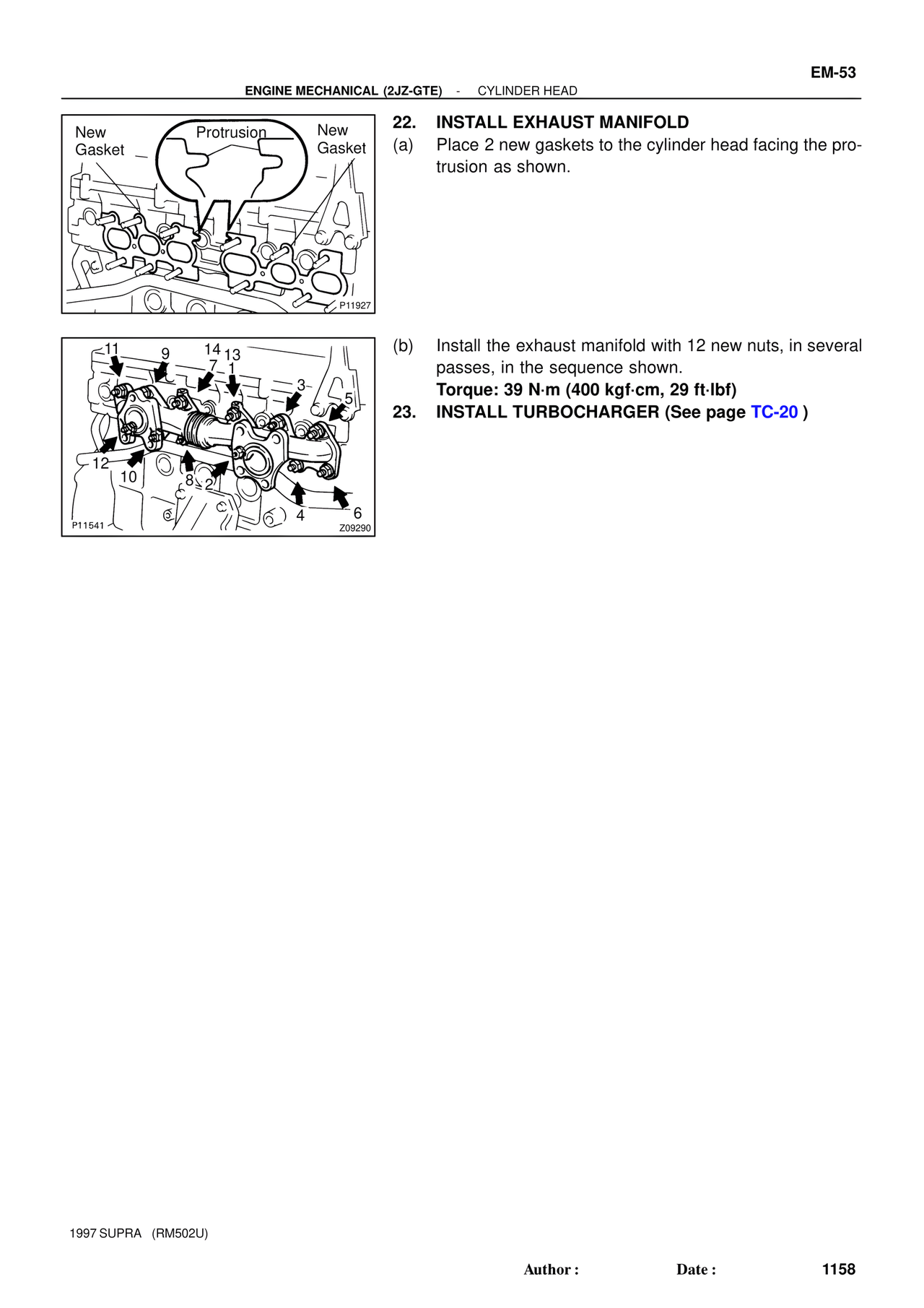

EM-53 ENGINE MECHANICAL (2JZ-GTE) - CYLINDER HEAD New Gasket Protrusion New Gasket P11927 22. INSTALL EXHAUST MANIFOLD (a) Place 2 new gaskets to the cylinder head facing the protrusion as shown. 11 9 14 13 7 1 3 5 12 10 8 2 4 6 P11541 Z09290 (b) Install the exhaust manifold with 12 new nuts, in several passes, in the sequence shown. Torque: 39 N·m (400 kgf·cm, 29 ft·lbf) 23. INSTALL TURBOCHARGER (See page TC-20 ) 1997 SUPRA (RM502U) Author : Date : 1158
