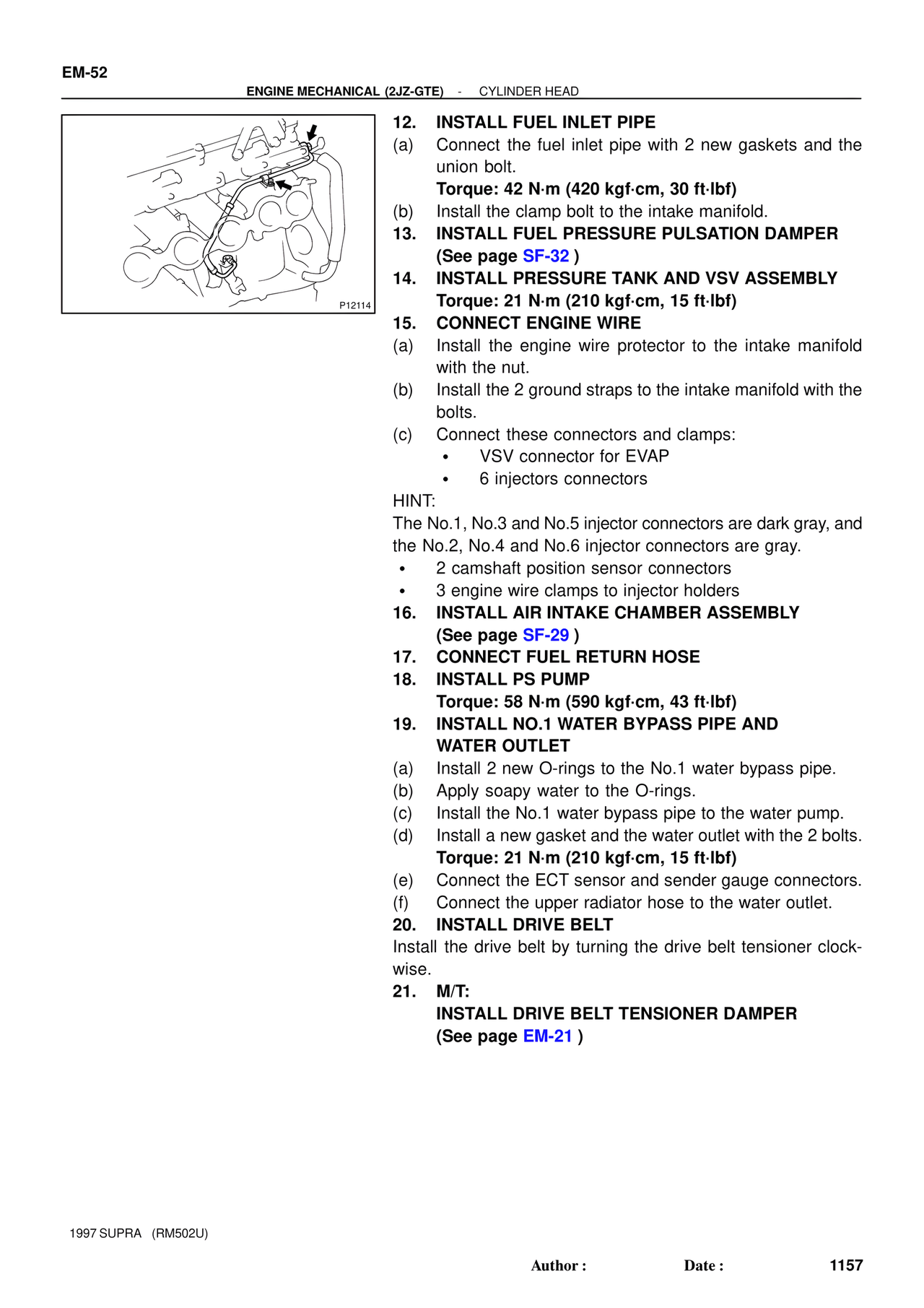

EM-52 ENGINE MECHANICAL (2JZ-GTE) - CYLINDER HEAD P12114 12. INSTALL FUEL INLET PIPE (a) Connect the fuel inlet pipe with 2 new gaskets and the union bolt. Torque: 42 N·m (420 kgf·cm, 30 ft·lbf) (b) Install the clamp bolt to the intake manifold. 13. INSTALL FUEL PRESSURE PULSATION DAMPER (See page SF-32 ) 14. INSTALL PRESSURE TANK AND VSV ASSEMBLY Torque: 21 N·m (210 kgf·cm, 15 ft·lbf) 15. CONNECT ENGINE WIRE (a) Install the engine wire protector to the intake manifold with the nut. (b) Install the 2 ground straps to the intake manifold with the bolts. (c) Connect these connectors and clamps: • VSV connector for EVAP • 6 injectors connectors HINT: The No.1, No.3 and No.5 injector connectors are dark gray, and the No.2, No.4 and No.6 injector connectors are gray. • 2 camshaft position sensor connectors • 3 engine wire clamps to injector holders 16. INSTALL AIR INTAKE CHAMBER ASSEMBLY (See page SF-29 ) 17. CONNECT FUEL RETURN HOSE 18. INSTALL PS PUMP Torque: 58 N·m (590 kgf·cm, 43 ft·lbf) 19. INSTALL NO.1 WATER BYPASS PIPE AND WATER OUTLET (a) Install 2 new O-rings to the No.1 water bypass pipe. (b) Apply soapy water to the O-rings. (c) Install the No.1 water bypass pipe to the water pump. (d) Install a new gasket and the water outlet with the 2 bolts. Torque: 21 N·m (210 kgf·cm, 15 ft·lbf) (e) Connect the ECT sensor and sender gauge connectors. (f) Connect the upper radiator hose to the water outlet. 20. INSTALL DRIVE BELT Install the drive belt by turning the drive belt tensioner clockwise. 21. M/T: INSTALL DRIVE BELT TENSIONER DAMPER (See page EM-21 ) 1997 SUPRA (RM502U) Author : Date : 1157
