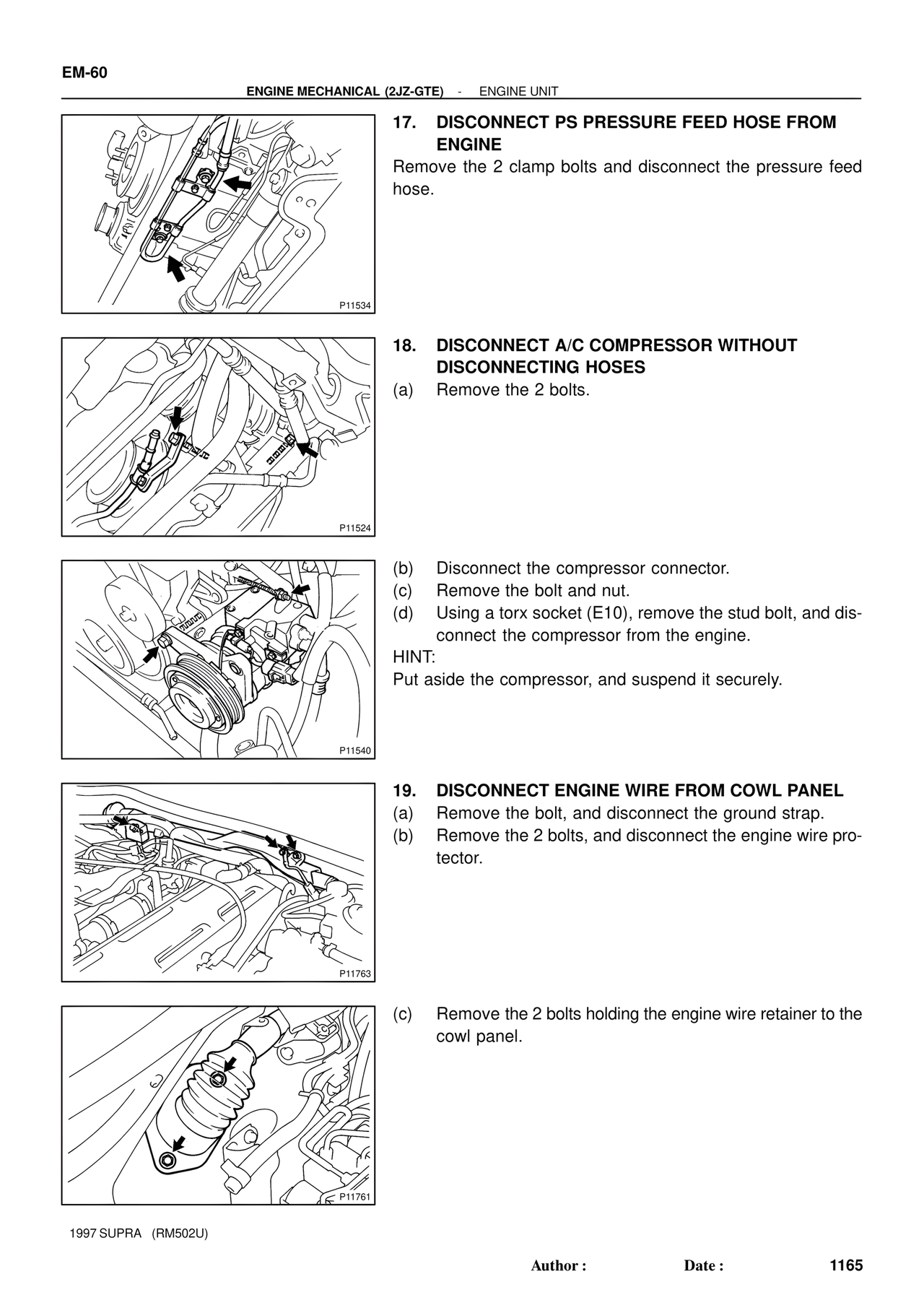

EM-60 ENGINE MECHANICAL (2JZ-GTE) - ENGINE UNIT 17. DISCONNECT PS PRESSURE FEED HOSE FROM ENGINE Remove the 2 clamp bolts and disconnect the pressure feed hose. P11534 18. DISCONNECT A/C COMPRESSOR WITHOUT DISCONNECTING HOSES (a) Remove the 2 bolts. P11524 (b) Disconnect the compressor connector. (c) Remove the bolt and nut. (d) Using a torx socket (E10), remove the stud bolt, and disconnect the compressor from the engine. HINT: Put aside the compressor, and suspend it securely. P11540 19. DISCONNECT ENGINE WIRE FROM COWL PANEL (a) Remove the bolt, and disconnect the ground strap. (b) Remove the 2 bolts, and disconnect the engine wire protector. P11763 (c) Remove the 2 bolts holding the engine wire retainer to the cowl panel. P11761 1997 SUPRA (RM502U) Author : Date : 1165
