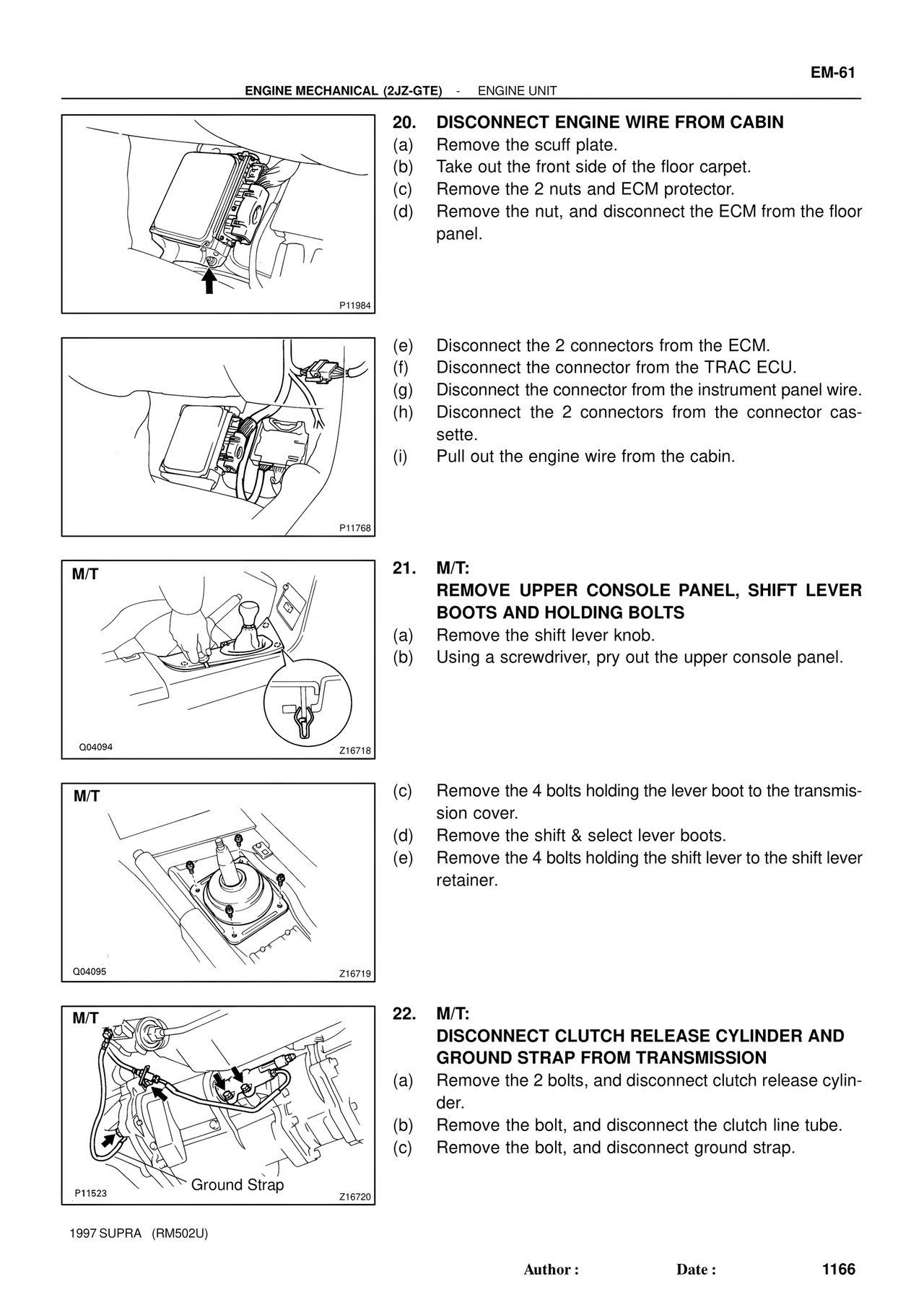

EM-61
ENGINE MECHANICAL (2JZ-GTE) - ENGINE UNIT
P11984
20. DISCONNECT ENGINE WIRE FROM CABIN
(a) Remove the scuff plate.
(b) Take out the front side of the floor carpet.
(c) Remove the 2 nuts and ECM protector.
(d) Remove the nut, and disconnect the ECM from the floor panel.
P11768
(e) Disconnect the 2 connectors from the ECM.
(f) Disconnect the connector from the TRAC ECU.
(g) Disconnect the connector from the instrument panel wire.
(h) Disconnect the 2 connectors from the connector cassette.
(i) Pull out the engine wire from the cabin.
M/T
Q04094 Z16718
21. M/T:
REMOVE UPPER CONSOLE PANEL, SHIFT LEVER BOOTS AND HOLDING BOLTS
(a) Remove the shift lever knob.
(b) Using a screwdriver, pry out the upper console panel.
M/T
Q04095 Z16719
(c) Remove the 4 bolts holding the lever boot to the transmission cover.
(d) Remove the shift & select lever boots.
(e) Remove the 4 bolts holding the shift lever to the shift lever retainer.
M/T
Ground Strap
P11523 Z16720
22. M/T:
DISCONNECT CLUTCH RELEASE CYLINDER AND GROUND STRAP FROM TRANSMISSION
(a) Remove the 2 bolts, and disconnect clutch release cylinder.
(b) Remove the bolt, and disconnect the clutch line tube.
(c) Remove the bolt, and disconnect ground strap.
1997 SUPRA (RM502U)
Author : Date : 1166
