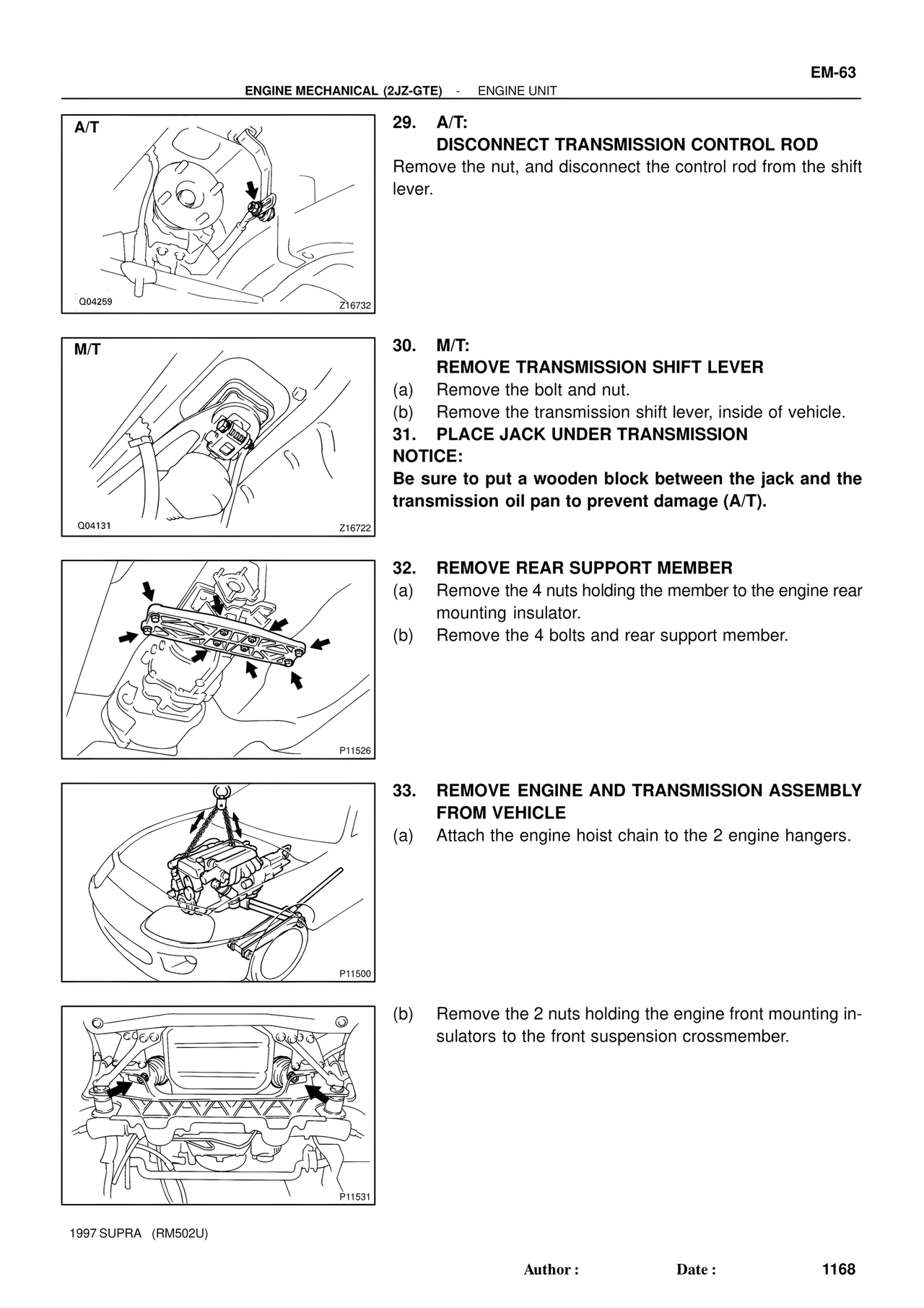

EM-63 ENGINE MECHANICAL (2JZ-GTE) - ENGINE UNIT A/T Q04259 Z16732 29. A/T: DISCONNECT TRANSMISSION CONTROL ROD Remove the nut, and disconnect the control rod from the shift lever. M/T Q04131 Z16722 30. M/T: REMOVE TRANSMISSION SHIFT LEVER (a) Remove the bolt and nut. (b) Remove the transmission shift lever, inside of vehicle. 31. PLACE JACK UNDER TRANSMISSION NOTICE: Be sure to put a wooden block between the jack and the transmission oil pan to prevent damage (A/T). P11526 32. REMOVE REAR SUPPORT MEMBER (a) Remove the 4 nuts holding the member to the engine rear mounting insulator. (b) Remove the 4 bolts and rear support member. P11500 33. REMOVE ENGINE AND TRANSMISSION ASSEMBLY FROM VEHICLE (a) Attach the engine hoist chain to the 2 engine hangers. P11531 (b) Remove the 2 nuts holding the engine front mounting insulators to the front suspension crossmember. 1997 SUPRA (RM502U) Author : Date : 1168
