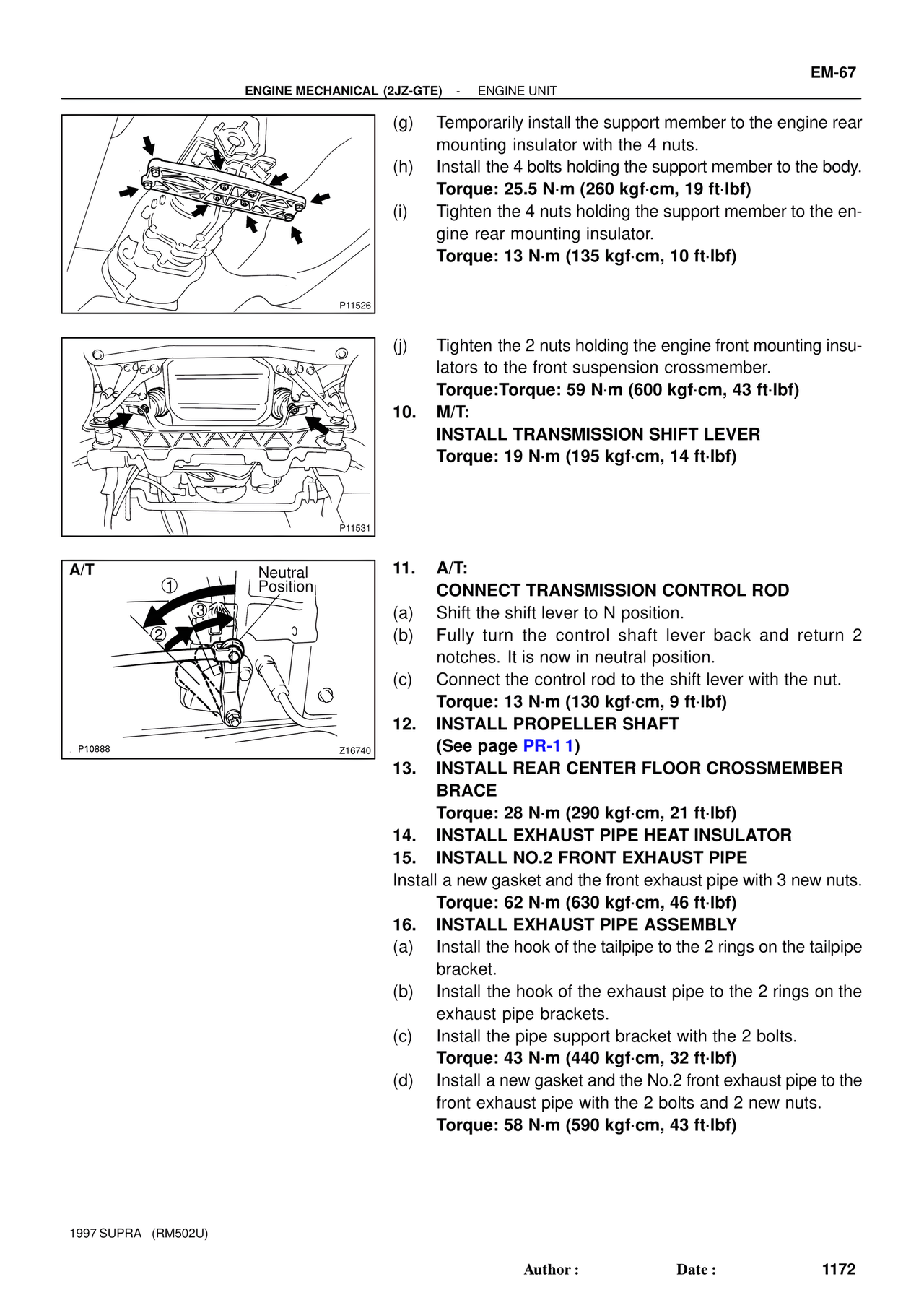

EM-67 ENGINE MECHANICAL (2JZ-GTE) - ENGINE UNIT P11526 (g) Temporarily install the support member to the engine rear mounting insulator with the 4 nuts. (h) Install the 4 bolts holding the support member to the body. Torque: 25.5 N·m (260 kgf·cm, 19 ft·lbf) (i) Tighten the 4 nuts holding the support member to the engine rear mounting insulator. Torque: 13 N·m (135 kgf·cm, 10 ft·lbf) P11531 (j) Tighten the 2 nuts holding the engine front mounting insulators to the front suspension crossmember. Torque:Torque: 59 N·m (600 kgf·cm, 43 ft·lbf) 10. M/T: INSTALL TRANSMISSION SHIFT LEVER Torque: 19 N·m (195 kgf·cm, 14 ft·lbf) A/T Neutral Position ① ② ③ P10888 Z16740 11. A/T: CONNECT TRANSMISSION CONTROL ROD (a) Shift the shift lever to N position. (b) Fully turn the control shaft lever back and return 2 notches. It is now in neutral position. (c) Connect the control rod to the shift lever with the nut. Torque: 13 N·m (130 kgf·cm, 9 ft·lbf) 12. INSTALL PROPELLER SHAFT (See page PR-1 1) 13. INSTALL REAR CENTER FLOOR CROSSMEMBER BRACE Torque: 28 N·m (290 kgf·cm, 21 ft·lbf) 14. INSTALL EXHAUST PIPE HEAT INSULATOR 15. INSTALL NO.2 FRONT EXHAUST PIPE Install a new gasket and the front exhaust pipe with 3 new nuts. Torque: 62 N·m (630 kgf·cm, 46 ft·lbf) 16. INSTALL EXHAUST PIPE ASSEMBLY (a) Install the hook of the tailpipe to the 2 rings on the tailpipe bracket. (b) Install the hook of the exhaust pipe to the 2 rings on the exhaust pipe brackets. (c) Install the pipe support bracket with the 2 bolts. Torque: 43 N·m (440 kgf·cm, 32 ft·lbf) (d) Install a new gasket and the No.2 front exhaust pipe to the front exhaust pipe with the 2 bolts and 2 new nuts. Torque: 58 N·m (590 kgf·cm, 43 ft·lbf) 1997 SUPRA (RM502U) Author : Date : 1172
