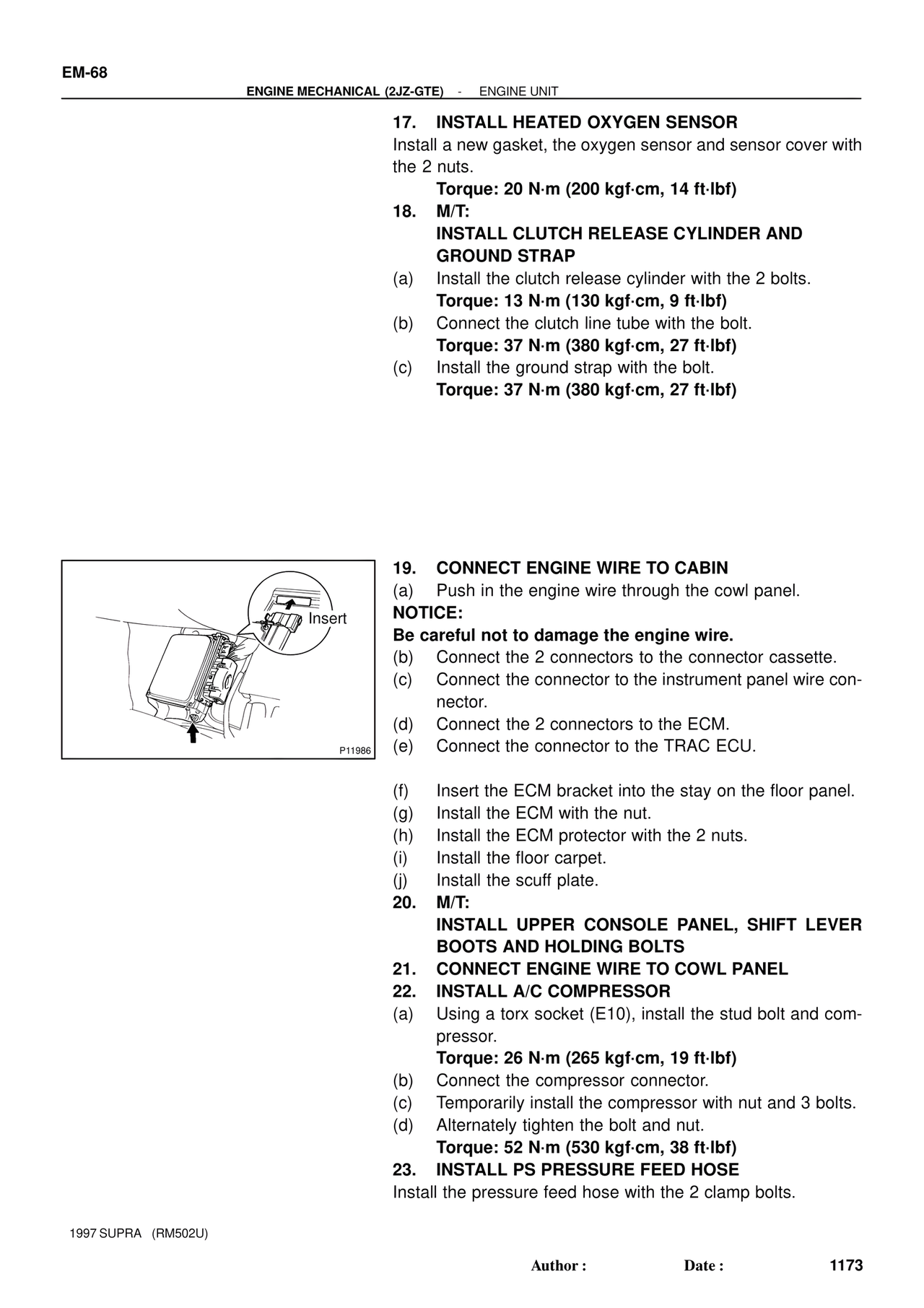

EM-68
ENGINE MECHANICAL (2JZ-GTE) - ENGINE UNIT
17. INSTALL HEATED OXYGEN SENSOR
Install a new gasket, the oxygen sensor and sensor cover with
the 2 nuts.
Torque: 20 N·m (200 kgf·cm, 14 ft·lbf)
18. M/T:
INSTALL CLUTCH RELEASE CYLINDER AND
GROUND STRAP
(a) Install the clutch release cylinder with the 2 bolts.
Torque: 13 N·m (130 kgf·cm, 9 ft·lbf)
(b) Connect the clutch line tube with the bolt.
Torque: 37 N·m (380 kgf·cm, 27 ft·lbf)
(c) Install the ground strap with the bolt.
Torque: 37 N·m (380 kgf·cm, 27 ft·lbf)
Insert
P11986
19. CONNECT ENGINE WIRE TO CABIN
(a) Push in the engine wire through the cowl panel.
NOTICE:
Be careful not to damage the engine wire.
(b) Connect the 2 connectors to the connector cassette.
(c) Connect the connector to the instrument panel wire con-
nector.
(d) Connect the 2 connectors to the ECM.
(e) Connect the connector to the TRAC ECU.
(f) Insert the ECM bracket into the stay on the floor panel.
(g) Install the ECM with the nut.
(h) Install the ECM protector with the 2 nuts.
(i) Install the floor carpet.
(j) Install the scuff plate.
20. M/T:
INSTALL UPPER CONSOLE PANEL, SHIFT LEVER
BOOTS AND HOLDING BOLTS
21. CONNECT ENGINE WIRE TO COWL PANEL
22. INSTALL A/C COMPRESSOR
(a) Using a torx socket (E10), install the stud bolt and com-
pressor.
Torque: 26 N·m (265 kgf·cm, 19 ft·lbf)
(b) Connect the compressor connector.
(c) Temporarily install the compressor with nut and 3 bolts.
(d) Alternately tighten the bolt and nut.
Torque: 52 N·m (530 kgf·cm, 38 ft·lbf)
23. INSTALL PS PRESSURE FEED HOSE
Install the pressure feed hose with the 2 clamp bolts.
1997 SUPRA (RM502U)
Author : Date : 1173
