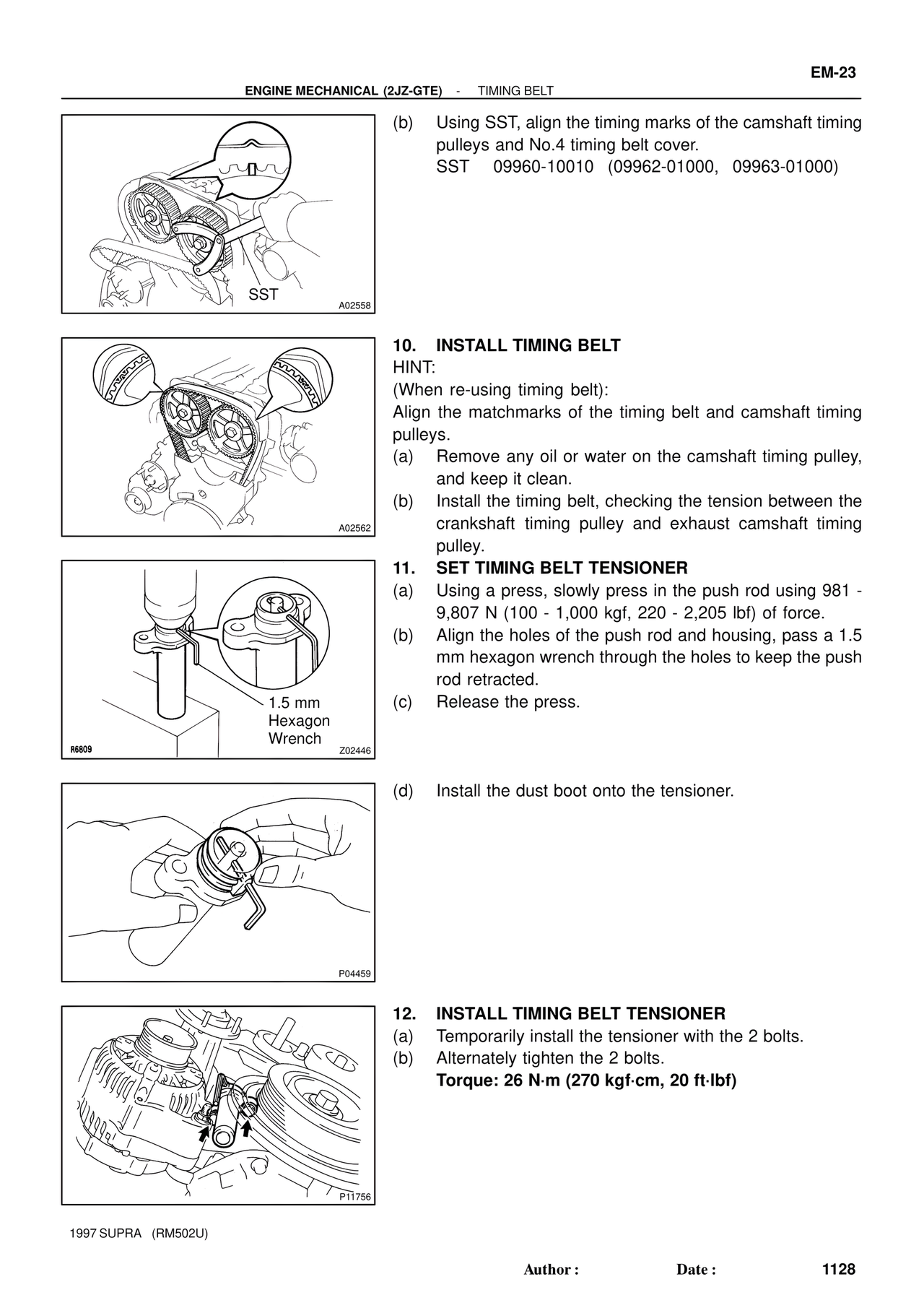

EM-23
ENGINE MECHANICAL (2JZ-GTE) - TIMING BELT
SST
A02558
(b) Using SST, align the timing marks of the camshaft timing
pulleys and No.4 timing belt cover.
SST 09960-10010 (09962-01000, 09963-01000)
A02562
10. INSTALL TIMING BELT
HINT:
(When re-using timing belt):
Align the matchmarks of the timing belt and camshaft timing
pulleys.
(a) Remove any oil or water on the camshaft timing pulley,
and keep it clean.
(b) Install the timing belt, checking the tension between the
crankshaft timing pulley and exhaust camshaft timing
pulley.
11. SET TIMING BELT TENSIONER
(a) Using a press, slowly press in the push rod using 981 -
9,807 N (100 - 1,000 kgf, 220 - 2,205 lbf) of force.
(b) Align the holes of the push rod and housing, pass a 1.5
mm hexagon wrench through the holes to keep the push
rod retracted.
(c) Release the press.
1.5 mm
Hexagon
Wrench
R6809
Z02446
(d) Install the dust boot onto the tensioner.
P04459
12. INSTALL TIMING BELT TENSIONER
(a) Temporarily install the tensioner with the 2 bolts.
(b) Alternately tighten the 2 bolts.
Torque: 26 N·m (270 kgf·cm, 20 ft·lbf)
P11756
1997 SUPRA (RM502U)
Author : Date : 1128
