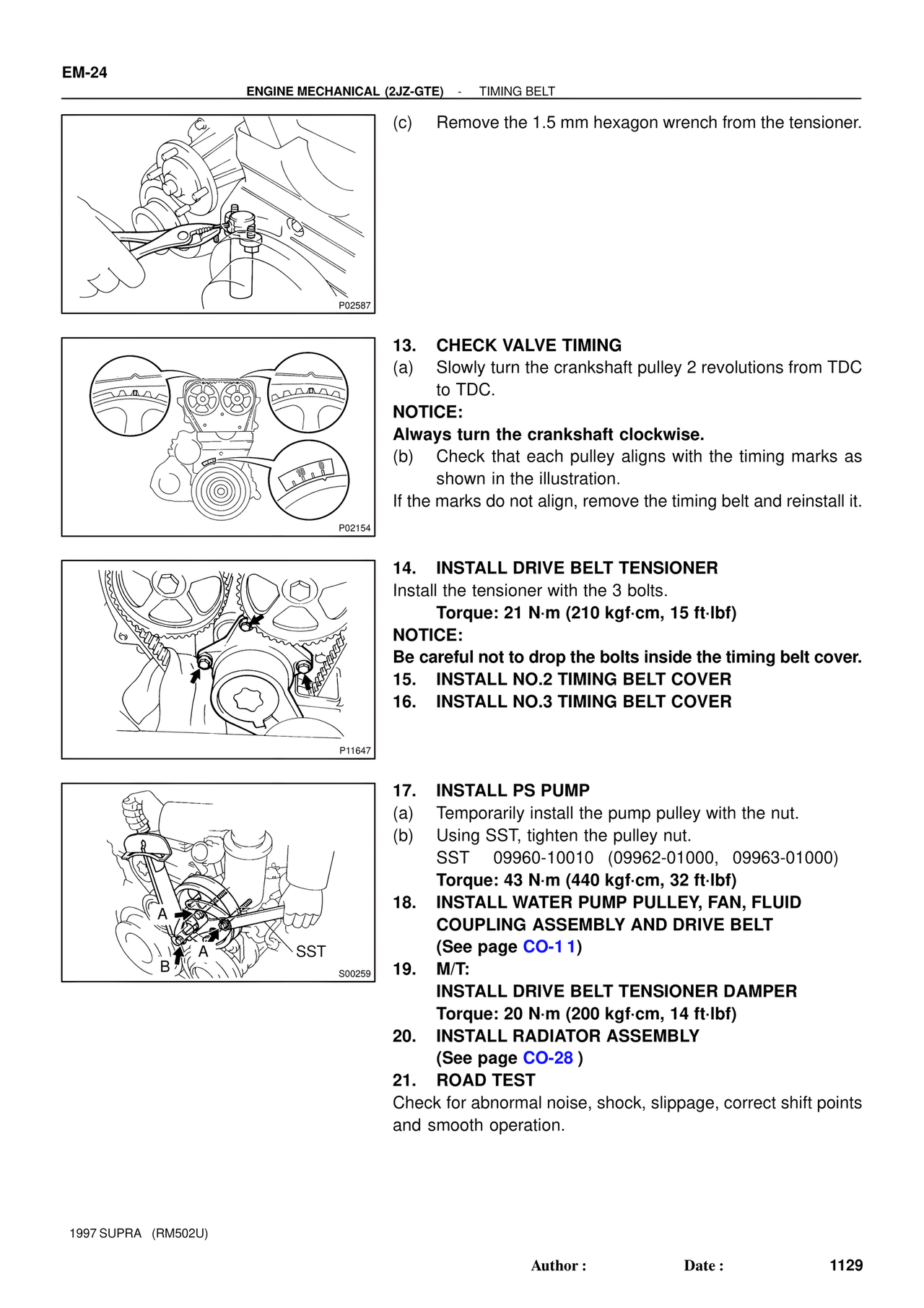

EM-24
ENGINE MECHANICAL (2JZ-GTE) - TIMING BELT
P02587
(c) Remove the 1.5 mm hexagon wrench from the tensioner.
P02154
13. CHECK VALVE TIMING
(a) Slowly turn the crankshaft pulley 2 revolutions from TDC to TDC.
NOTICE:
Always turn the crankshaft clockwise.
(b) Check that each pulley aligns with the timing marks as shown in the illustration.
If the marks do not align, remove the timing belt and reinstall it.
P11647
14. INSTALL DRIVE BELT TENSIONER
Install the tensioner with the 3 bolts.
Torque: 21 N·m (210 kgf·cm, 15 ft·lbf)
NOTICE:
Be careful not to drop the bolts inside the timing belt cover.
15. INSTALL NO.2 TIMING BELT COVER
16. INSTALL NO.3 TIMING BELT COVER
S00259
17. INSTALL PS PUMP
(a) Temporarily install the pump pulley with the nut.
(b) Using SST, tighten the pulley nut.
SST 09960-10010 (09962-01000, 09963-01000)
Torque: 43 N·m (440 kgf·cm, 32 ft·lbf)
18. INSTALL WATER PUMP PULLEY, FAN, FLUID COUPLING ASSEMBLY AND DRIVE BELT
(See page CO-1 1)
19. M/T:
INSTALL DRIVE BELT TENSIONER DAMPER
Torque: 20 N·m (200 kgf·cm, 14 ft·lbf)
20. INSTALL RADIATOR ASSEMBLY
(See page CO-28 )
21. ROAD TEST
Check for abnormal noise, shock, slippage, correct shift points and smooth operation.
1997 SUPRA (RM502U)
Author : Date : 1129
