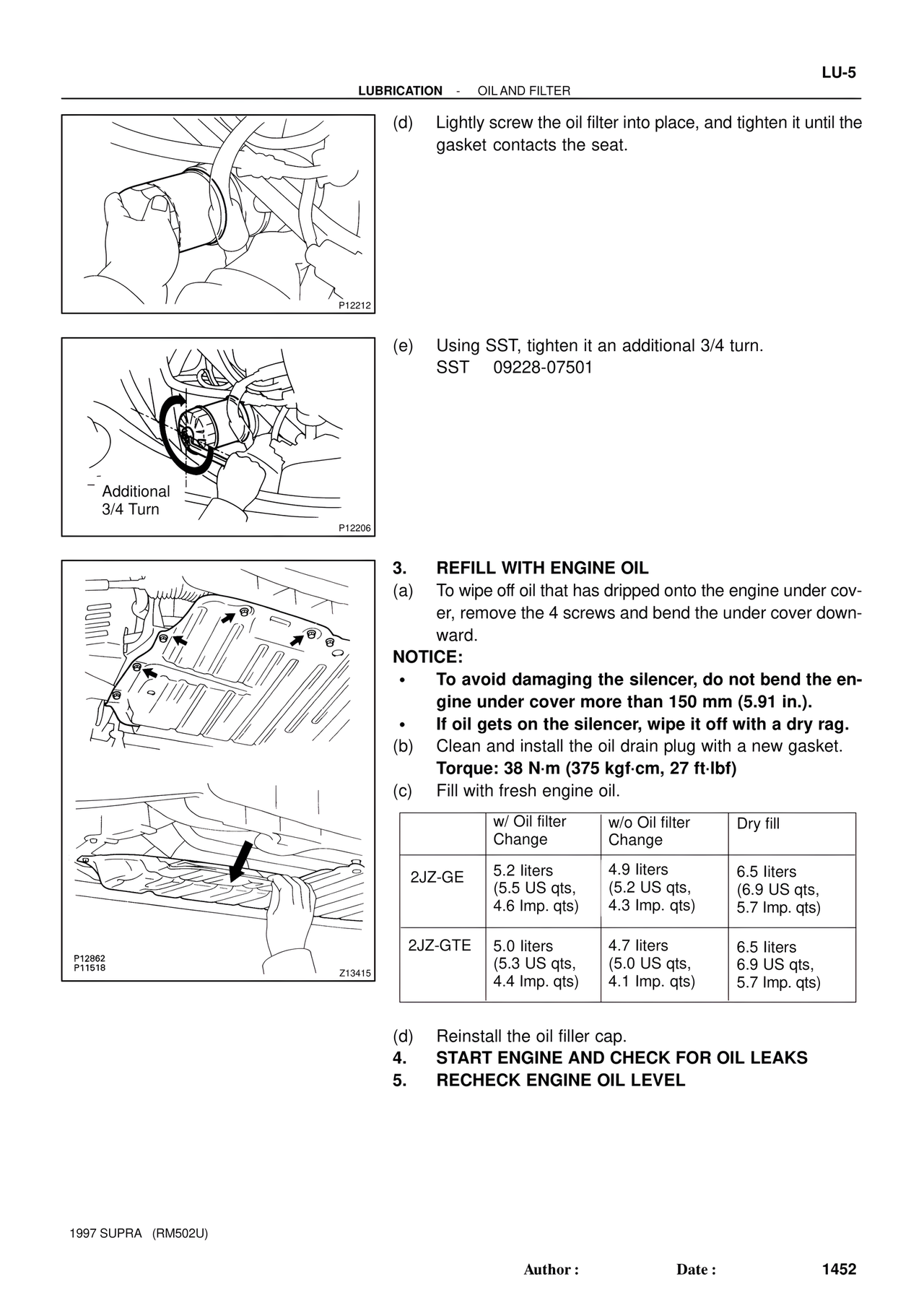

LU-5 LUBRICATION - OIL AND FILTER P12212 (d) Lightly screw the oil filter into place, and tighten it until the gasket contacts the seat. Additional 3/4 Turn P12206 (e) Using SST, tighten it an additional 3/4 turn. SST 09228-07501 P12862 P11518 Z13415 3. REFILL WITH ENGINE OIL (a) To wipe off oil that has dripped onto the engine under cover, remove the 4 screws and bend the under cover downward. NOTICE: • To avoid damaging the silencer, do not bend the engine under cover more than 150 mm (5.91 in.). • If oil gets on the silencer, wipe it off with a dry rag. (b) Clean and install the oil drain plug with a new gasket. Torque: 38 N·m (375 kgf·cm, 27 ft·lbf) (c) Fill with fresh engine oil. w/ Oil filter Change | w/o Oil filter Change | Dry fill 2JZ-GE | 5.2 liters (5.5 US qts, 4.6 Imp. qts) | 4.9 liters (5.2 US qts, 4.3 Imp. qts) | 6.5 liters (6.9 US qts, 5.7 Imp. qts) 2JZ-GTE | 5.0 liters (5.3 US qts, 4.4 Imp. qts) | 4.7 liters (5.0 US qts, 4.1 Imp. qts) | 6.5 liters 6.9 US qts, 5.7 Imp. qts) (d) Reinstall the oil filler cap. 4. START ENGINE AND CHECK FOR OIL LEAKS 5. RECHECK ENGINE OIL LEVEL 1997 SUPRA (RM502U) Author : Date : 1452
