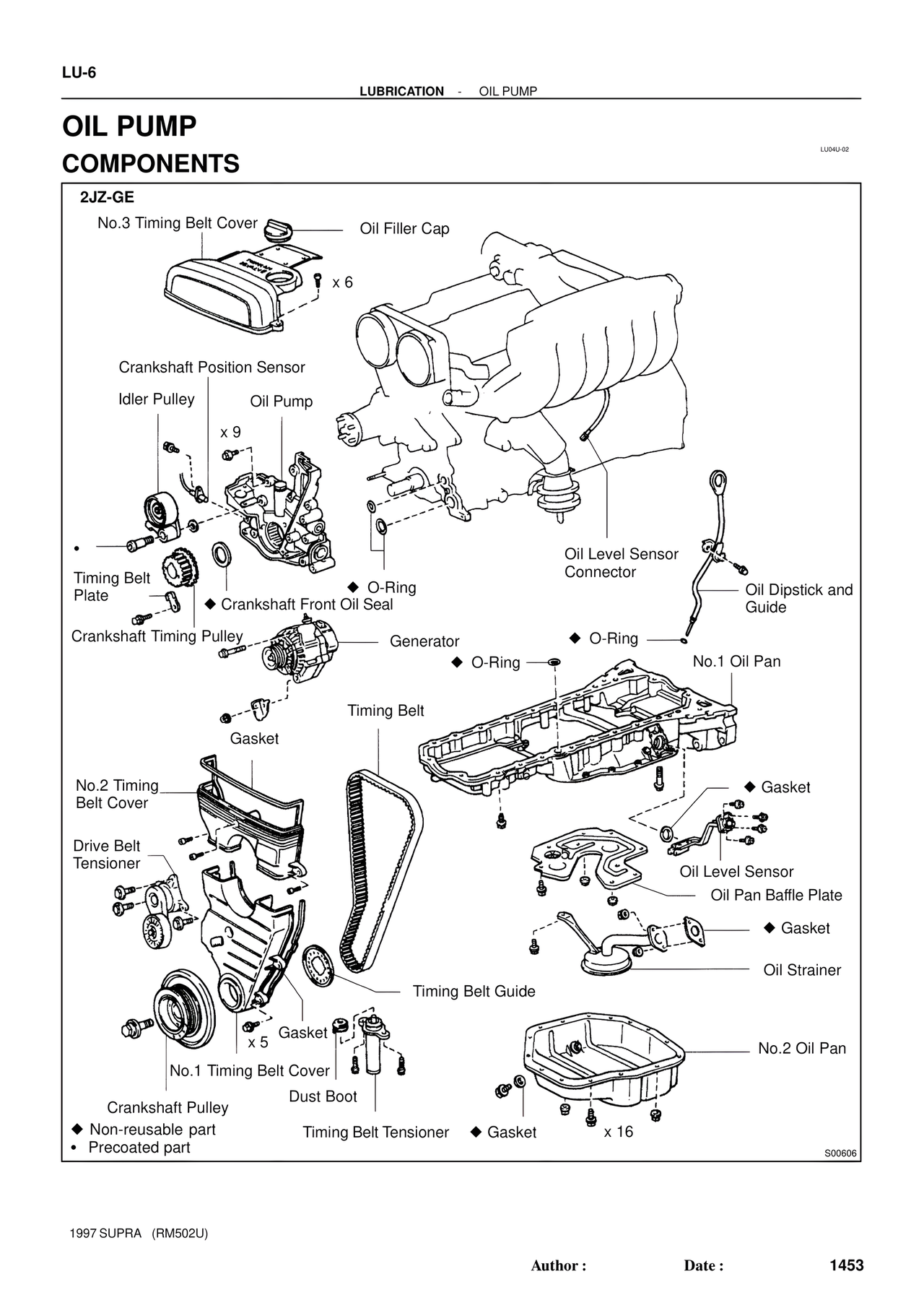

LU-6 LUBRICATION - OIL PUMP OIL PUMP COMPONENTS LU04U-02 2JZ-GE No.3 Timing Belt Cover Oil Filler Cap x 6 Crankshaft Position Sensor Idler Pulley Oil Pump x 9 Timing Belt Plate ♦ O-Ring ♦ Crankshaft Front Oil Seal Crankshaft Timing Pulley Generator Gasket No.2 Timing Belt Cover Timing Belt Drive Belt Tensioner Timing Belt Guide x 5 Gasket No.1 Timing Belt Cover Crankshaft Pulley Dust Boot Timing Belt Tensioner ♦ Gasket ♦ Non-reusable part • Precoated part Oil Level Sensor Connector Oil Dipstick and Guide ♦ O-Ring ♦ O-Ring No.1 Oil Pan ♦ Gasket Oil Level Sensor Oil Pan Baffle Plate ♦ Gasket Oil Strainer No.2 Oil Pan x 16 S00606 1997 SUPRA (RM502U) Author : Date : 1453
