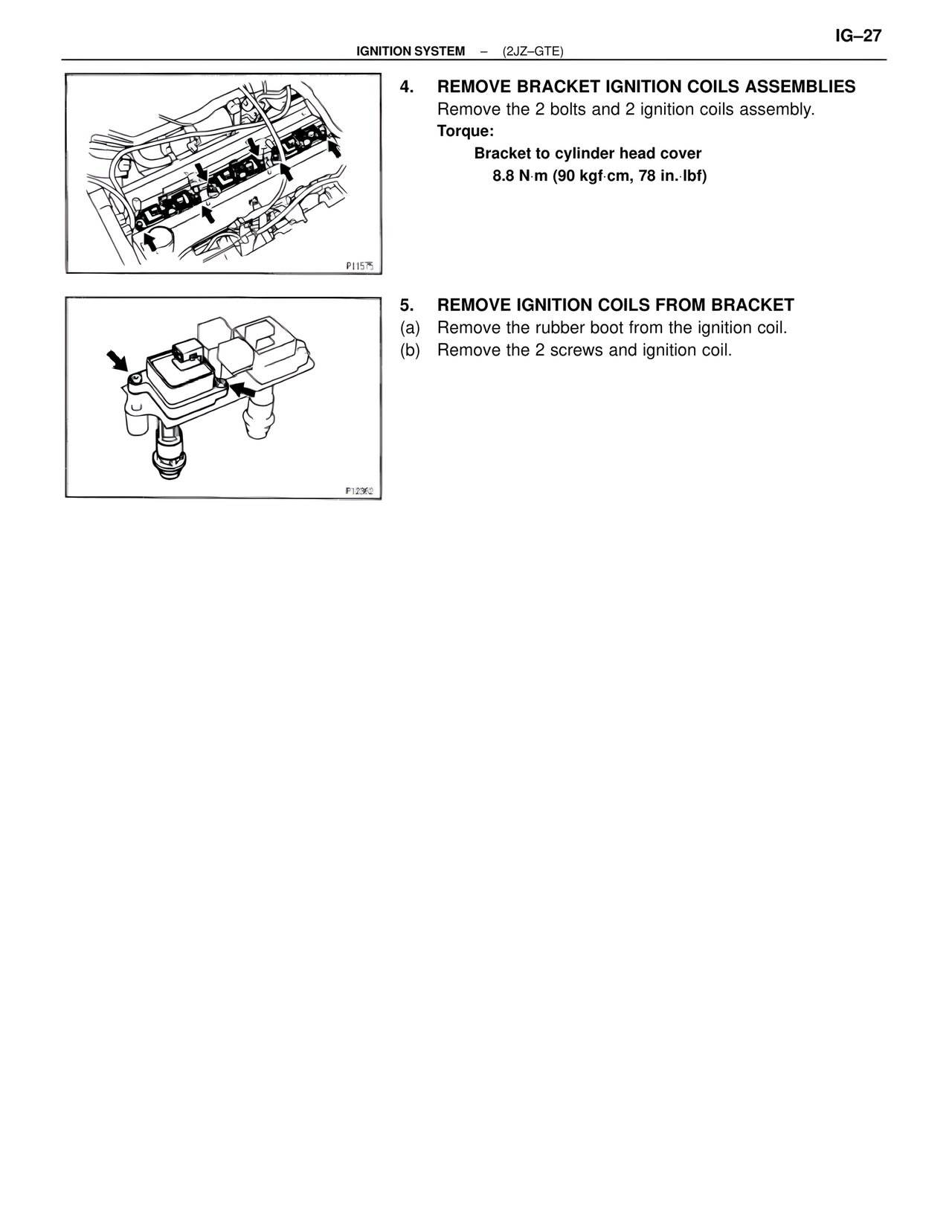

IG–27
IGNITION SYSTEM – (2JZ–GTE)
4. REMOVE BRACKET IGNITION COILS ASSEMBLIES
Remove the 2 bolts and 2 ignition coils assembly.
Torque:
Bracket to cylinder head cover
8.8 N·m (90 kgf·cm, 78 in.·lbf)
P11575
5. REMOVE IGNITION COILS FROM BRACKET
(a) Remove the rubber boot from the ignition coil.
(b) Remove the 2 screws and ignition coil.
P12362
