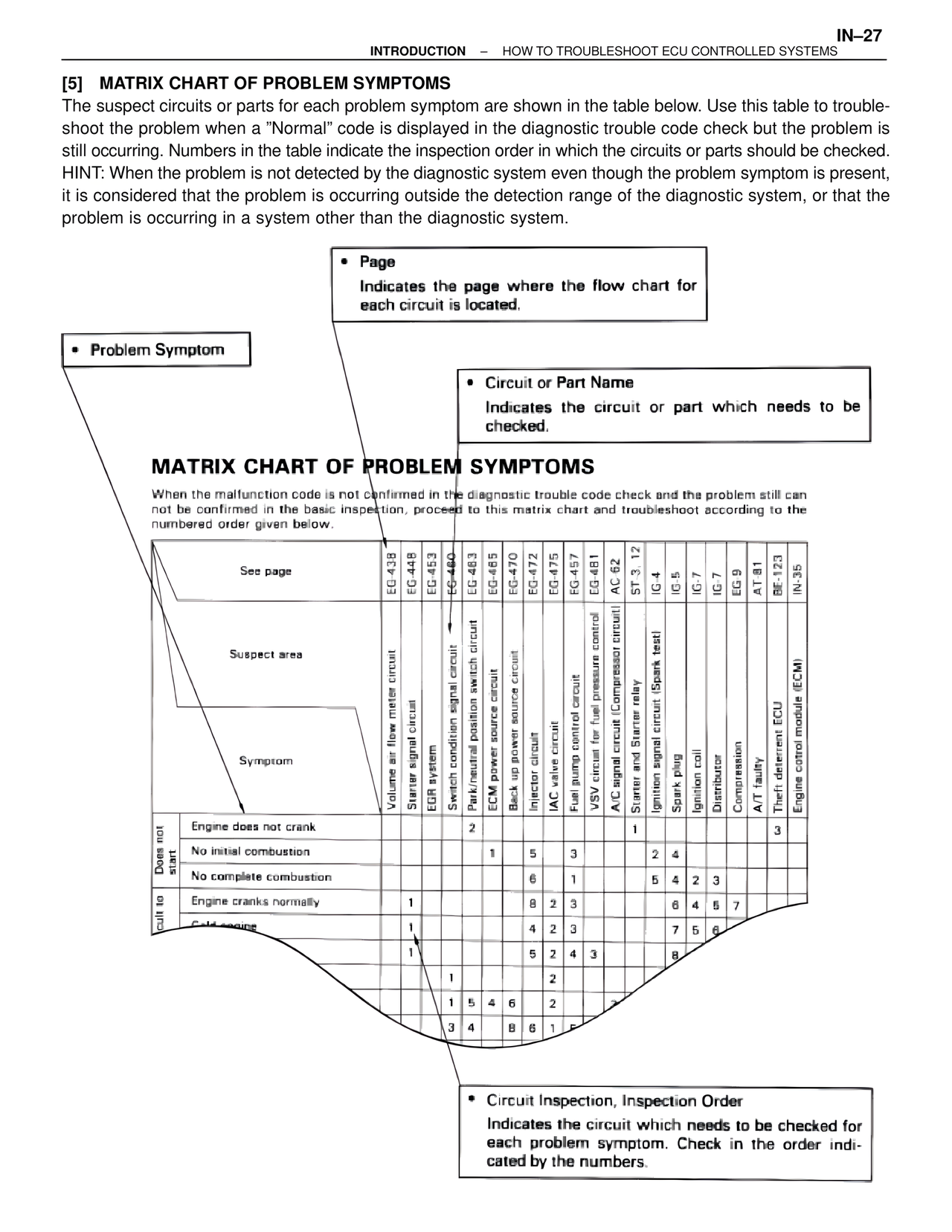

[5] MATRIX CHART OF PROBLEM SYMPTOMS
The suspect circuits or parts for each problem symptom are shown in the table below. Use this table to trouble-shoot the problem when a "Normal" code is displayed in the diagnostic trouble code check but the problem is still occurring. Numbers in the table indicate the inspection order in which the circuits or parts should be checked.
HINT: When the problem is not detected by the diagnostic system even though the problem symptom is present, it is considered that the problem is occurring outside the detection range of the diagnostic system, or that the problem is occurring in a system other than the diagnostic system.
• Page
Indicates the page where the flow chart for each circuit is located.
• Problem Symptom
• Circuit or Part Name
Indicates the circuit or part which needs to be checked.
MATRIX CHART OF PROBLEM SYMPTOMS
When the malfunction code is not confirmed in the diagnostic trouble code check and the problem still can not be confirmed in the basic inspection, proceed to this matrix chart and troubleshoot according to the numbered order given below.
See page
EG-438
EG-448
EG-453
EG-480
EG-463
EG-465
EG-470
EG-472
EG-475
EG-457
EG-481
AC-62
ST-3, 12
IG-4
IG-5
IG-7
EG-9
AT-81
BE-123
IN-35
Suspect area
Volume air flow meter circuit
Starter signal circuit
EGR system
Switch condition signal circuit
Park/neutral position switch circuit
ECM power source circuit
Back up power source circuit
Injector circuit
IAC valve circuit
Fuel pump control circuit
VSV circuit for fuel pressure control
A/C signal circuit (Compressor circuit)
Starter and Starter relay
Ignition signal circuit (Spark test)
Spark plug
Ignition coil
Distributor
Compression
A/T faulty
Theft deterrent ECU
Engine control module (ECM)
Symptom
Does not start
Engine does not crank
2
1
3
No initial combustion
1
5
3
2
4
No complete combustion
6
1
5
4
2
3
cult to
Engine cranks normally
1
8
2
3
6
4
5
7
Cold engine
1
4
2
3
7
5
6
1
5
2
4
3
8
1
2
1
5
4
6
2
3
4
8
6
1
2
5
3
4
8
6
1
• Circuit Inspection, Inspection Order
Indicates the circuit which needs to be checked for each problem symptom. Check in the order indicated by the numbers.
