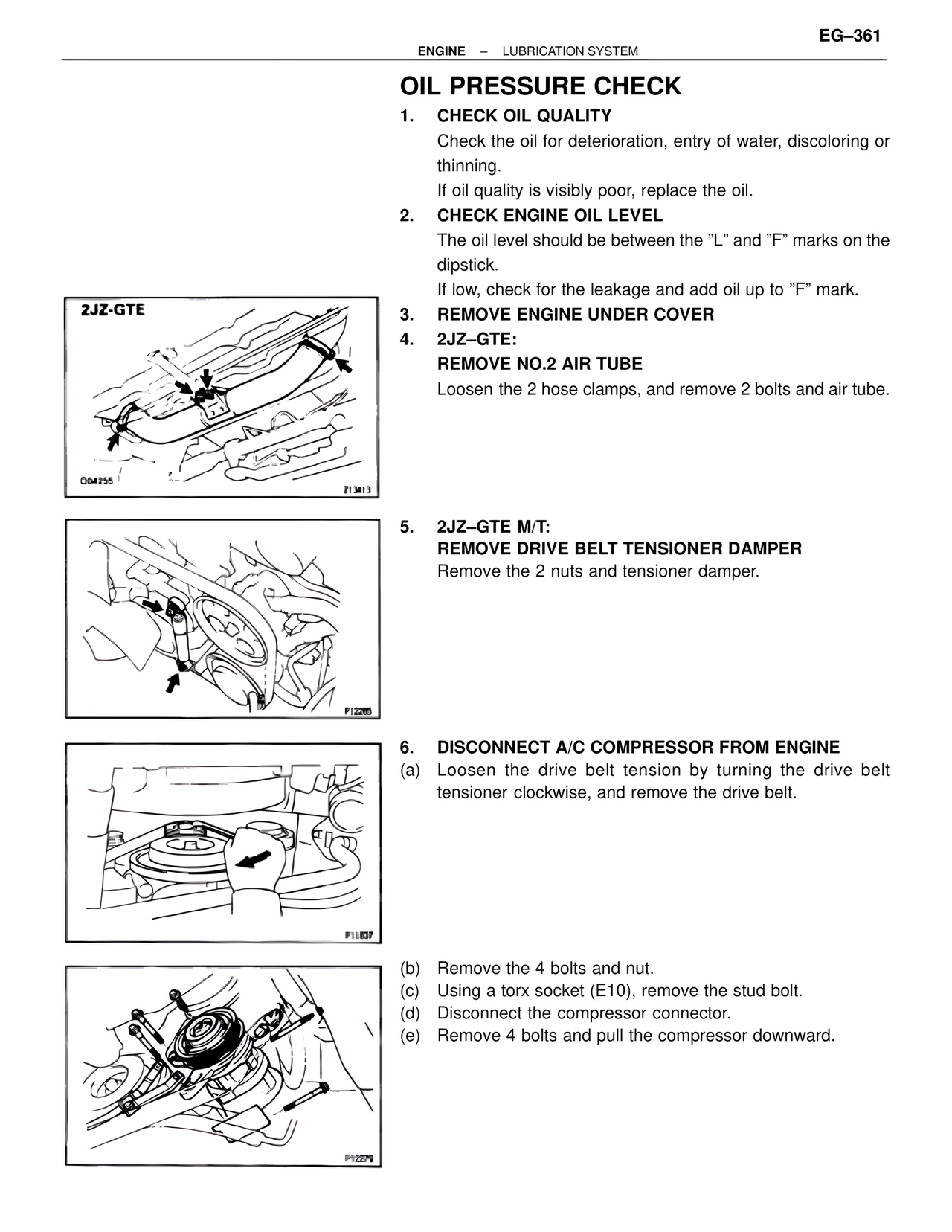

OIL PRESSURE CHECK
1. CHECK OIL QUALITY
Check the oil for deterioration, entry of water, discoloring or thinning.
If oil quality is visibly poor, replace the oil.
2. CHECK ENGINE OIL LEVEL
The oil level should be between the "L" and "F" marks on the dipstick.
If low, check for the leakage and add oil up to "F" mark.
3. REMOVE ENGINE UNDER COVER
4. 2JZ–GTE:
REMOVE NO.2 AIR TUBE
Loosen the 2 hose clamps, and remove 2 bolts and air tube.
2JZ-GTE
O64255
Z13413
5. 2JZ–GTE M/T:
REMOVE DRIVE BELT TENSIONER DAMPER
Remove the 2 nuts and tensioner damper.
P12205
6. DISCONNECT A/C COMPRESSOR FROM ENGINE
(a) Loosen the drive belt tension by turning the drive belt tensioner clockwise, and remove the drive belt.
P11837
(b) Remove the 4 bolts and nut.
(c) Using a torx socket (E10), remove the stud bolt.
(d) Disconnect the compressor connector.
(e) Remove 4 bolts and pull the compressor downward.
P12279
