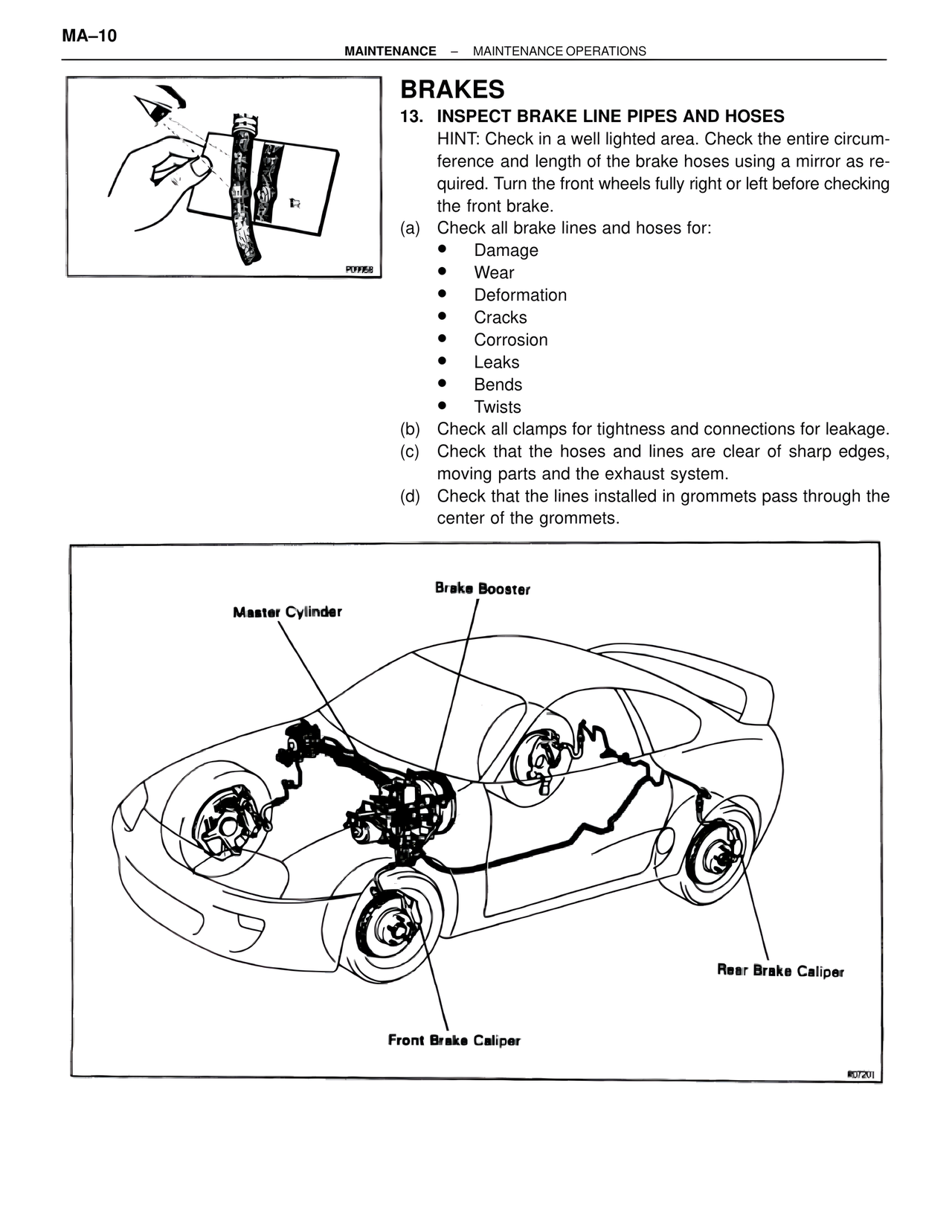

MA–10 MAINTENANCE – MAINTENANCE OPERATIONS BRAKES 13. INSPECT BRAKE LINE PIPES AND HOSES HINT: Check in a well lighted area. Check the entire circumference and length of the brake hoses using a mirror as required. Turn the front wheels fully right or left before checking the front brake. (a) Check all brake lines and hoses for: • Damage • Wear • Deformation • Cracks • Corrosion • Leaks • Bends • Twists (b) Check all clamps for tightness and connections for leakage. (c) Check that the hoses and lines are clear of sharp edges, moving parts and the exhaust system. (d) Check that the lines installed in grommets pass through the center of the grommets. Brake Booster Master Cylinder Rear Brake Caliper Front Brake Caliper P09958 807201
