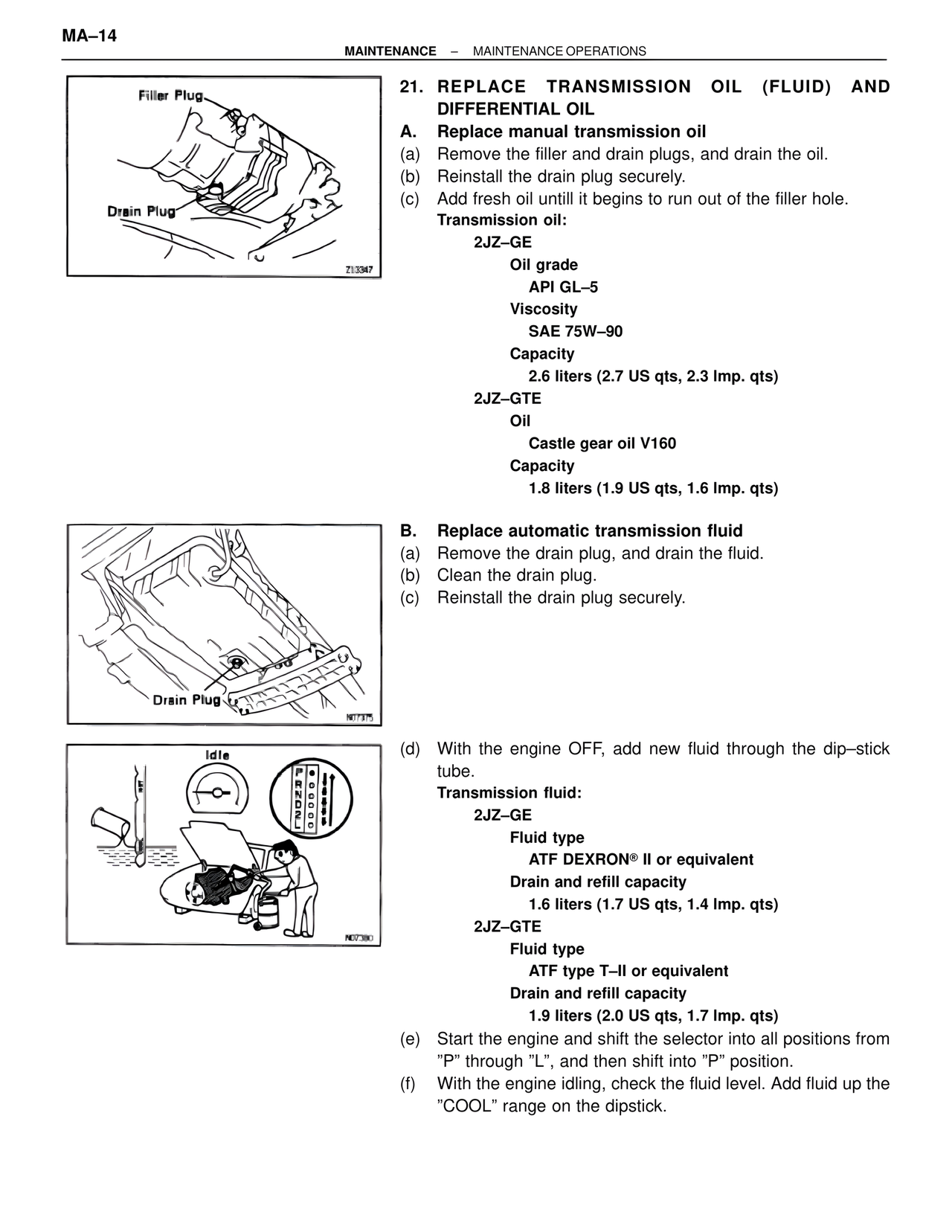

MA–14
MAINTENANCE – MAINTENANCE OPERATIONS
Filler Plug
Drain Plug
Z13347
21. REPLACE TRANSMISSION OIL (FLUID) AND DIFFERENTIAL OIL
A. Replace manual transmission oil
(a) Remove the filler and drain plugs, and drain the oil.
(b) Reinstall the drain plug securely.
(c) Add fresh oil untill it begins to run out of the filler hole.
Transmission oil:
2JZ–GE
Oil grade
API GL–5
Viscosity
SAE 75W–90
Capacity
2.6 liters (2.7 US qts, 2.3 Imp. qts)
2JZ–GTE
Oil
Castle gear oil V160
Capacity
1.8 liters (1.9 US qts, 1.6 Imp. qts)
Drain Plug
N07375
B. Replace automatic transmission fluid
(a) Remove the drain plug, and drain the fluid.
(b) Clean the drain plug.
(c) Reinstall the drain plug securely.
Idle
N07380
(d) With the engine OFF, add new fluid through the dip–stick tube.
Transmission fluid:
2JZ–GE
Fluid type
ATF DEXRON® II or equivalent
Drain and refill capacity
1.6 liters (1.7 US qts, 1.4 Imp. qts)
2JZ–GTE
Fluid type
ATF type T–II or equivalent
Drain and refill capacity
1.9 liters (2.0 US qts, 1.7 Imp. qts)
(e) Start the engine and shift the selector into all positions from "P" through "L", and then shift into "P" position.
(f) With the engine idling, check the fluid level. Add fluid up the "COOL" range on the dipstick.
