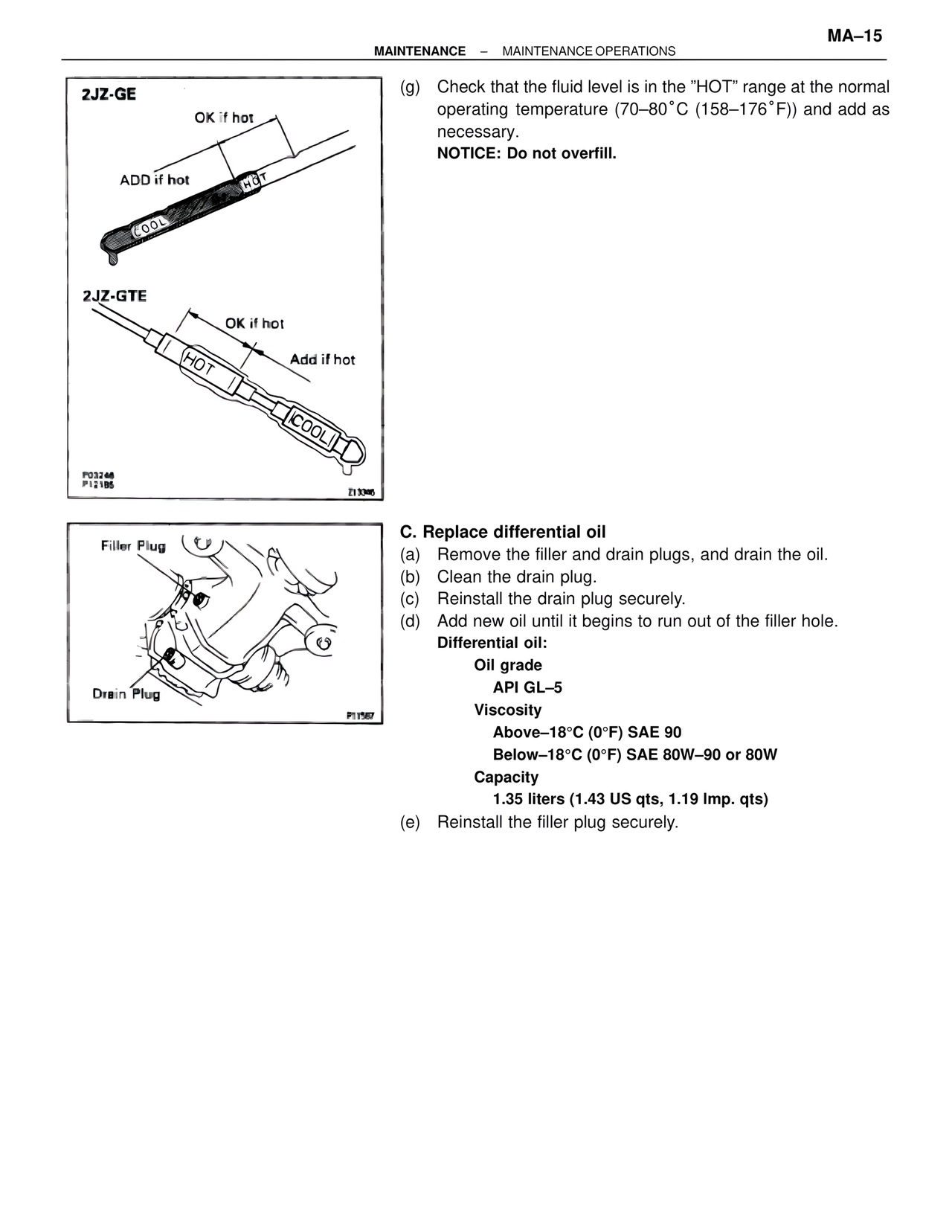

MA–15
MAINTENANCE – MAINTENANCE OPERATIONS
2JZ-GE
OK if hot
ADD if hot
HOT
COOL
2JZ-GTE
OK if hot
Add if hot
HOT
COOL
P03246
P12185
Z13045
(g) Check that the fluid level is in the "HOT" range at the normal
operating temperature (70–80°C (158–176°F)) and add as
necessary.
NOTICE: Do not overfill.
Filler Plug
Drain Plug
P11567
C. Replace differential oil
(a) Remove the filler and drain plugs, and drain the oil.
(b) Clean the drain plug.
(c) Reinstall the drain plug securely.
(d) Add new oil until it begins to run out of the filler hole.
Differential oil:
Oil grade
API GL–5
Viscosity
Above–18°C (0°F) SAE 90
Below–18°C (0°F) SAE 80W–90 or 80W
Capacity
1.35 liters (1.43 US qts, 1.19 Imp. qts)
(e) Reinstall the filler plug securely.
