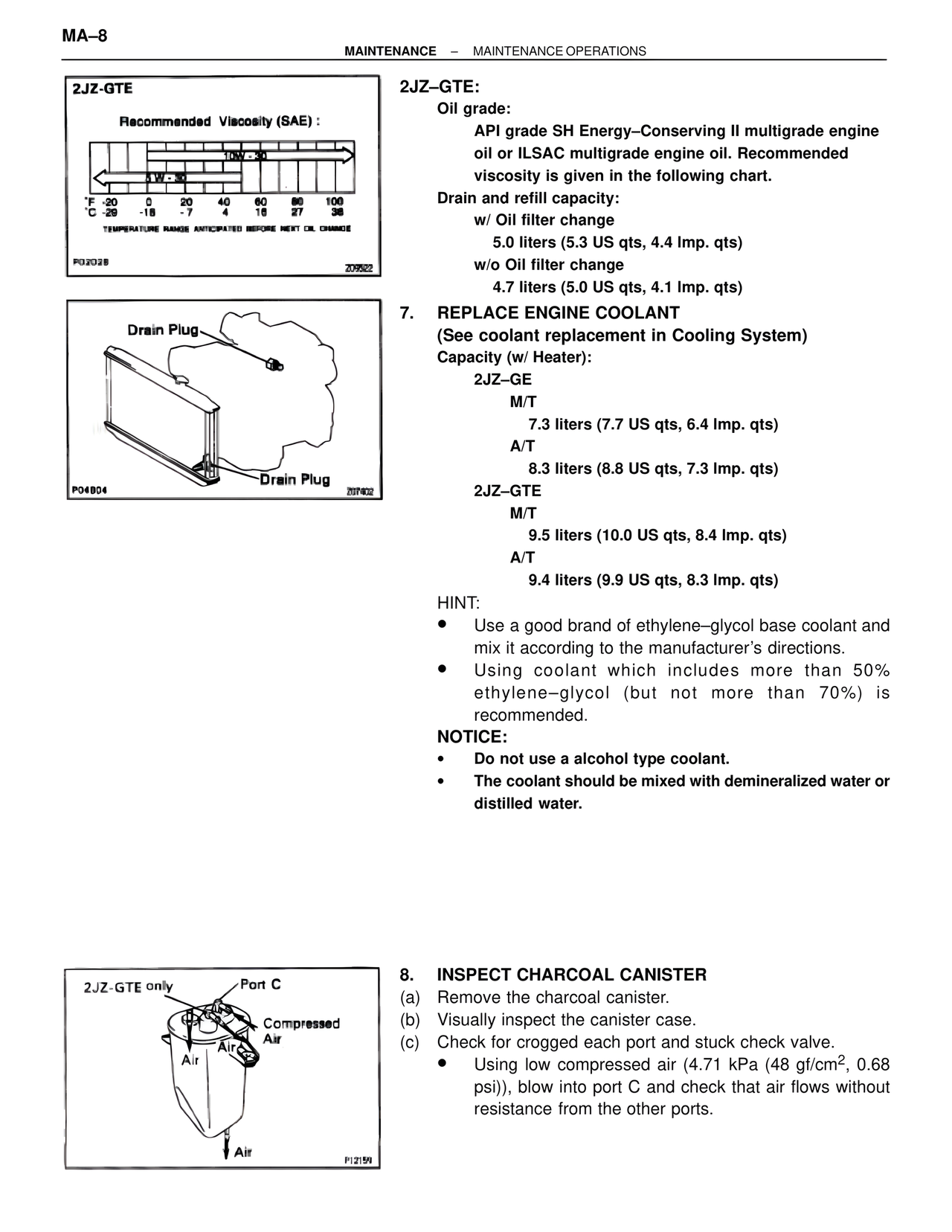

MA–8 MAINTENANCE – MAINTENANCE OPERATIONS 2JZ-GTE Recommended Viscosity (SAE) : 10W-30 5W-30 °F -20 0 20 40 60 80 100 °C -29 -18 -7 4 16 27 38 TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE P02028 Z09522 Drain Plug Drain Plug P04804 Z07402 2JZ–GTE: Oil grade: API grade SH Energy–Conserving II multigrade engine oil or ILSAC multigrade engine oil. Recommended viscosity is given in the following chart. Drain and refill capacity: w/ Oil filter change 5.0 liters (5.3 US qts, 4.4 Imp. qts) w/o Oil filter change 4.7 liters (5.0 US qts, 4.1 Imp. qts) 7. REPLACE ENGINE COOLANT (See coolant replacement in Cooling System) Capacity (w/ Heater): 2JZ–GE M/T 7.3 liters (7.7 US qts, 6.4 Imp. qts) A/T 8.3 liters (8.8 US qts, 7.3 Imp. qts) 2JZ–GTE M/T 9.5 liters (10.0 US qts, 8.4 Imp. qts) A/T 9.4 liters (9.9 US qts, 8.3 Imp. qts) HINT: • Use a good brand of ethylene–glycol base coolant and mix it according to the manufacturer's directions. • Using coolant which includes more than 50% ethylene–glycol (but not more than 70%) is recommended. NOTICE: • Do not use a alcohol type coolant. • The coolant should be mixed with demineralized water or distilled water. 2JZ-GTE only Port C Compressed Air Air Air P12159 8. INSPECT CHARCOAL CANISTER (a) Remove the charcoal canister. (b) Visually inspect the canister case. (c) Check for crogged each port and stuck check valve. • Using low compressed air (4.71 kPa (48 gf/cm2, 0.68 psi)), blow into port C and check that air flows without resistance from the other ports.
