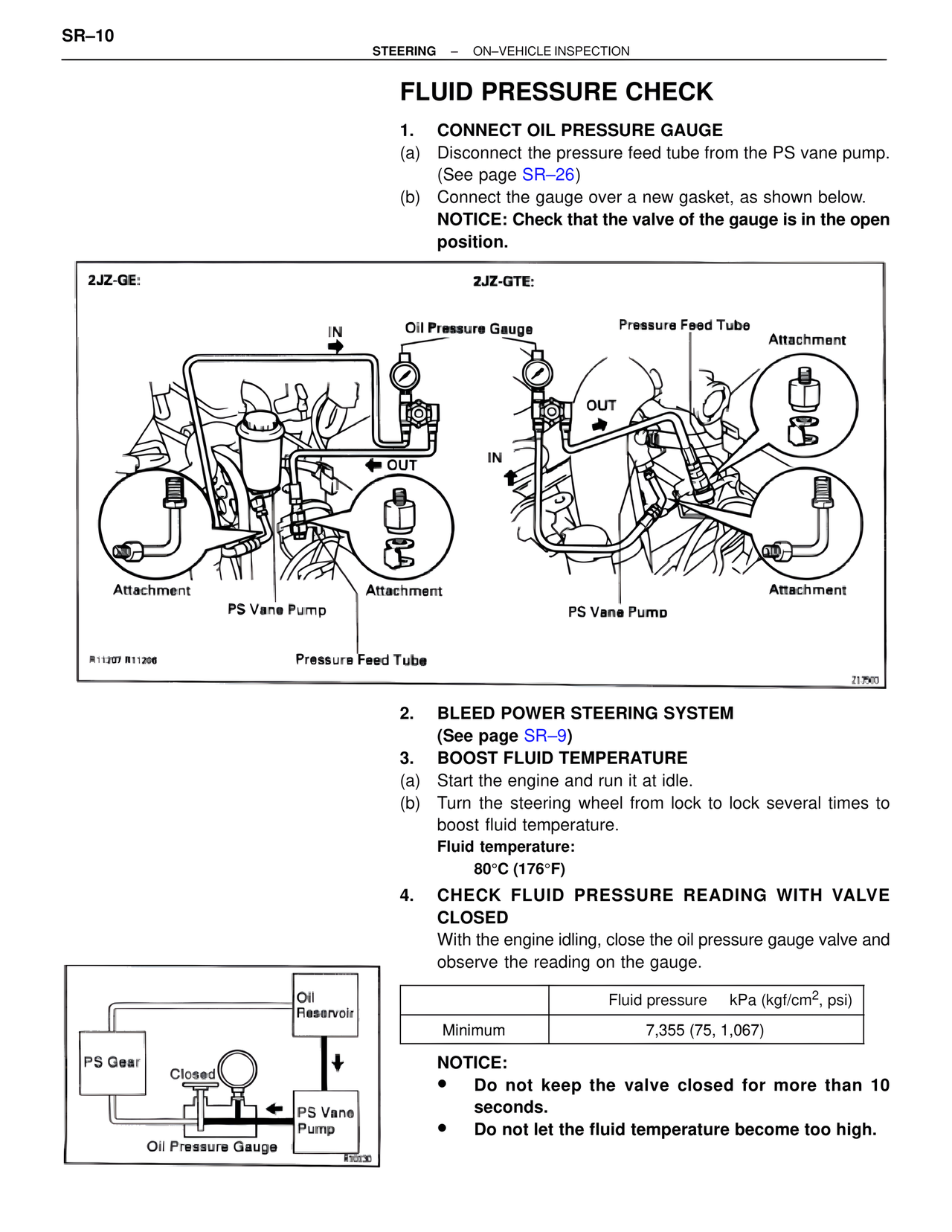

SR–10
STEERING – ON–VEHICLE INSPECTION
FLUID PRESSURE CHECK
1. CONNECT OIL PRESSURE GAUGE
(a) Disconnect the pressure feed tube from the PS vane pump.
(See page SR–26)
(b) Connect the gauge over a new gasket, as shown below.
NOTICE: Check that the valve of the gauge is in the open
position.
2JZ-GE:
2JZ-GTE:
IN
Oil Pressure Gauge
Pressure Feed Tube
Attachment
OUT
IN
OUT
Attachment
PS Vane Pump
Attachment
PS Vane Pump
Attachment
R11207 R11206
Pressure Feed Tube
Z13500
2. BLEED POWER STEERING SYSTEM
(See page SR–9)
3. BOOST FLUID TEMPERATURE
(a) Start the engine and run it at idle.
(b) Turn the steering wheel from lock to lock several times to
boost fluid temperature.
Fluid temperature:
80°C (176°F)
4. CHECK FLUID PRESSURE READING WITH VALVE
CLOSED
With the engine idling, close the oil pressure gauge valve and
observe the reading on the gauge.
Oil
Reservoir
PS Gear
Closed
PS Vane
Pump
Oil Pressure Gauge
R50130
Fluid pressure kPa (kgf/cm2, psi)
Minimum 7,355 (75, 1,067)
NOTICE:
• Do not keep the valve closed for more than 10
seconds.
• Do not let the fluid temperature become too high.
