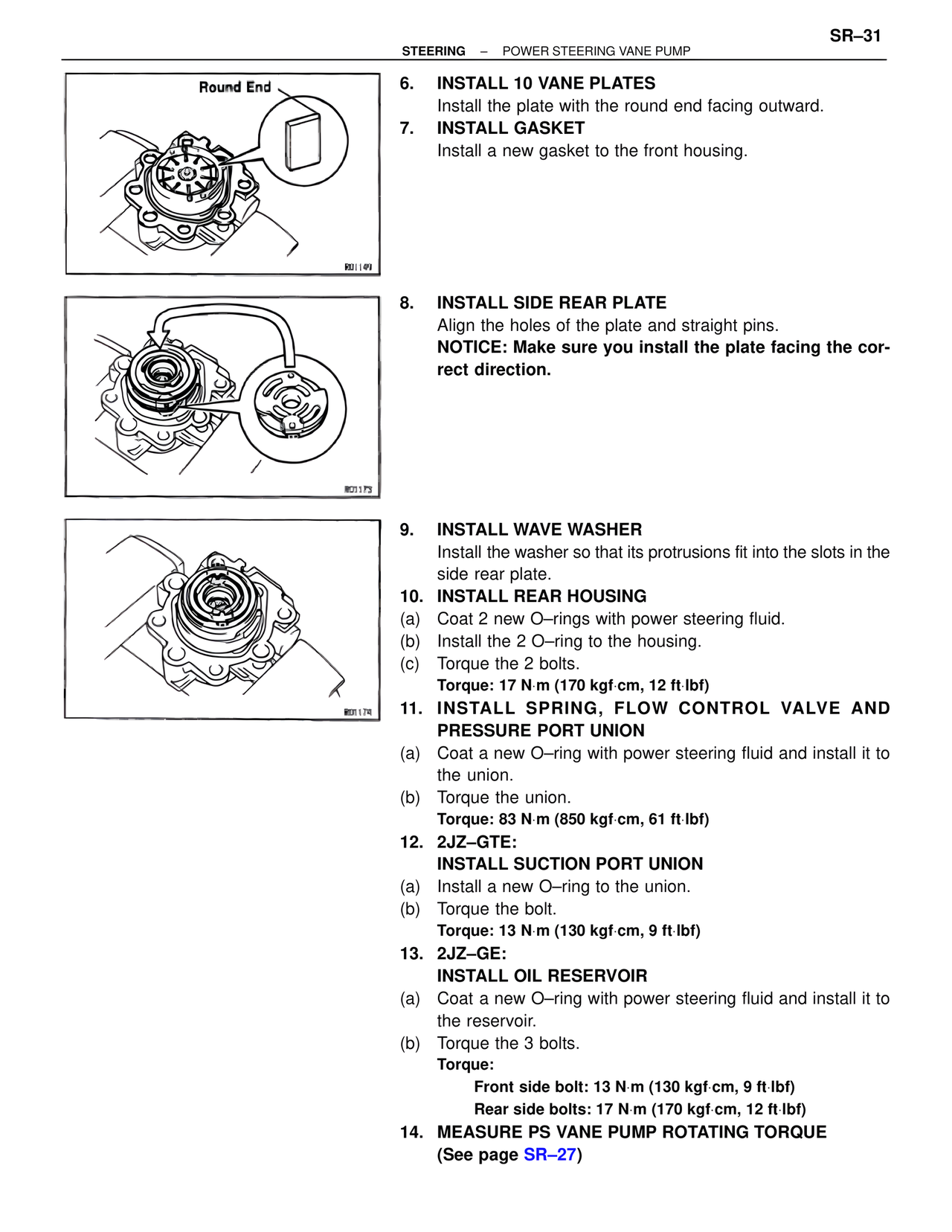

SR–31
STEERING – POWER STEERING VANE PUMP
Round End
R01149
6. INSTALL 10 VANE PLATES
Install the plate with the round end facing outward.
7. INSTALL GASKET
Install a new gasket to the front housing.
R00173
8. INSTALL SIDE REAR PLATE
Align the holes of the plate and straight pins.
NOTICE: Make sure you install the plate facing the cor-
rect direction.
R01174
9. INSTALL WAVE WASHER
Install the washer so that its protrusions fit into the slots in the
side rear plate.
10. INSTALL REAR HOUSING
(a) Coat 2 new O–rings with power steering fluid.
(b) Install the 2 O–ring to the housing.
(c) Torque the 2 bolts.
Torque: 17 N·m (170 kgf·cm, 12 ft·lbf)
11. INSTALL SPRING, FLOW CONTROL VALVE AND
PRESSURE PORT UNION
(a) Coat a new O–ring with power steering fluid and install it to
the union.
(b) Torque the union.
Torque: 83 N·m (850 kgf·cm, 61 ft·lbf)
12. 2JZ–GTE:
INSTALL SUCTION PORT UNION
(a) Install a new O–ring to the union.
(b) Torque the bolt.
Torque: 13 N·m (130 kgf·cm, 9 ft·lbf)
13. 2JZ–GE:
INSTALL OIL RESERVOIR
(a) Coat a new O–ring with power steering fluid and install it to
the reservoir.
(b) Torque the 3 bolts.
Torque:
Front side bolt: 13 N·m (130 kgf·cm, 9 ft·lbf)
Rear side bolts: 17 N·m (170 kgf·cm, 12 ft·lbf)
14. MEASURE PS VANE PUMP ROTATING TORQUE
(See page SR–27)
