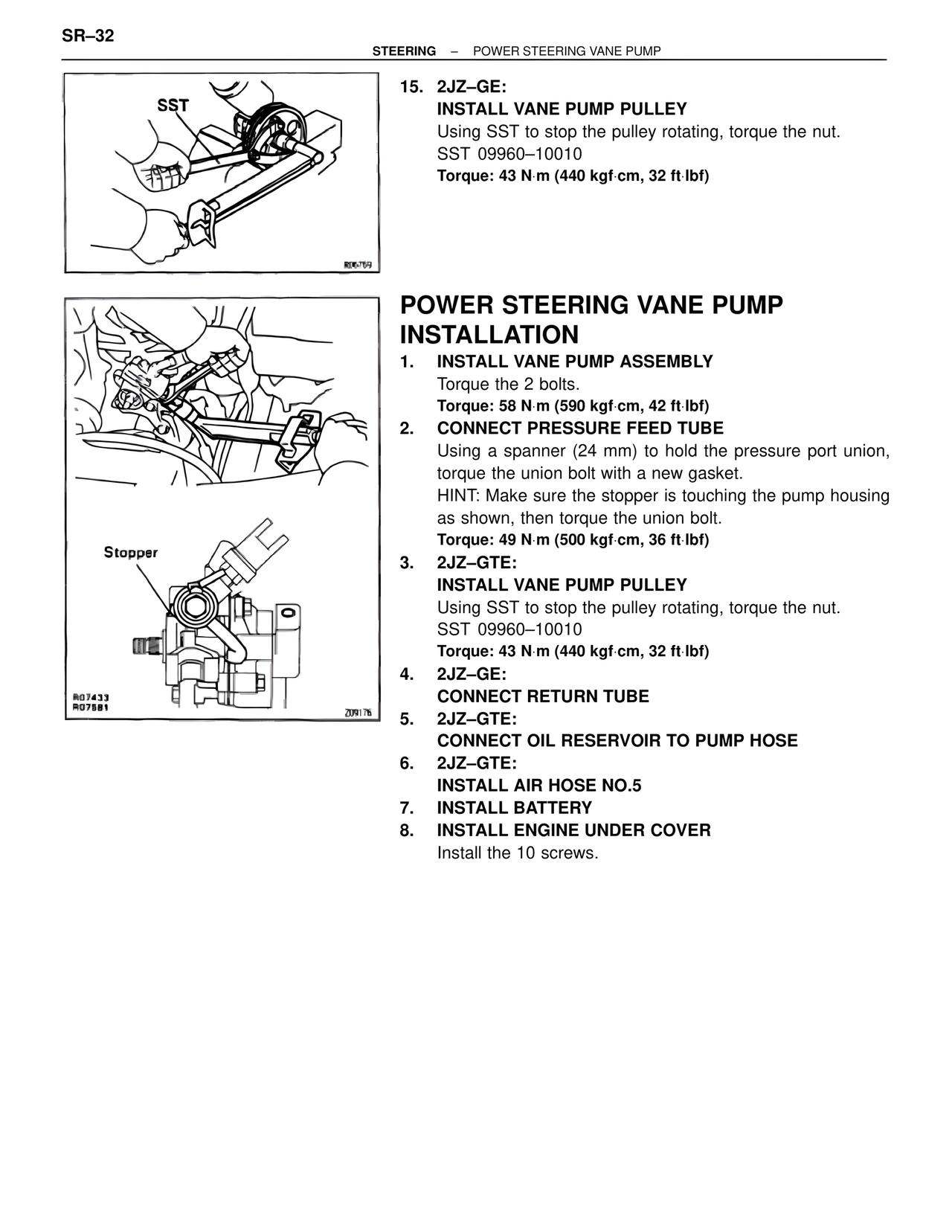

SR–32 STEERING – POWER STEERING VANE PUMP SST R06759 15. 2JZ–GE: INSTALL VANE PUMP PULLEY Using SST to stop the pulley rotating, torque the nut. SST 09960–10010 Torque: 43 N·m (440 kgf·cm, 32 ft·lbf) POWER STEERING VANE PUMP INSTALLATION 1. INSTALL VANE PUMP ASSEMBLY Torque the 2 bolts. Torque: 58 N·m (590 kgf·cm, 42 ft·lbf) 2. CONNECT PRESSURE FEED TUBE Using a spanner (24 mm) to hold the pressure port union, torque the union bolt with a new gasket. HINT: Make sure the stopper is touching the pump housing as shown, then torque the union bolt. Torque: 49 N·m (500 kgf·cm, 36 ft·lbf) 3. 2JZ–GTE: INSTALL VANE PUMP PULLEY Using SST to stop the pulley rotating, torque the nut. SST 09960–10010 Torque: 43 N·m (440 kgf·cm, 32 ft·lbf) 4. 2JZ–GE: CONNECT RETURN TUBE 5. 2JZ–GTE: CONNECT OIL RESERVOIR TO PUMP HOSE 6. 2JZ–GTE: INSTALL AIR HOSE NO.5 7. INSTALL BATTERY 8. INSTALL ENGINE UNDER COVER Install the 10 screws. Stopper R07433 R07581 209176
