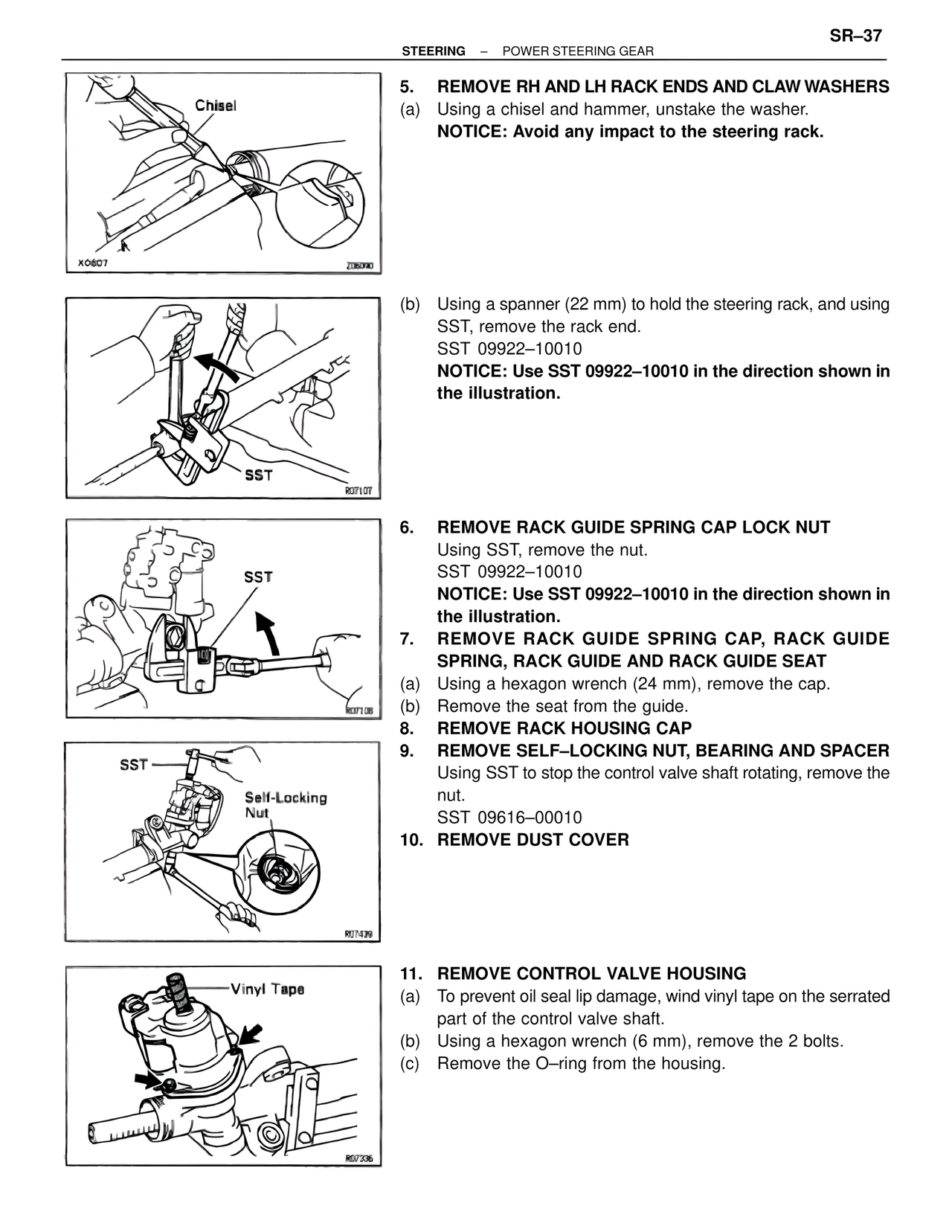

SR–37 STEERING – POWER STEERING GEAR Chisel 5. REMOVE RH AND LH RACK ENDS AND CLAW WASHERS (a) Using a chisel and hammer, unstake the washer. NOTICE: Avoid any impact to the steering rack. SST (b) Using a spanner (22 mm) to hold the steering rack, and using SST, remove the rack end. SST 09922–10010 NOTICE: Use SST 09922–10010 in the direction shown in the illustration. SST 6. REMOVE RACK GUIDE SPRING CAP LOCK NUT Using SST, remove the nut. SST 09922–10010 NOTICE: Use SST 09922–10010 in the direction shown in the illustration. 7. REMOVE RACK GUIDE SPRING CAP, RACK GUIDE SPRING, RACK GUIDE AND RACK GUIDE SEAT (a) Using a hexagon wrench (24 mm), remove the cap. (b) Remove the seat from the guide. 8. REMOVE RACK HOUSING CAP 9. REMOVE SELF–LOCKING NUT, BEARING AND SPACER Using SST to stop the control valve shaft rotating, remove the nut. SST 09616–00010 10. REMOVE DUST COVER SST Self-Locking Nut Vinyl Tape 11. REMOVE CONTROL VALVE HOUSING (a) To prevent oil seal lip damage, wind vinyl tape on the serrated part of the control valve shaft. (b) Using a hexagon wrench (6 mm), remove the 2 bolts. (c) Remove the O–ring from the housing.
