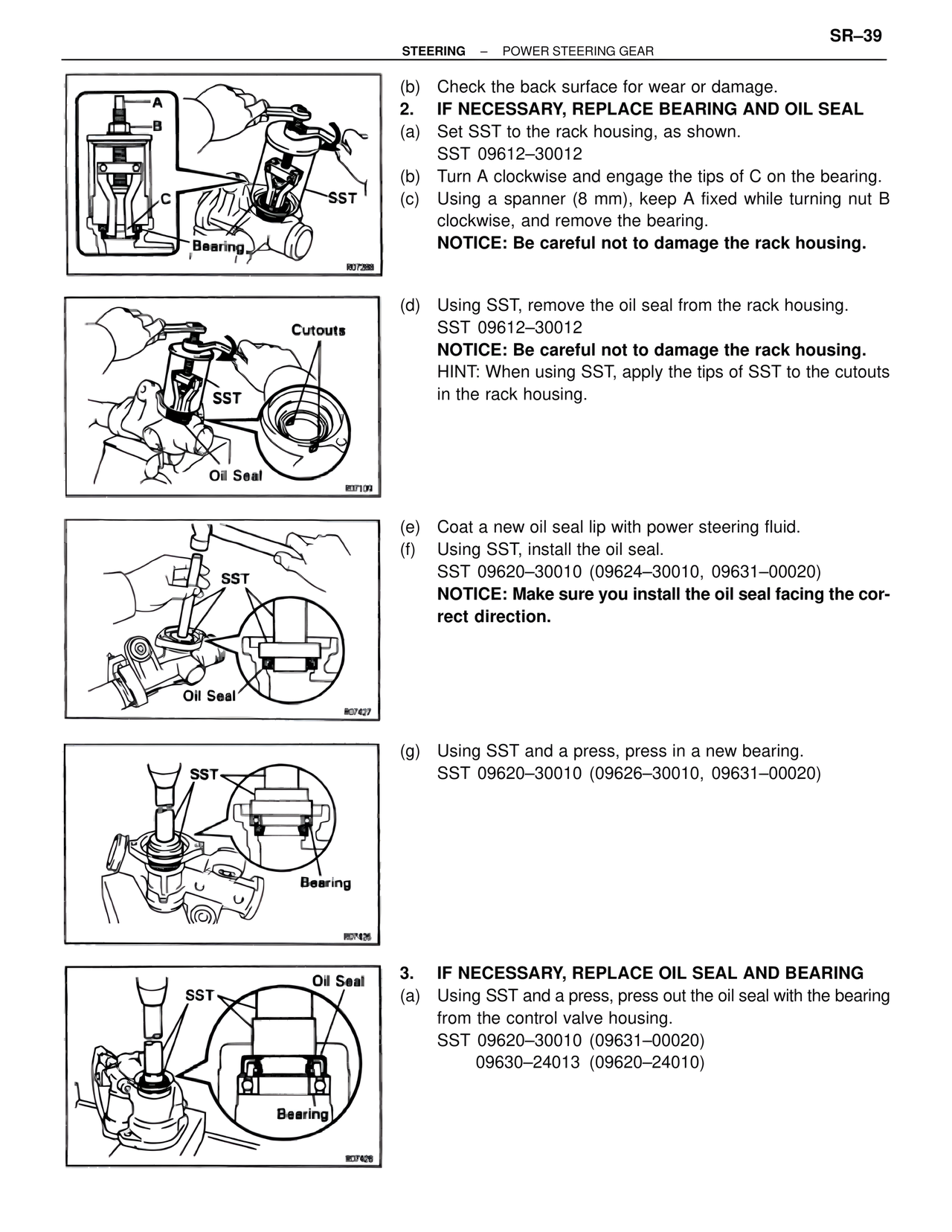

SR–39
STEERING – POWER STEERING GEAR
(b) Check the back surface for wear or damage.
2. IF NECESSARY, REPLACE BEARING AND OIL SEAL
(a) Set SST to the rack housing, as shown.
SST 09612–30012
(b) Turn A clockwise and engage the tips of C on the bearing.
(c) Using a spanner (8 mm), keep A fixed while turning nut B
clockwise, and remove the bearing.
NOTICE: Be careful not to damage the rack housing.
(d) Using SST, remove the oil seal from the rack housing.
SST 09612–30012
NOTICE: Be careful not to damage the rack housing.
HINT: When using SST, apply the tips of SST to the cutouts
in the rack housing.
Cutouts
SST
Oil Seal
(e) Coat a new oil seal lip with power steering fluid.
(f) Using SST, install the oil seal.
SST 09620–30010 (09624–30010, 09631–00020)
NOTICE: Make sure you install the oil seal facing the cor-
rect direction.
SST
Oil Seal
(g) Using SST and a press, press in a new bearing.
SST 09620–30010 (09626–30010, 09631–00020)
SST
Bearing
3. IF NECESSARY, REPLACE OIL SEAL AND BEARING
(a) Using SST and a press, press out the oil seal with the bearing
from the control valve housing.
SST 09620–30010 (09631–00020)
09630–24013 (09620–24010)
Oil Seal
SST
Bearing
