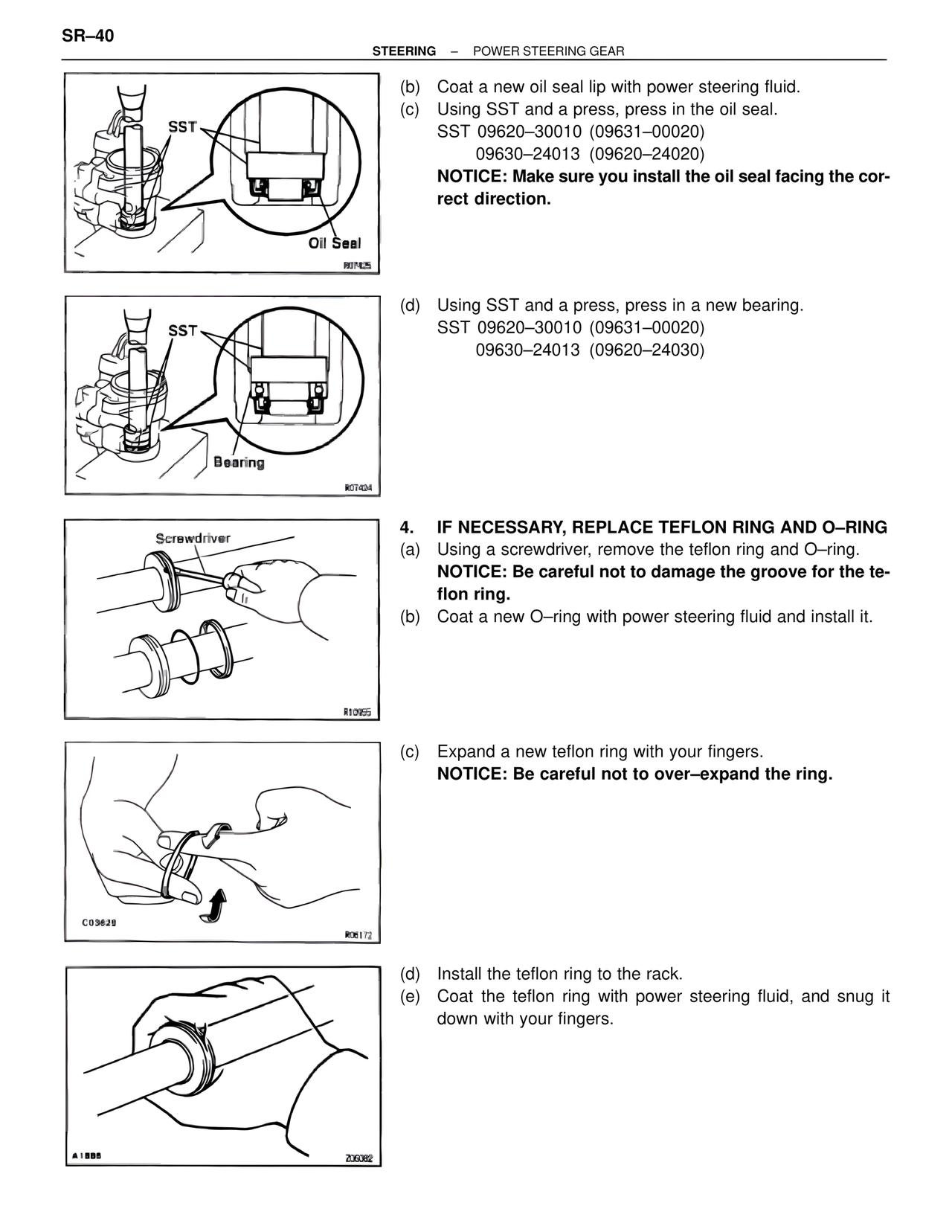

SR–40
STEERING – POWER STEERING GEAR
(b) Coat a new oil seal lip with power steering fluid.
(c) Using SST and a press, press in the oil seal.
SST 09620–30010 (09631–00020)
09630–24013 (09620–24020)
NOTICE: Make sure you install the oil seal facing the cor-
rect direction.
Oil Seal
(d) Using SST and a press, press in a new bearing.
SST 09620–30010 (09631–00020)
09630–24013 (09620–24030)
Bearing
4. IF NECESSARY, REPLACE TEFLON RING AND O–RING
(a) Using a screwdriver, remove the teflon ring and O–ring.
NOTICE: Be careful not to damage the groove for the te-
flon ring.
(b) Coat a new O–ring with power steering fluid and install it.
Screwdriver
(c) Expand a new teflon ring with your fingers.
NOTICE: Be careful not to over–expand the ring.
(d) Install the teflon ring to the rack.
(e) Coat the teflon ring with power steering fluid, and snug it
down with your fingers.
