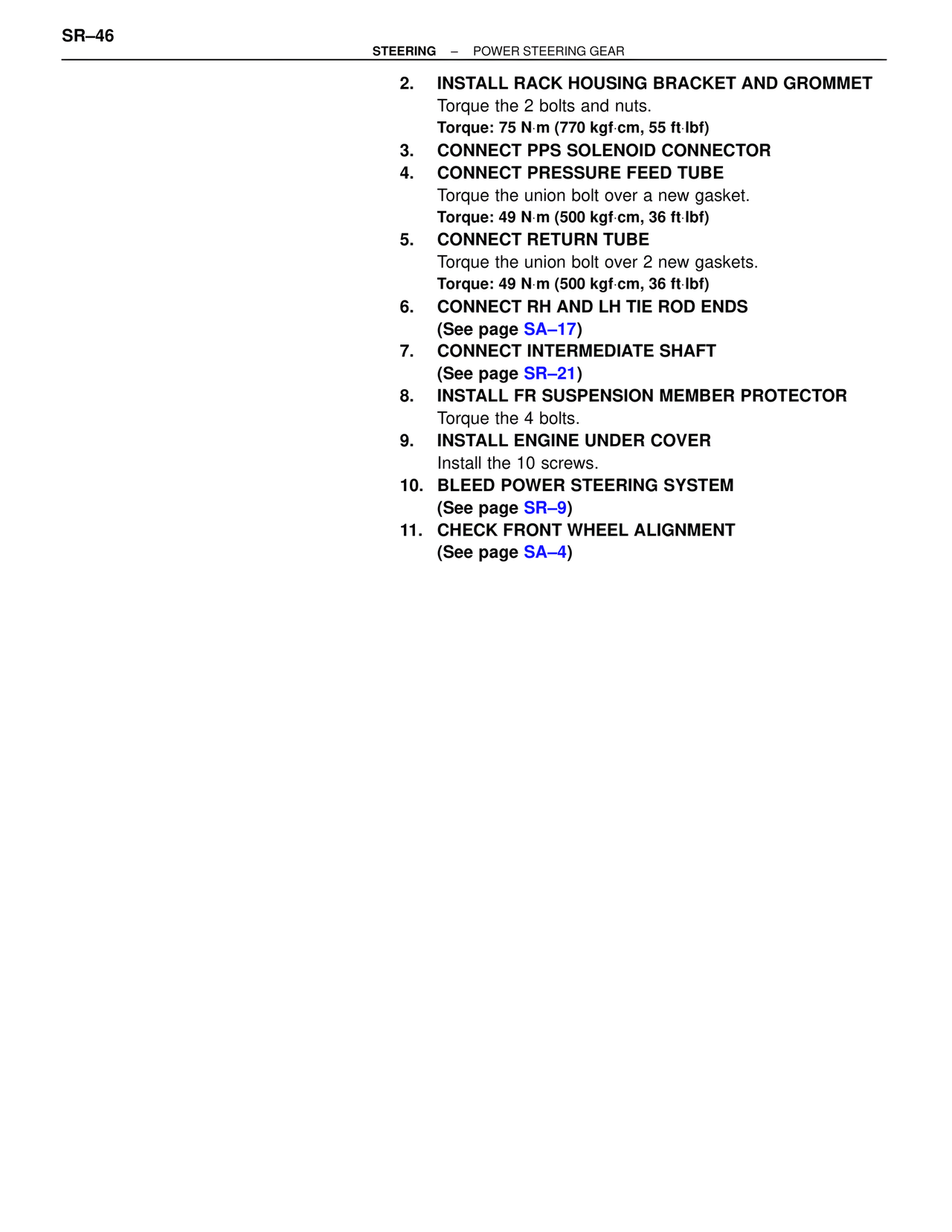

SR–46 STEERING – POWER STEERING GEAR 2. INSTALL RACK HOUSING BRACKET AND GROMMET Torque the 2 bolts and nuts. Torque: 75 N·m (770 kgf·cm, 55 ft·lbf) 3. CONNECT PPS SOLENOID CONNECTOR 4. CONNECT PRESSURE FEED TUBE Torque the union bolt over a new gasket. Torque: 49 N·m (500 kgf·cm, 36 ft·lbf) 5. CONNECT RETURN TUBE Torque the union bolt over 2 new gaskets. Torque: 49 N·m (500 kgf·cm, 36 ft·lbf) 6. CONNECT RH AND LH TIE ROD ENDS (See page SA–17) 7. CONNECT INTERMEDIATE SHAFT (See page SR–21) 8. INSTALL FR SUSPENSION MEMBER PROTECTOR Torque the 4 bolts. 9. INSTALL ENGINE UNDER COVER Install the 10 screws. 10. BLEED POWER STEERING SYSTEM (See page SR–9) 11. CHECK FRONT WHEEL ALIGNMENT (See page SA–4)
