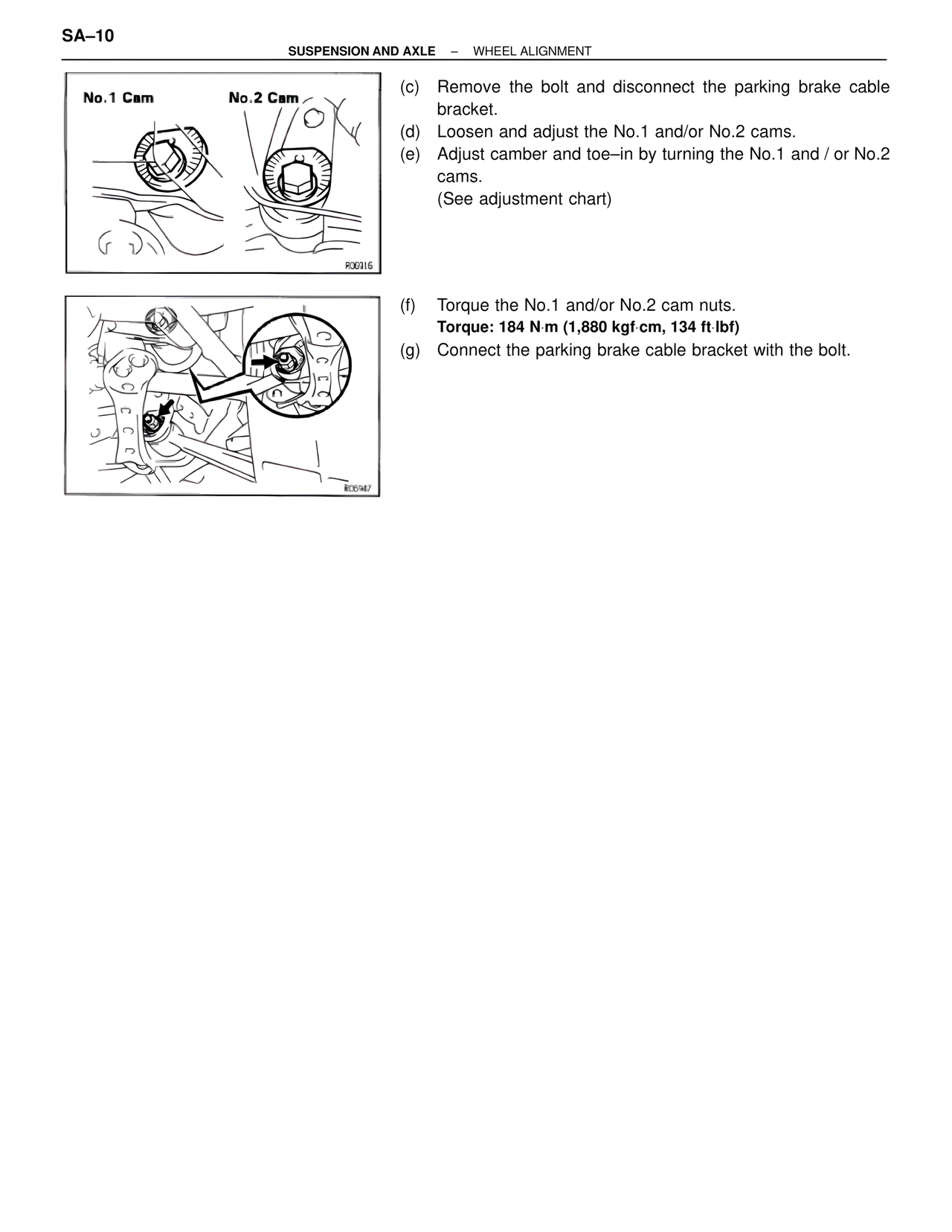

SA–10
SUSPENSION AND AXLE – WHEEL ALIGNMENT
No.1 Cam No.2 Cam
R06916
(c) Remove the bolt and disconnect the parking brake cable bracket.
(d) Loosen and adjust the No.1 and/or No.2 cams.
(e) Adjust camber and toe–in by turning the No.1 and / or No.2 cams.
(See adjustment chart)
R06947
(f) Torque the No.1 and/or No.2 cam nuts.
Torque: 184 N·m (1,880 kgf·cm, 134 ft·lbf)
(g) Connect the parking brake cable bracket with the bolt.
