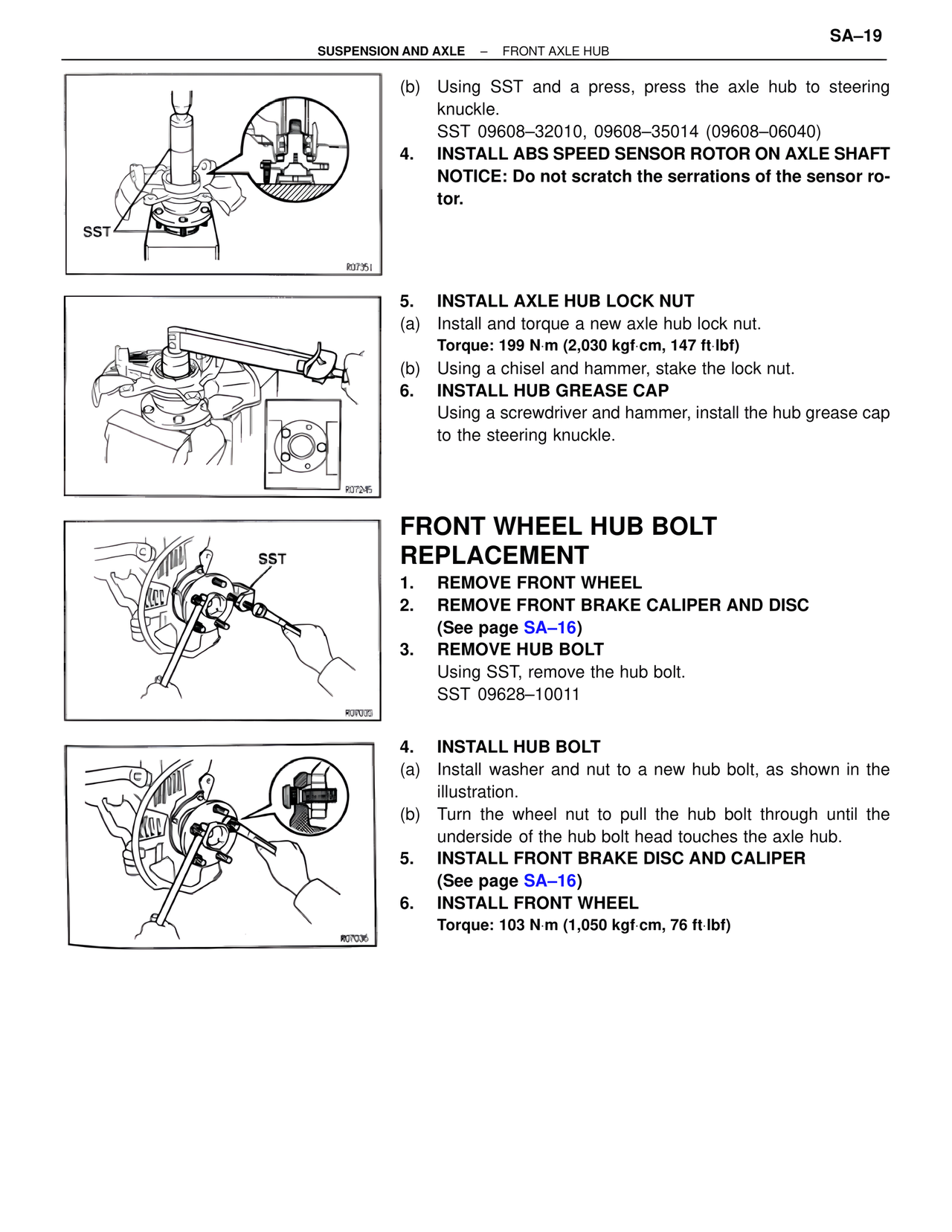

SA–19 SUSPENSION AND AXLE – FRONT AXLE HUB SST R07351 (b) Using SST and a press, press the axle hub to steering knuckle. SST 09608–32010, 09608–35014 (09608–06040) 4. INSTALL ABS SPEED SENSOR ROTOR ON AXLE SHAFT NOTICE: Do not scratch the serrations of the sensor ro-tor. R07245 5. INSTALL AXLE HUB LOCK NUT (a) Install and torque a new axle hub lock nut. Torque: 199 N·m (2,030 kgf·cm, 147 ft·lbf) (b) Using a chisel and hammer, stake the lock nut. 6. INSTALL HUB GREASE CAP Using a screwdriver and hammer, install the hub grease cap to the steering knuckle. SST R07005 FRONT WHEEL HUB BOLT REPLACEMENT 1. REMOVE FRONT WHEEL 2. REMOVE FRONT BRAKE CALIPER AND DISC (See page SA–16) 3. REMOVE HUB BOLT Using SST, remove the hub bolt. SST 09628–10011 R07036 4. INSTALL HUB BOLT (a) Install washer and nut to a new hub bolt, as shown in the illustration. (b) Turn the wheel nut to pull the hub bolt through until the underside of the hub bolt head touches the axle hub. 5. INSTALL FRONT BRAKE DISC AND CALIPER (See page SA–16) 6. INSTALL FRONT WHEEL Torque: 103 N·m (1,050 kgf·cm, 76 ft·lbf)
