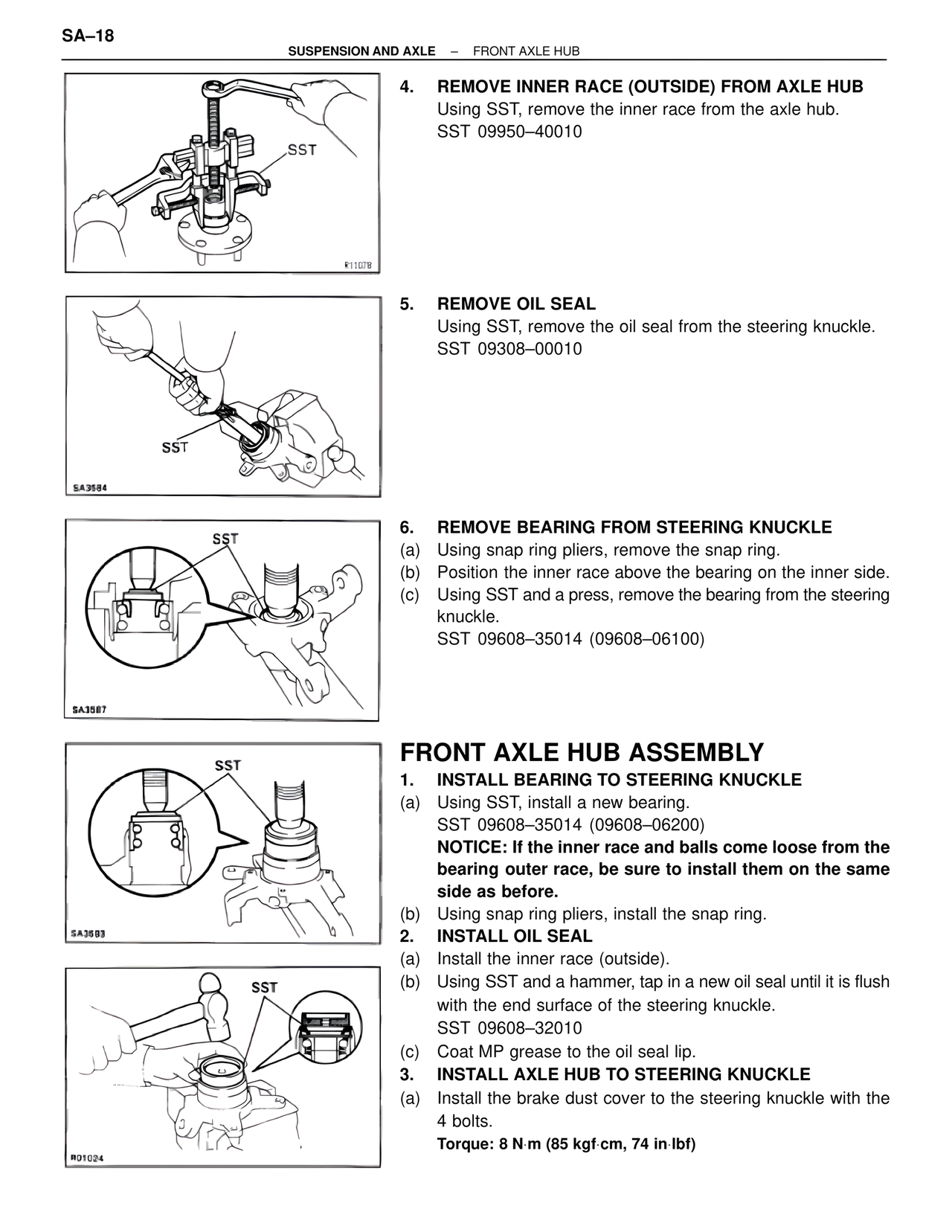

SA–18
SUSPENSION AND AXLE – FRONT AXLE HUB
4. REMOVE INNER RACE (OUTSIDE) FROM AXLE HUB
Using SST, remove the inner race from the axle hub.
SST 09950–40010
SST
R11078
5. REMOVE OIL SEAL
Using SST, remove the oil seal from the steering knuckle.
SST 09308–00010
SST
SA3584
6. REMOVE BEARING FROM STEERING KNUCKLE
(a) Using snap ring pliers, remove the snap ring.
(b) Position the inner race above the bearing on the inner side.
(c) Using SST and a press, remove the bearing from the steering
knuckle.
SST 09608–35014 (09608–06100)
SST
SA3587
FRONT AXLE HUB ASSEMBLY
1. INSTALL BEARING TO STEERING KNUCKLE
(a) Using SST, install a new bearing.
SST 09608–35014 (09608–06200)
NOTICE: If the inner race and balls come loose from the
bearing outer race, be sure to install them on the same
side as before.
(b) Using snap ring pliers, install the snap ring.
2. INSTALL OIL SEAL
(a) Install the inner race (outside).
(b) Using SST and a hammer, tap in a new oil seal until it is flush
with the end surface of the steering knuckle.
SST 09608–32010
(c) Coat MP grease to the oil seal lip.
3. INSTALL AXLE HUB TO STEERING KNUCKLE
(a) Install the brake dust cover to the steering knuckle with the
4 bolts.
Torque: 8 N·m (85 kgf·cm, 74 in·lbf)
SST
SA3683
SST
R01024
