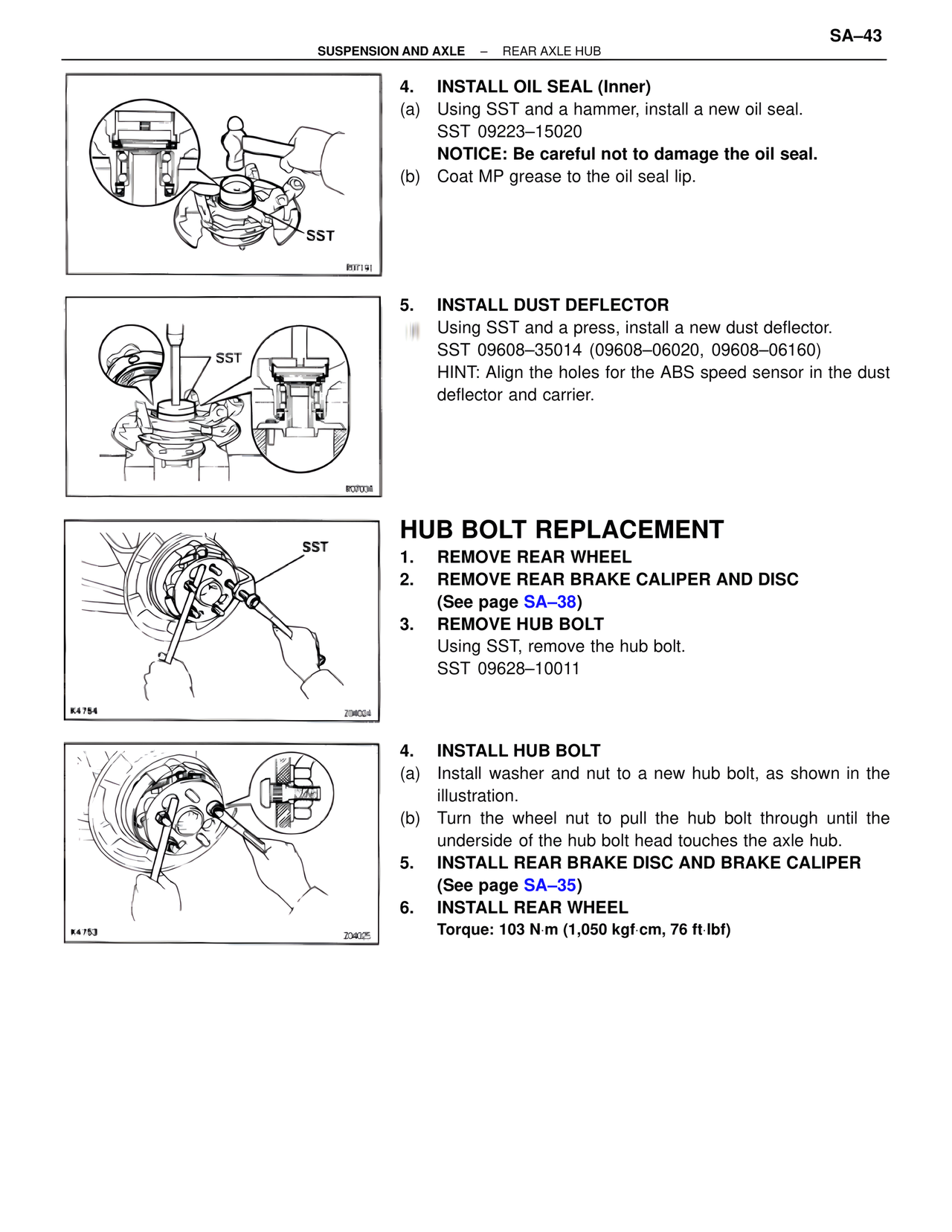

SA–43
SUSPENSION AND AXLE – REAR AXLE HUB
4. INSTALL OIL SEAL (Inner)
(a) Using SST and a hammer, install a new oil seal.
SST 09223–15020
NOTICE: Be careful not to damage the oil seal.
(b) Coat MP grease to the oil seal lip.
SST
R07191
5. INSTALL DUST DEFLECTOR
Using SST and a press, install a new dust deflector.
SST 09608–35014 (09608–06020, 09608–06160)
HINT: Align the holes for the ABS speed sensor in the dust
deflector and carrier.
SST
R07038
HUB BOLT REPLACEMENT
1. REMOVE REAR WHEEL
2. REMOVE REAR BRAKE CALIPER AND DISC
(See page SA–38)
3. REMOVE HUB BOLT
Using SST, remove the hub bolt.
SST 09628–10011
SST
K4784 204024
4. INSTALL HUB BOLT
(a) Install washer and nut to a new hub bolt, as shown in the
illustration.
(b) Turn the wheel nut to pull the hub bolt through until the
underside of the hub bolt head touches the axle hub.
5. INSTALL REAR BRAKE DISC AND BRAKE CALIPER
(See page SA–35)
6. INSTALL REAR WHEEL
Torque: 103 N·m (1,050 kgf·cm, 76 ft·lbf)
K4753 204025
