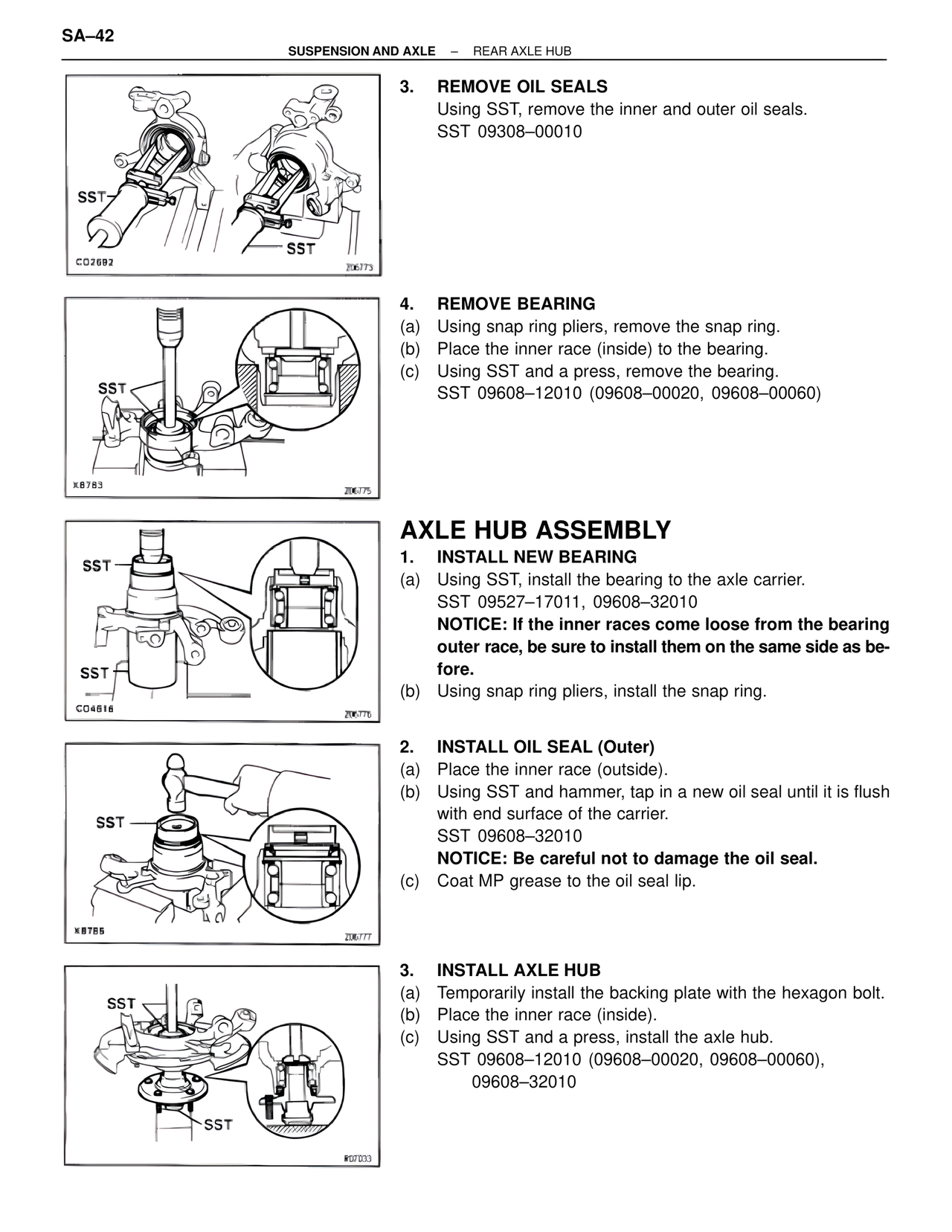

SA–42 SUSPENSION AND AXLE – REAR AXLE HUB 3. REMOVE OIL SEALS Using SST, remove the inner and outer oil seals. SST 09308–00010 CO2682 SST SST Z06773 4. REMOVE BEARING (a) Using snap ring pliers, remove the snap ring. (b) Place the inner race (inside) to the bearing. (c) Using SST and a press, remove the bearing. SST 09608–12010 (09608–00020, 09608–00060) XB783 SST Z06775 AXLE HUB ASSEMBLY 1. INSTALL NEW BEARING (a) Using SST, install the bearing to the axle carrier. SST 09527–17011, 09608–32010 NOTICE: If the inner races come loose from the bearing outer race, be sure to install them on the same side as before. (b) Using snap ring pliers, install the snap ring. CO4618 SST SST Z06776 2. INSTALL OIL SEAL (Outer) (a) Place the inner race (outside). (b) Using SST and hammer, tap in a new oil seal until it is flush with end surface of the carrier. SST 09608–32010 NOTICE: Be careful not to damage the oil seal. (c) Coat MP grease to the oil seal lip. XB785 SST Z06777 3. INSTALL AXLE HUB (a) Temporarily install the backing plate with the hexagon bolt. (b) Place the inner race (inside). (c) Using SST and a press, install the axle hub. SST 09608–12010 (09608–00020, 09608–00060), 09608–32010 SST SST R07033
