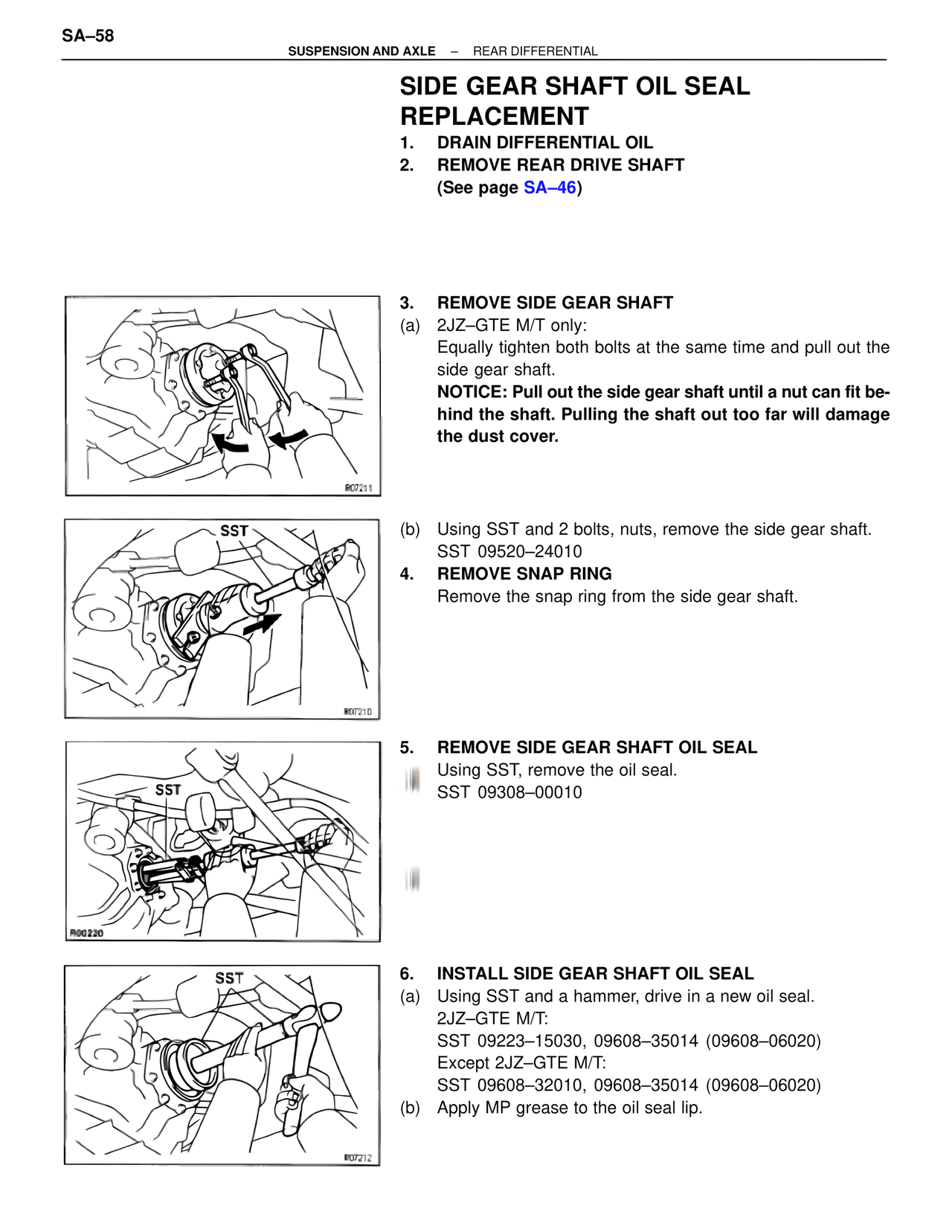

SA–58
SUSPENSION AND AXLE – REAR DIFFERENTIAL
SIDE GEAR SHAFT OIL SEAL REPLACEMENT
1. DRAIN DIFFERENTIAL OIL
2. REMOVE REAR DRIVE SHAFT
(See page SA–46)
3. REMOVE SIDE GEAR SHAFT
(a) 2JZ–GTE M/T only:
Equally tighten both bolts at the same time and pull out the side gear shaft.
NOTICE: Pull out the side gear shaft until a nut can fit behind the shaft. Pulling the shaft out too far will damage the dust cover.
(b) Using SST and 2 bolts, nuts, remove the side gear shaft.
SST 09520–24010
4. REMOVE SNAP RING
Remove the snap ring from the side gear shaft.
5. REMOVE SIDE GEAR SHAFT OIL SEAL
Using SST, remove the oil seal.
SST 09308–00010
6. INSTALL SIDE GEAR SHAFT OIL SEAL
(a) Using SST and a hammer, drive in a new oil seal.
2JZ–GTE M/T:
SST 09223–15030, 09608–35014 (09608–06020)
Except 2JZ–GTE M/T:
SST 09608–32010, 09608–35014 (09608–06020)
(b) Apply MP grease to the oil seal lip.
R07211
R07210
R00220
R07212
SST
SST
SST
