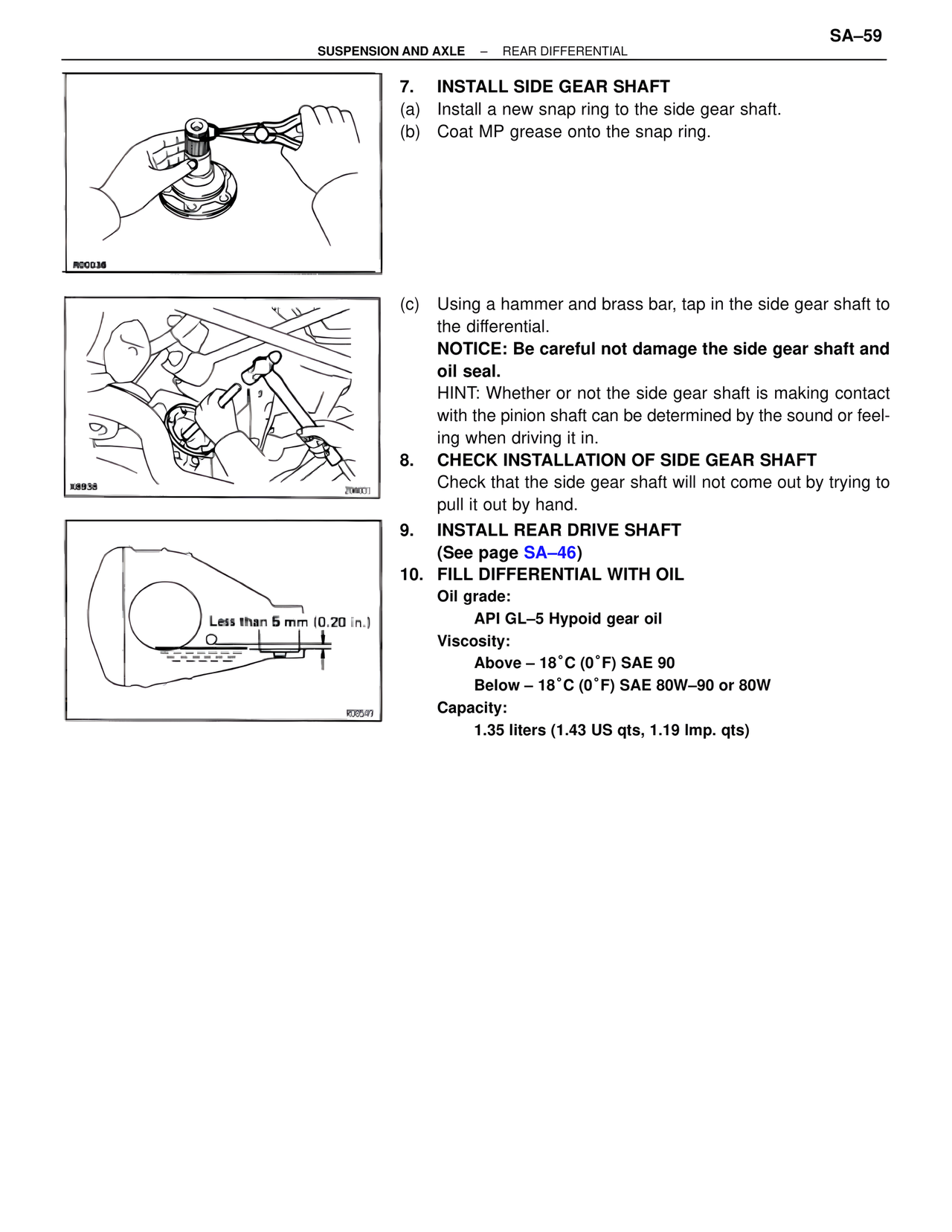

SA–59 SUSPENSION AND AXLE – REAR DIFFERENTIAL 7. INSTALL SIDE GEAR SHAFT (a) Install a new snap ring to the side gear shaft. (b) Coat MP grease onto the snap ring. (c) Using a hammer and brass bar, tap in the side gear shaft to the differential. NOTICE: Be careful not damage the side gear shaft and oil seal. HINT: Whether or not the side gear shaft is making contact with the pinion shaft can be determined by the sound or feel- ing when driving it in. 8. CHECK INSTALLATION OF SIDE GEAR SHAFT Check that the side gear shaft will not come out by trying to pull it out by hand. 9. INSTALL REAR DRIVE SHAFT (See page SA–46) 10. FILL DIFFERENTIAL WITH OIL Oil grade: API GL–5 Hypoid gear oil Viscosity: Above – 18˚C (0˚F) SAE 90 Below – 18˚C (0˚F) SAE 80W–90 or 80W Capacity: 1.35 liters (1.43 US qts, 1.19 Imp. qts) Less than 5 mm (0.20 in.) R00038 X8938 206001 R00549
