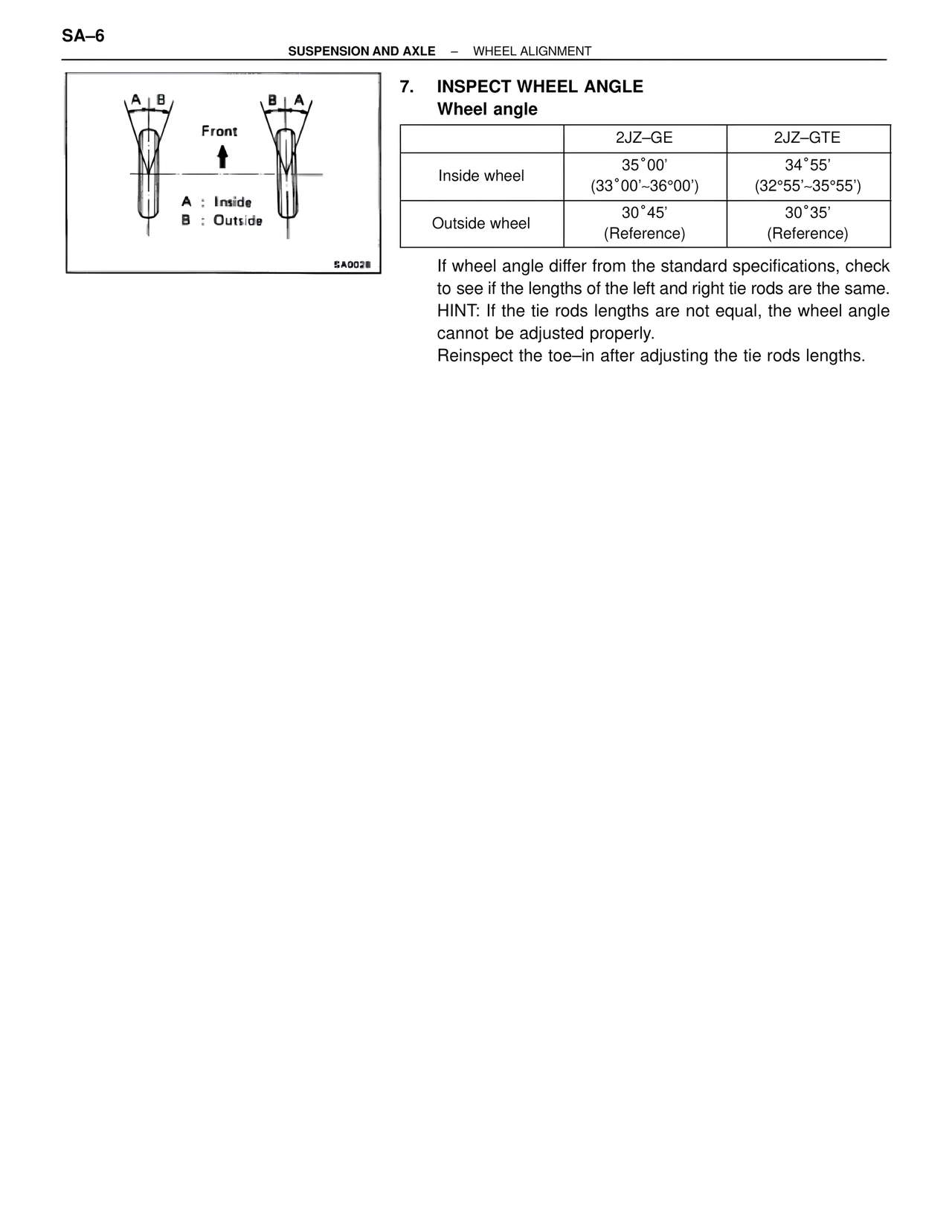

SA–6 SUSPENSION AND AXLE – WHEEL ALIGNMENT A : Inside B : Outside Front A B B A SA0028 7. INSPECT WHEEL ANGLE Wheel angle 2JZ–GE 2JZ–GTE Inside wheel 35°00' 34°55' (33°00'–36°00') (32°55'–35°55') Outside wheel 30°45' 30°35' (Reference) (Reference) If wheel angle differ from the standard specifications, check to see if the lengths of the left and right tie rods are the same. HINT: If the tie rods lengths are not equal, the wheel angle cannot be adjusted properly. Reinspect the toe–in after adjusting the tie rods lengths.
