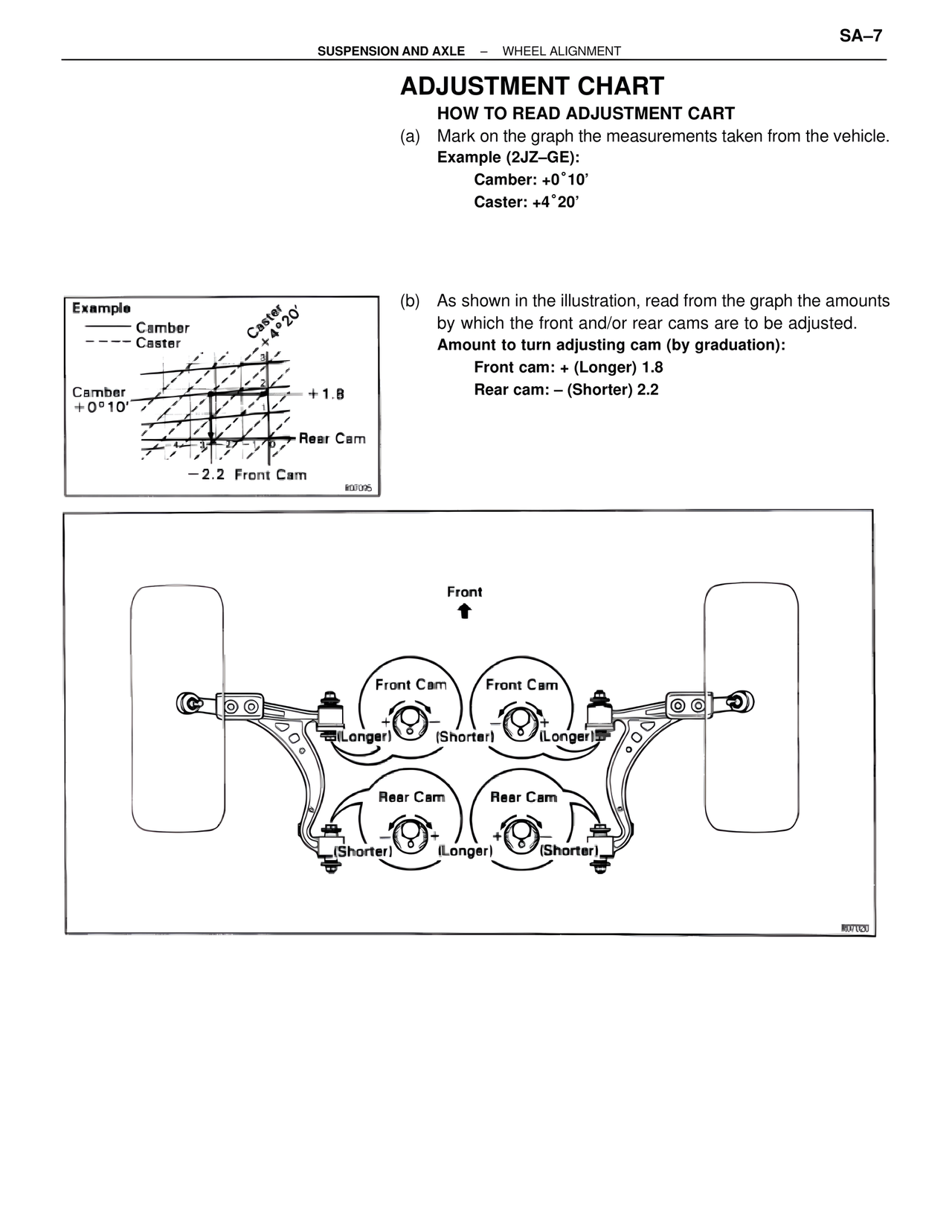

SA–7 SUSPENSION AND AXLE – WHEEL ALIGNMENT ADJUSTMENT CHART HOW TO READ ADJUSTMENT CART (a) Mark on the graph the measurements taken from the vehicle. Example (2JZ–GE): Camber: +0˚10' Caster: +4˚20' Example —— Camber - - - - Caster Caster +4°20' Camber +0°10' +1.8 Rear Cam −2.2 Front Cam R07095 (b) As shown in the illustration, read from the graph the amounts by which the front and/or rear cams are to be adjusted. Amount to turn adjusting cam (by graduation): Front cam: + (Longer) 1.8 Rear cam: – (Shorter) 2.2 Front ↑ Front Cam Front Cam + + (Longer) (Shorter) (Longer) Rear Cam Rear Cam + + (Shorter) (Longer) (Shorter) R07020
