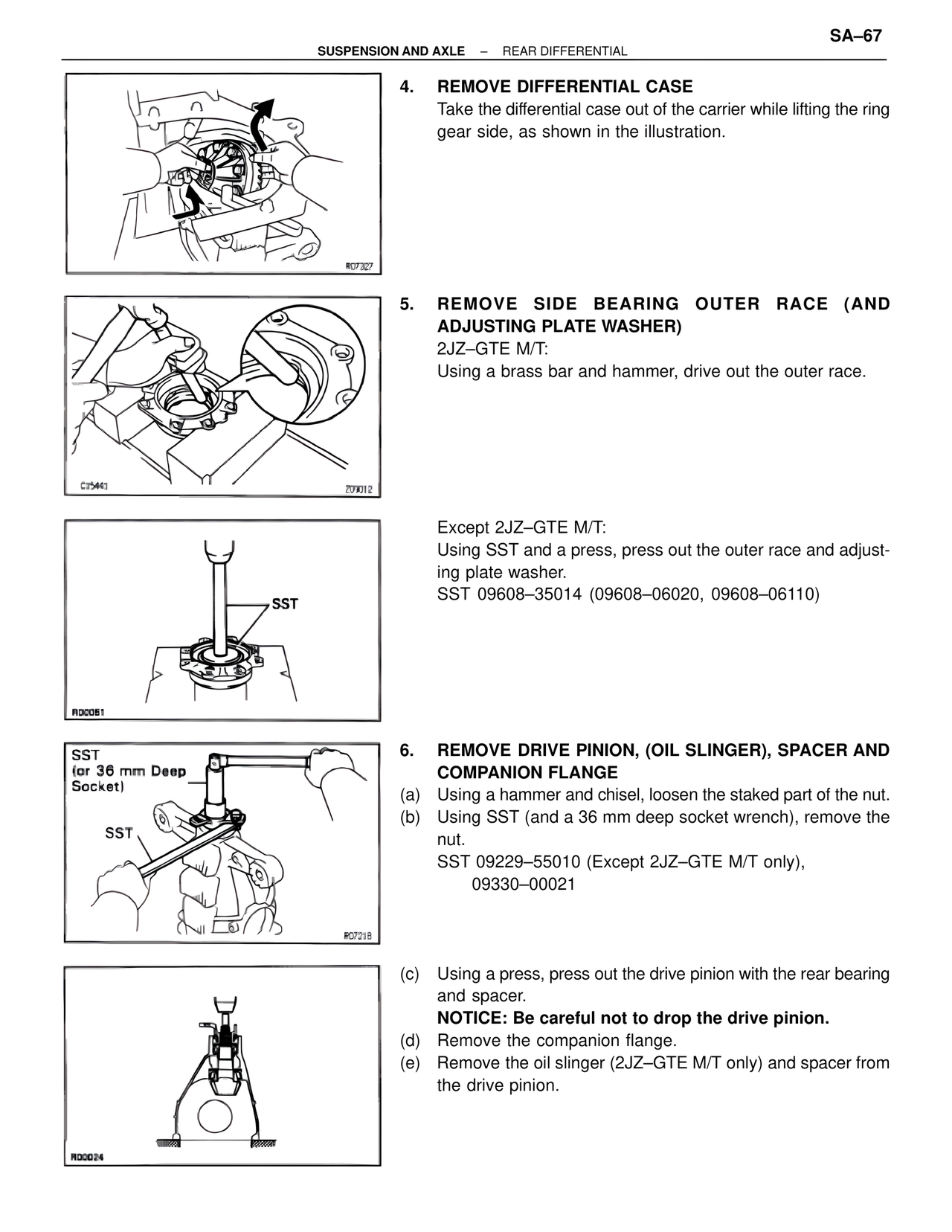

SA–67
SUSPENSION AND AXLE – REAR DIFFERENTIAL
4. REMOVE DIFFERENTIAL CASE
Take the differential case out of the carrier while lifting the ring gear side, as shown in the illustration.
5. REMOVE SIDE BEARING OUTER RACE (AND ADJUSTING PLATE WASHER)
2JZ–GTE M/T:
Using a brass bar and hammer, drive out the outer race.
Except 2JZ–GTE M/T:
Using SST and a press, press out the outer race and adjusting plate washer.
SST 09608–35014 (09608–06020, 09608–06110)
6. REMOVE DRIVE PINION, (OIL SLINGER), SPACER AND COMPANION FLANGE
(a) Using a hammer and chisel, loosen the staked part of the nut.
(b) Using SST (and a 36 mm deep socket wrench), remove the nut.
SST 09229–55010 (Except 2JZ–GTE M/T only),
09330–00021
(c) Using a press, press out the drive pinion with the rear bearing and spacer.
NOTICE: Be careful not to drop the drive pinion.
(d) Remove the companion flange.
(e) Remove the oil slinger (2JZ–GTE M/T only) and spacer from the drive pinion.
SST
SST (or 36 mm Deep Socket)
SST
R07327
C35441
Z09012
R00051
R07218
R00024
