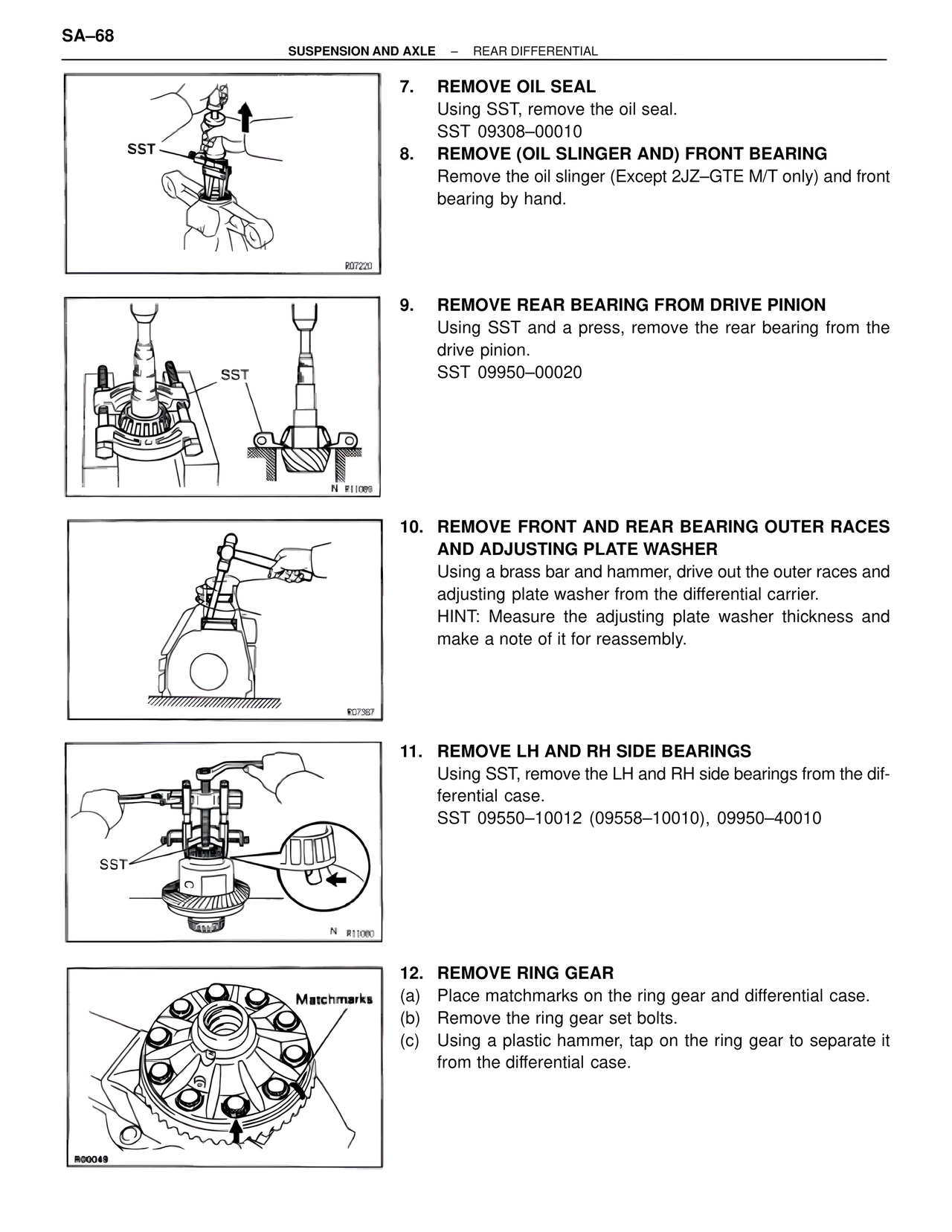

SA–68
SUSPENSION AND AXLE – REAR DIFFERENTIAL
7. REMOVE OIL SEAL
Using SST, remove the oil seal.
SST 09308–00010
8. REMOVE (OIL SLINGER AND) FRONT BEARING
Remove the oil slinger (Except 2JZ–GTE M/T only) and front
bearing by hand.
SST
R07220
9. REMOVE REAR BEARING FROM DRIVE PINION
Using SST and a press, remove the rear bearing from the
drive pinion.
SST 09950–00020
SST
N R11089
10. REMOVE FRONT AND REAR BEARING OUTER RACES
AND ADJUSTING PLATE WASHER
Using a brass bar and hammer, drive out the outer races and
adjusting plate washer from the differential carrier.
HINT: Measure the adjusting plate washer thickness and
make a note of it for reassembly.
R07387
11. REMOVE LH AND RH SIDE BEARINGS
Using SST, remove the LH and RH side bearings from the dif-
ferential case.
SST 09550–10012 (09558–10010), 09950–40010
SST
N R11080
12. REMOVE RING GEAR
(a) Place matchmarks on the ring gear and differential case.
(b) Remove the ring gear set bolts.
(c) Using a plastic hammer, tap on the ring gear to separate it
from the differential case.
Matchmarks
R00049
