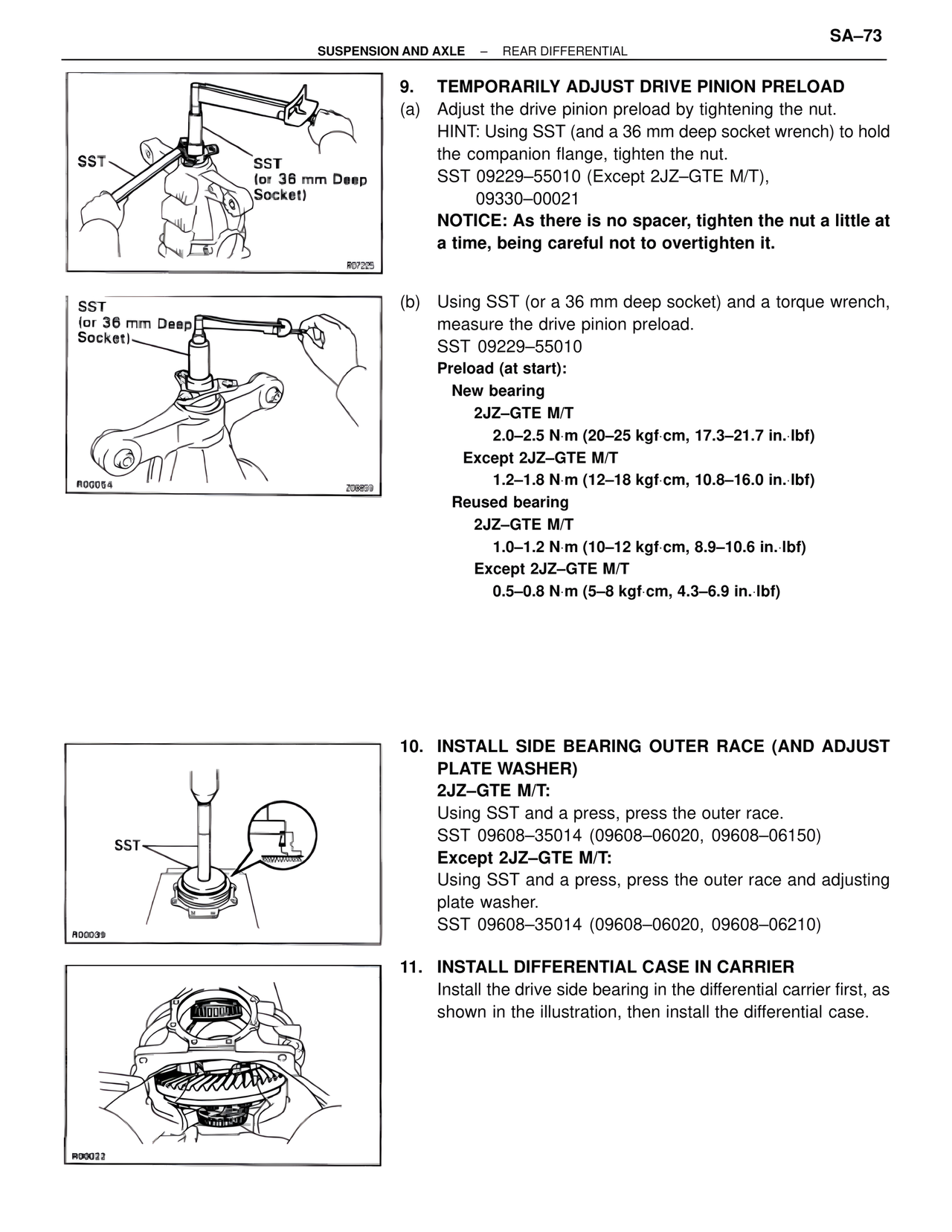

SA–73
SUSPENSION AND AXLE – REAR DIFFERENTIAL
SST
SST
(or 36 mm Deep
Socket)
R07225
9. TEMPORARILY ADJUST DRIVE PINION PRELOAD
(a) Adjust the drive pinion preload by tightening the nut.
HINT: Using SST (and a 36 mm deep socket wrench) to hold
the companion flange, tighten the nut.
SST 09229–55010 (Except 2JZ–GTE M/T),
09330–00021
NOTICE: As there is no spacer, tighten the nut a little at
a time, being careful not to overtighten it.
SST
(or 36 mm Deep
Socket)
R00054
Z08859
(b) Using SST (or a 36 mm deep socket) and a torque wrench,
measure the drive pinion preload.
SST 09229–55010
Preload (at start):
New bearing
2JZ–GTE M/T
2.0–2.5 N·m (20–25 kgf·cm, 17.3–21.7 in.·lbf)
Except 2JZ–GTE M/T
1.2–1.8 N·m (12–18 kgf·cm, 10.8–16.0 in.·lbf)
Reused bearing
2JZ–GTE M/T
1.0–1.2 N·m (10–12 kgf·cm, 8.9–10.6 in.·lbf)
Except 2JZ–GTE M/T
0.5–0.8 N·m (5–8 kgf·cm, 4.3–6.9 in.·lbf)
SST
R00039
10. INSTALL SIDE BEARING OUTER RACE (AND ADJUST
PLATE WASHER)
2JZ–GTE M/T:
Using SST and a press, press the outer race.
SST 09608–35014 (09608–06020, 09608–06150)
Except 2JZ–GTE M/T:
Using SST and a press, press the outer race and adjusting
plate washer.
SST 09608–35014 (09608–06020, 09608–06210)
R00022
11. INSTALL DIFFERENTIAL CASE IN CARRIER
Install the drive side bearing in the differential carrier first, as
shown in the illustration, then install the differential case.
