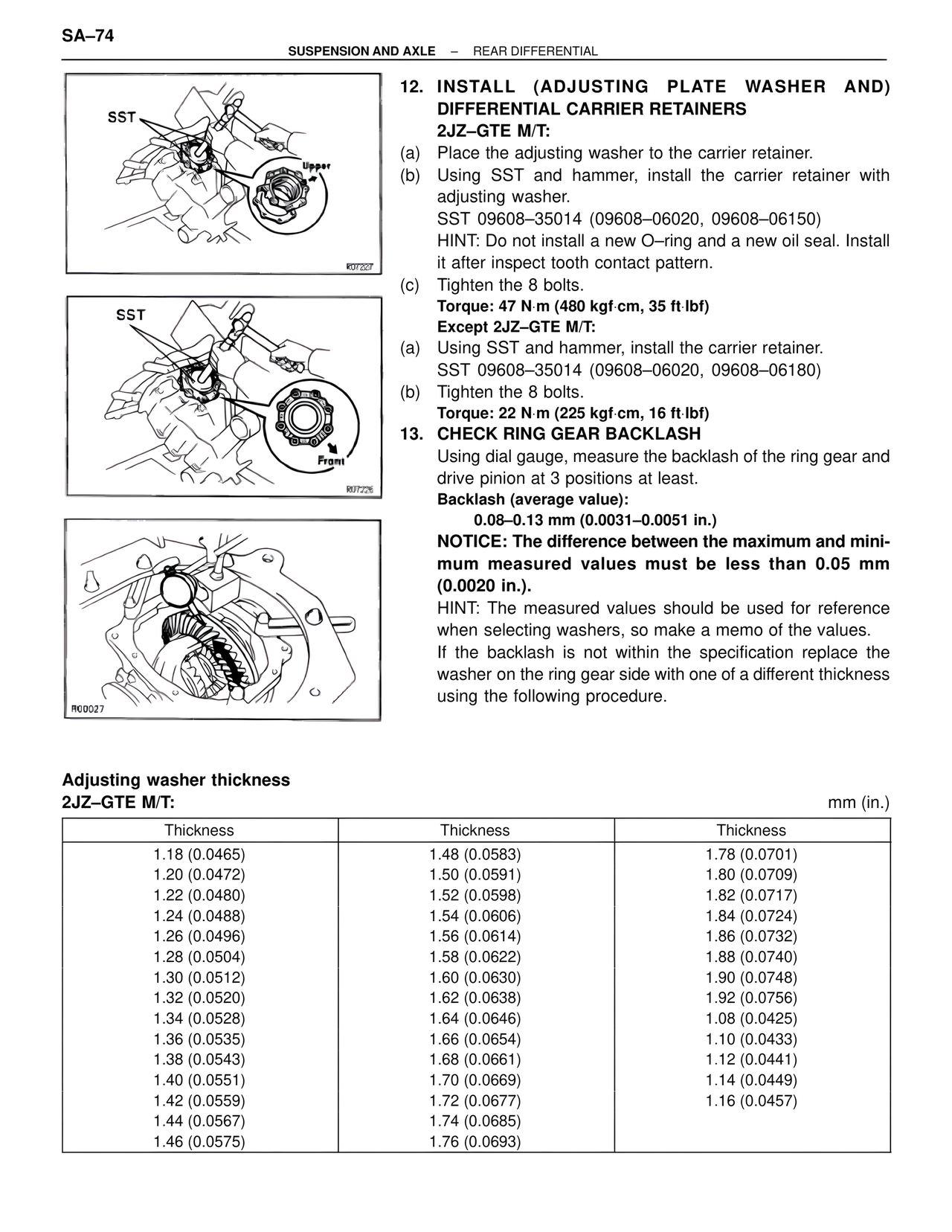

SA–74 SUSPENSION AND AXLE – REAR DIFFERENTIAL 12. INSTALL (ADJUSTING PLATE WASHER AND) DIFFERENTIAL CARRIER RETAINERS 2JZ–GTE M/T: (a) Place the adjusting washer to the carrier retainer. (b) Using SST and hammer, install the carrier retainer with adjusting washer. SST 09608–35014 (09608–06020, 09608–06150) HINT: Do not install a new O–ring and a new oil seal. Install it after inspect tooth contact pattern. (c) Tighten the 8 bolts. Torque: 47 N·m (480 kgf·cm, 35 ft·lbf) Except 2JZ–GTE M/T: (a) Using SST and hammer, install the carrier retainer. SST 09608–35014 (09608–06020, 09608–06180) (b) Tighten the 8 bolts. Torque: 22 N·m (225 kgf·cm, 16 ft·lbf) 13. CHECK RING GEAR BACKLASH Using dial gauge, measure the backlash of the ring gear and drive pinion at 3 positions at least. Backlash (average value): 0.08–0.13 mm (0.0031–0.0051 in.) NOTICE: The difference between the maximum and mini- mum measured values must be less than 0.05 mm (0.0020 in.). HINT: The measured values should be used for reference when selecting washers, so make a memo of the values. If the backlash is not within the specification replace the washer on the ring gear side with one of a different thickness using the following procedure. Adjusting washer thickness 2JZ–GTE M/T: mm (in.) Thickness Thickness Thickness 1.18 (0.0465) 1.48 (0.0583) 1.78 (0.0701) 1.20 (0.0472) 1.50 (0.0591) 1.80 (0.0709) 1.22 (0.0480) 1.52 (0.0598) 1.82 (0.0717) 1.24 (0.0488) 1.54 (0.0606) 1.84 (0.0724) 1.26 (0.0496) 1.56 (0.0614) 1.86 (0.0732) 1.28 (0.0504) 1.58 (0.0622) 1.88 (0.0740) 1.30 (0.0512) 1.60 (0.0630) 1.90 (0.0748) 1.32 (0.0520) 1.62 (0.0638) 1.92 (0.0756) 1.34 (0.0528) 1.64 (0.0646) 1.08 (0.0425) 1.36 (0.0535) 1.66 (0.0654) 1.10 (0.0433) 1.38 (0.0543) 1.68 (0.0661) 1.12 (0.0441) 1.40 (0.0551) 1.70 (0.0669) 1.14 (0.0449) 1.42 (0.0559) 1.72 (0.0677) 1.16 (0.0457) 1.44 (0.0567) 1.74 (0.0685) 1.46 (0.0575) 1.76 (0.0693)
