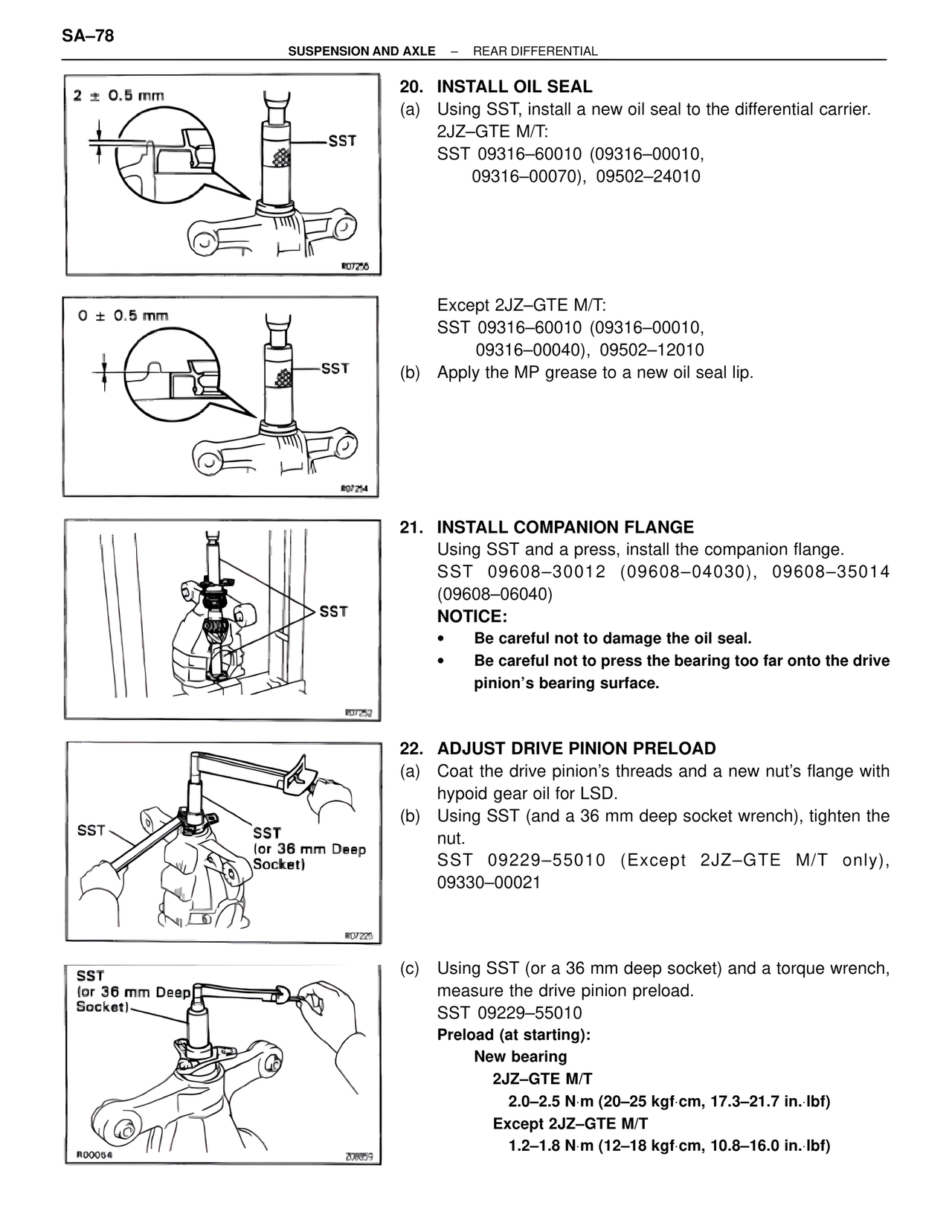

SA–78 SUSPENSION AND AXLE – REAR DIFFERENTIAL 2 ± 0.5 mm SST R07255 20. INSTALL OIL SEAL (a) Using SST, install a new oil seal to the differential carrier. 2JZ–GTE M/T: SST 09316–60010 (09316–00010, 09316–00070), 09502–24010 0 ± 0.5 mm SST R07254 Except 2JZ–GTE M/T: SST 09316–60010 (09316–00010, 09316–00040), 09502–12010 (b) Apply the MP grease to a new oil seal lip. SST R07252 21. INSTALL COMPANION FLANGE Using SST and a press, install the companion flange. SST 09608–30012 (09608–04030), 09608–35014 (09608–06040) NOTICE: • Be careful not to damage the oil seal. • Be careful not to press the bearing too far onto the drive pinion's bearing surface. SST SST (or 36 mm Deep Socket) R07225 22. ADJUST DRIVE PINION PRELOAD (a) Coat the drive pinion's threads and a new nut's flange with hypoid gear oil for LSD. (b) Using SST (and a 36 mm deep socket wrench), tighten the nut. SST 09229–55010 (Except 2JZ–GTE M/T only), 09330–00021 SST (or 36 mm Deep Socket) R00054 Z08859 (c) Using SST (or a 36 mm deep socket) and a torque wrench, measure the drive pinion preload. SST 09229–55010 Preload (at starting): New bearing 2JZ–GTE M/T 2.0–2.5 N·m (20–25 kgf·cm, 17.3–21.7 in.·lbf) Except 2JZ–GTE M/T 1.2–1.8 N·m (12–18 kgf·cm, 10.8–16.0 in.·lbf)
