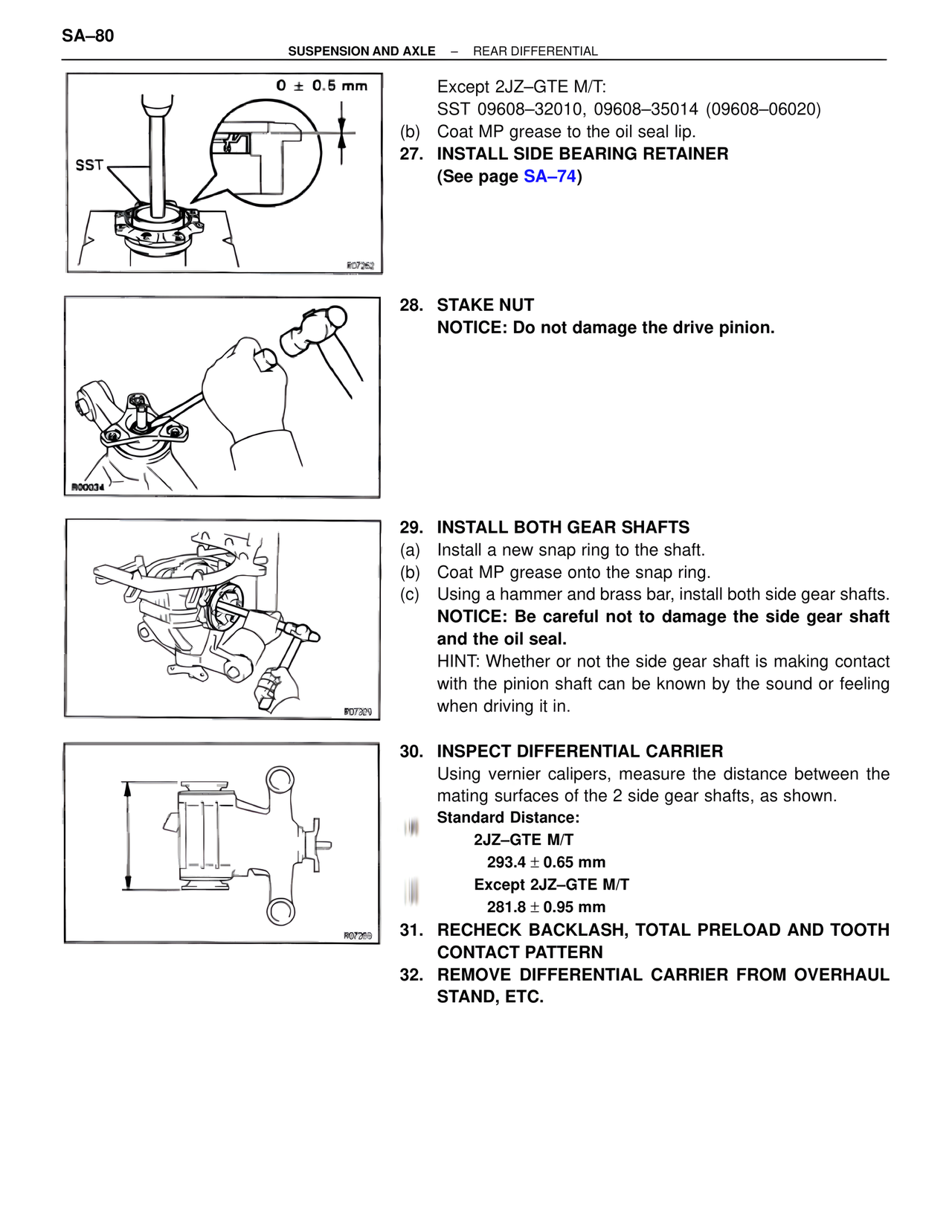

SA–80
SUSPENSION AND AXLE – REAR DIFFERENTIAL
0 ± 0.5 mm
SST
R07262
Except 2JZ–GTE M/T:
SST 09608–32010, 09608–35014 (09608–06020)
(b) Coat MP grease to the oil seal lip.
27. INSTALL SIDE BEARING RETAINER
(See page SA–74)
R00034
28. STAKE NUT
NOTICE: Do not damage the drive pinion.
R07329
29. INSTALL BOTH GEAR SHAFTS
(a) Install a new snap ring to the shaft.
(b) Coat MP grease onto the snap ring.
(c) Using a hammer and brass bar, install both side gear shafts.
NOTICE: Be careful not to damage the side gear shaft
and the oil seal.
HINT: Whether or not the side gear shaft is making contact
with the pinion shaft can be known by the sound or feeling
when driving it in.
R07369
30. INSPECT DIFFERENTIAL CARRIER
Using vernier calipers, measure the distance between the
mating surfaces of the 2 side gear shafts, as shown.
Standard Distance:
2JZ–GTE M/T
293.4 ± 0.65 mm
Except 2JZ–GTE M/T
281.8 ± 0.95 mm
31. RECHECK BACKLASH, TOTAL PRELOAD AND TOOTH
CONTACT PATTERN
32. REMOVE DIFFERENTIAL CARRIER FROM OVERHAUL
STAND, ETC.
