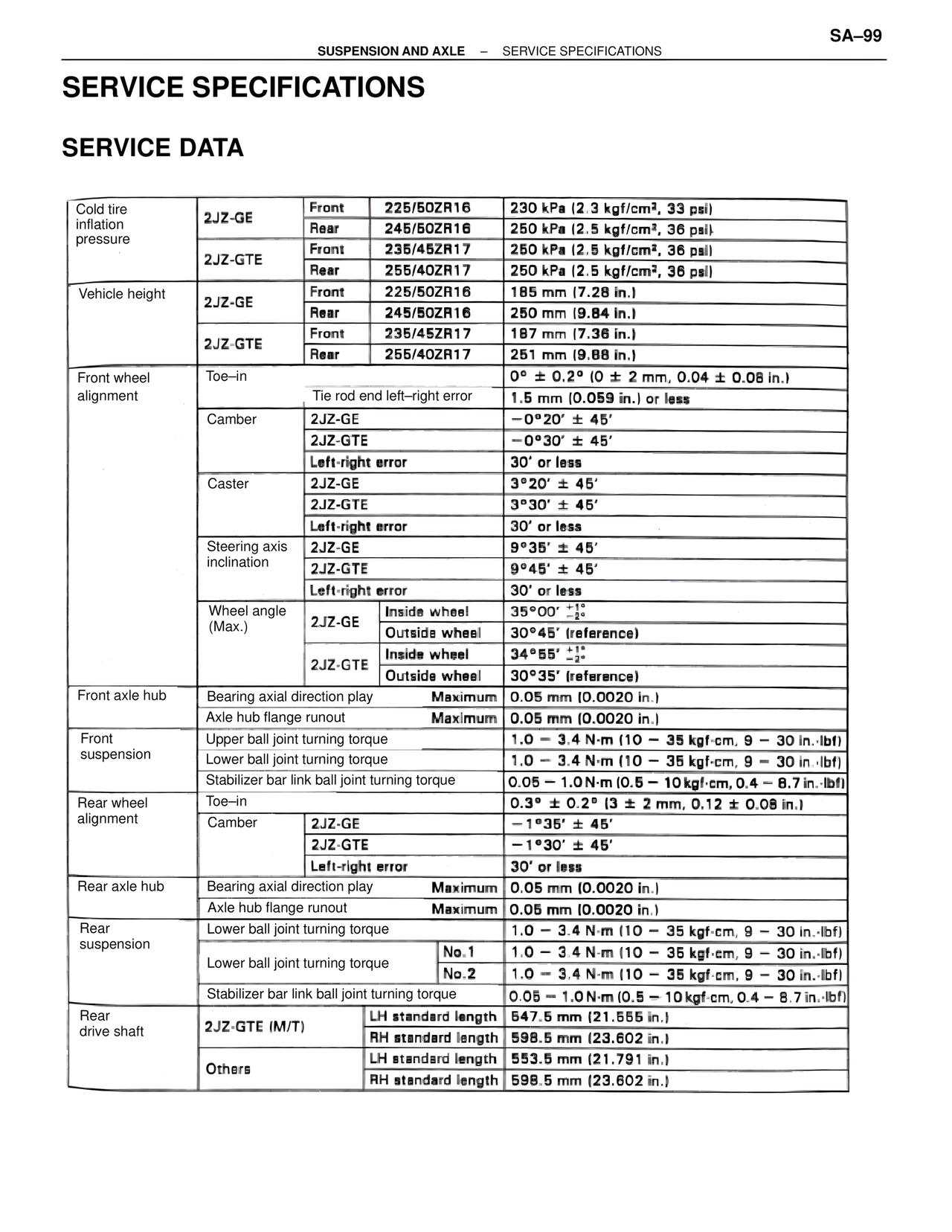

SA–99 SUSPENSION AND AXLE – SERVICE SPECIFICATIONS SERVICE SPECIFICATIONS SERVICE DATA Cold tire inflation pressure 2JZ-GE Front 225/50ZR16 230 kPa (2.3 kgf/cm², 33 psi) Rear 245/50ZR16 250 kPa (2.5 kgf/cm², 36 psi) 2JZ-GTE Front 235/45ZR17 250 kPa (2.5 kgf/cm², 36 psi) Rear 255/40ZR17 250 kPa (2.5 kgf/cm², 36 psi) Vehicle height 2JZ-GE Front 225/50ZR16 185 mm (7.28 in.) Rear 245/50ZR16 250 mm (9.84 in.) 2JZ-GTE Front 235/45ZR17 187 mm (7.36 in.) Rear 255/40ZR17 251 mm (9.88 in.) Front wheel alignment Toe–in 0° ± 0.2° (0 ± 2 mm, 0.04 ± 0.08 in.) Tie rod end left–right error 1.5 mm (0.059 in.) or less Camber 2JZ-GE –0°20' ± 45' 2JZ-GTE –0°30' ± 45' Left-right error 30' or less Caster 2JZ-GE 3°20' ± 45' 2JZ-GTE 3°30' ± 45' Left-right error 30' or less Steering axis inclination 2JZ-GE 9°35' ± 45' 2JZ-GTE 9°45' ± 45' Left-right error 30' or less Wheel angle (Max.) 2JZ-GE Inside wheel 35°00' +10°-2° Outside wheel 30°45' (reference) 2JZ-GTE Inside wheel 34°55' +10°-2° Outside wheel 30°35' (reference) Front axle hub Bearing axial direction play Maximum 0.05 mm (0.0020 in.) Axle hub flange runout Maximum 0.05 mm (0.0020 in.) Front suspension Upper ball joint turning torque 1.0 – 3.4 N·m (10 – 35 kgf·cm, 9 – 30 in.·lbf) Lower ball joint turning torque 1.0 – 3.4 N·m (10 – 35 kgf·cm, 9 – 30 in.·lbf) Stabilizer bar link ball joint turning torque 0.05 – 1.0 N·m (0.5 – 10 kgf·cm, 0.4 – 8.7 in.·lbf) Rear wheel alignment Toe–in 0.3° ± 0.2° (3 ± 2 mm, 0.12 ± 0.08 in.) Camber 2JZ-GE –1°35' ± 45' 2JZ-GTE –1°30' ± 45' Left-right error 30' or less Rear axle hub Bearing axial direction play Maximum 0.05 mm (0.0020 in.) Axle hub flange runout Maximum 0.05 mm (0.0020 in.) Rear suspension Lower ball joint turning torque 1.0 – 3.4 N·m (10 – 35 kgf·cm, 9 – 30 in.·lbf) Lower ball joint turning torque No.1 1.0 – 3.4 N·m (10 – 35 kgf·cm, 9 – 30 in.·lbf) No.2 1.0 – 3.4 N·m (10 – 35 kgf·cm, 9 – 30 in.·lbf) Stabilizer bar link ball joint turning torque 0.05 – 1.0 N·m (0.5 – 10 kgf·cm, 0.4 – 8.7 in.·lbf) Rear drive shaft 2JZ-GTE (M/T) LH standard length 547.5 mm (21.555 in.) RH standard length 598.5 mm (23.602 in.) Others LH standard length 553.5 mm (21.791 in.) RH standard length 598.5 mm (23.602 in.)
