ENGINE – SFI SYSTEM (2JZ–GE)

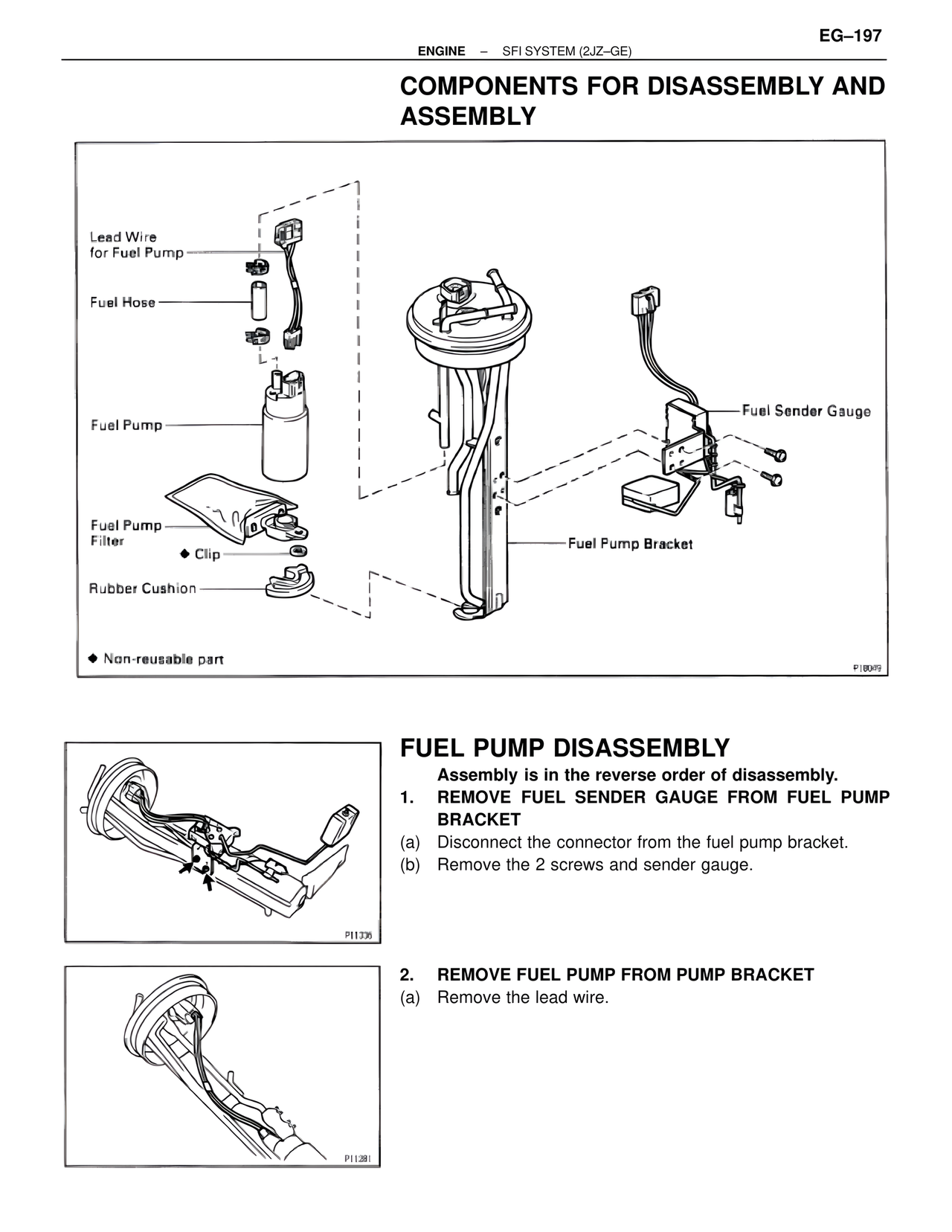

COMPONENTS FOR DISASSEMBLY AND
ASSEMBLY
Lead Wire
for Fuel Pump
Fuel Hose
Fuel Pump
Fuel Pump
Filter
♦ Clip
Rubber Cushion
Fuel Sender Gauge
Fuel Pump Bracket
♦ Non-reusable part
P18009
FUEL PUMP DISASSEMBLY
Assembly is in the reverse order of disassembly.
1. REMOVE FUEL SENDER GAUGE FROM FUEL PUMP
BRACKET
(a) Disconnect the connector from the fuel pump bracket.
(b) Remove the 2 screws and sender gauge.
P11336
2. REMOVE FUEL PUMP FROM PUMP BRACKET
(a) Remove the lead wire.
P11281
