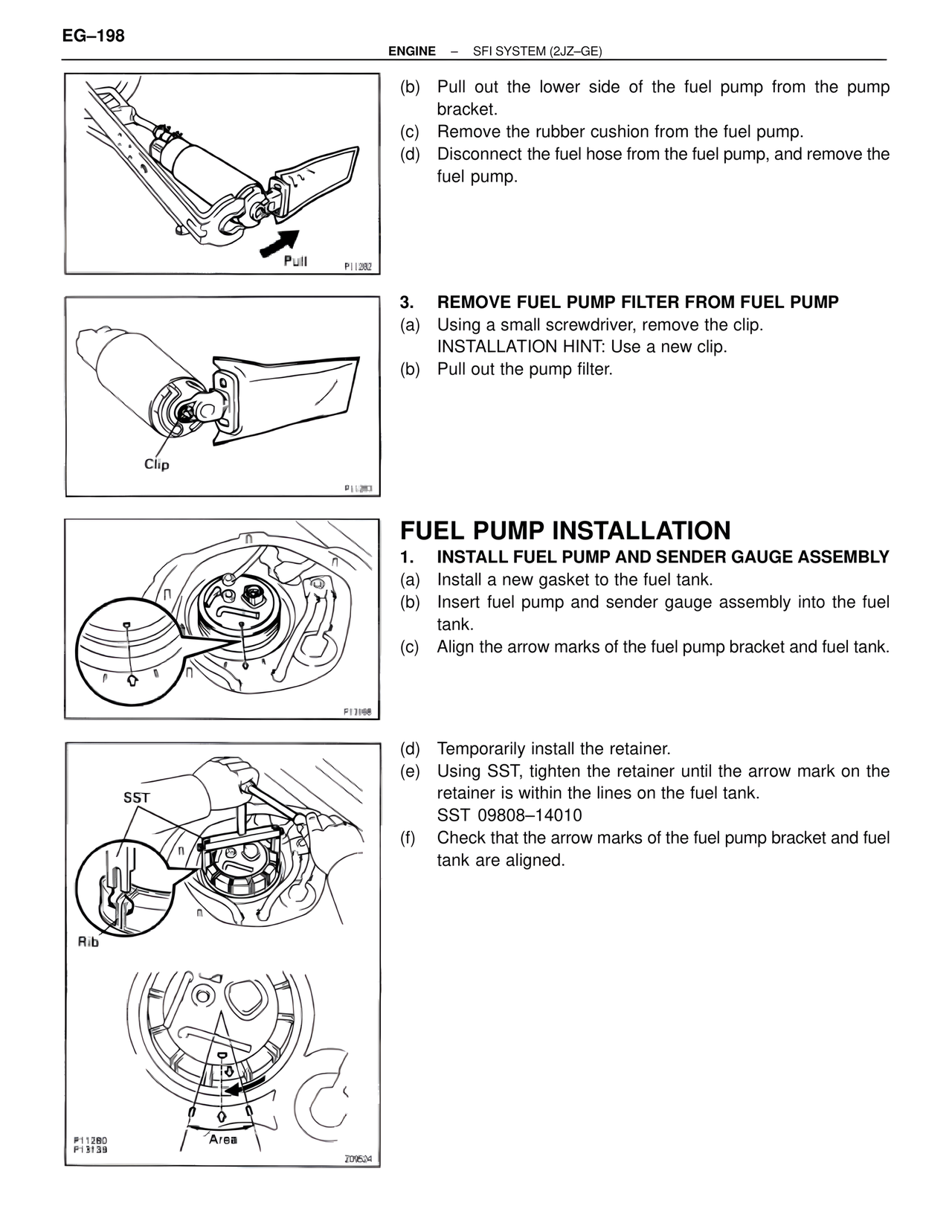

EG–198
ENGINE – SFI SYSTEM (2JZ–GE)
Pull
P11282
(b) Pull out the lower side of the fuel pump from the pump bracket.
(c) Remove the rubber cushion from the fuel pump.
(d) Disconnect the fuel hose from the fuel pump, and remove the fuel pump.
Clip
P11283
3. REMOVE FUEL PUMP FILTER FROM FUEL PUMP
(a) Using a small screwdriver, remove the clip.
INSTALLATION HINT: Use a new clip.
(b) Pull out the pump filter.
P13168
FUEL PUMP INSTALLATION
1. INSTALL FUEL PUMP AND SENDER GAUGE ASSEMBLY
(a) Install a new gasket to the fuel tank.
(b) Insert fuel pump and sender gauge assembly into the fuel tank.
(c) Align the arrow marks of the fuel pump bracket and fuel tank.
SST
Rib
P11280
P13139
Area
Z09524
(d) Temporarily install the retainer.
(e) Using SST, tighten the retainer until the arrow mark on the retainer is within the lines on the fuel tank.
SST 09808–14010
(f) Check that the arrow marks of the fuel pump bracket and fuel tank are aligned.
