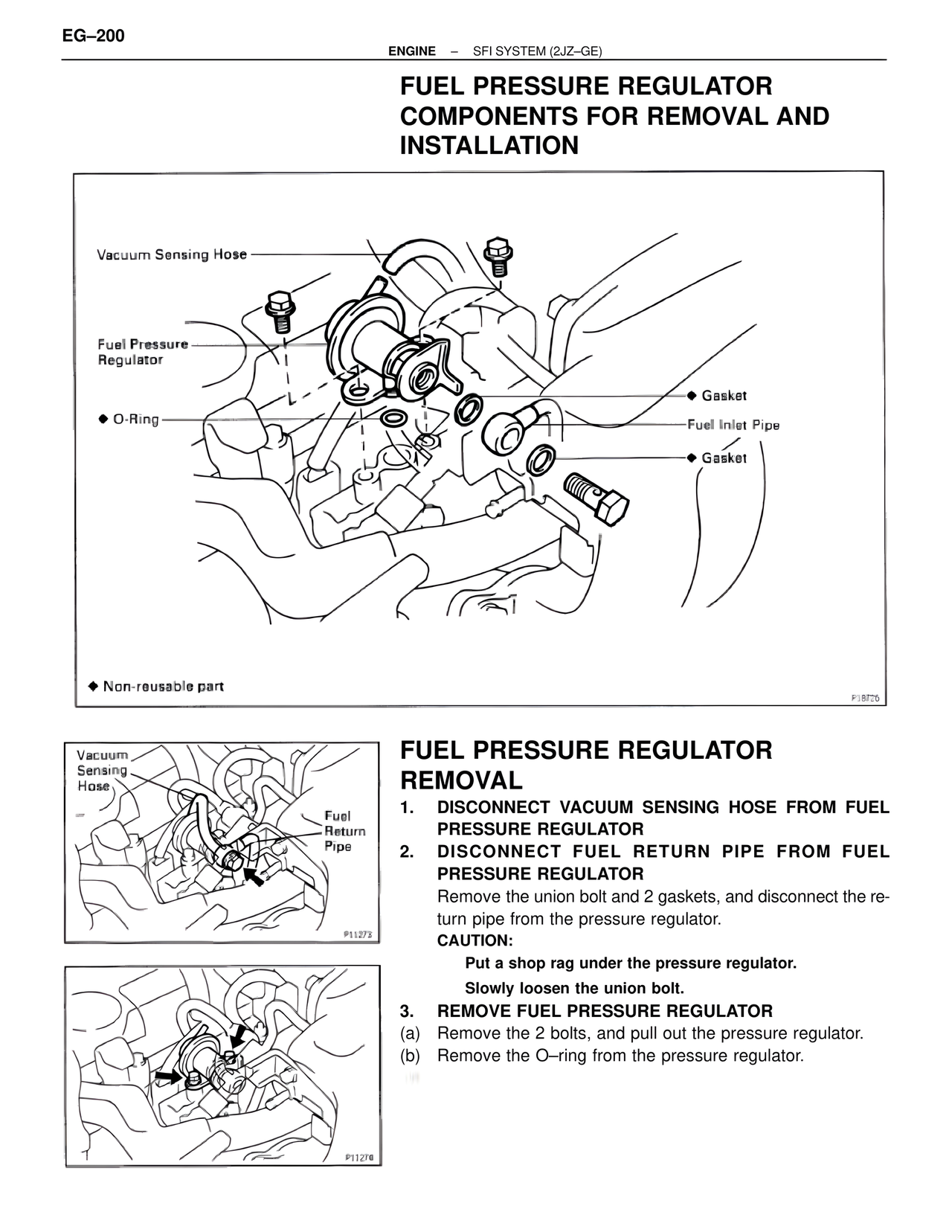

EG–200 ENGINE – SFI SYSTEM (2JZ–GE) FUEL PRESSURE REGULATOR COMPONENTS FOR REMOVAL AND INSTALLATION Vacuum Sensing Hose Fuel Pressure Regulator ◆ O-Ring Gasket Fuel Inlet Pipe Gasket ◆ Non-reusable part P18726 Vacuum Sensing Hose Fuel Return Pipe P11273 P11276 FUEL PRESSURE REGULATOR REMOVAL 1. DISCONNECT VACUUM SENSING HOSE FROM FUEL PRESSURE REGULATOR 2. DISCONNECT FUEL RETURN PIPE FROM FUEL PRESSURE REGULATOR Remove the union bolt and 2 gaskets, and disconnect the re- turn pipe from the pressure regulator. CAUTION: Put a shop rag under the pressure regulator. Slowly loosen the union bolt. 3. REMOVE FUEL PRESSURE REGULATOR (a) Remove the 2 bolts, and pull out the pressure regulator. (b) Remove the O–ring from the pressure regulator.
