P11279

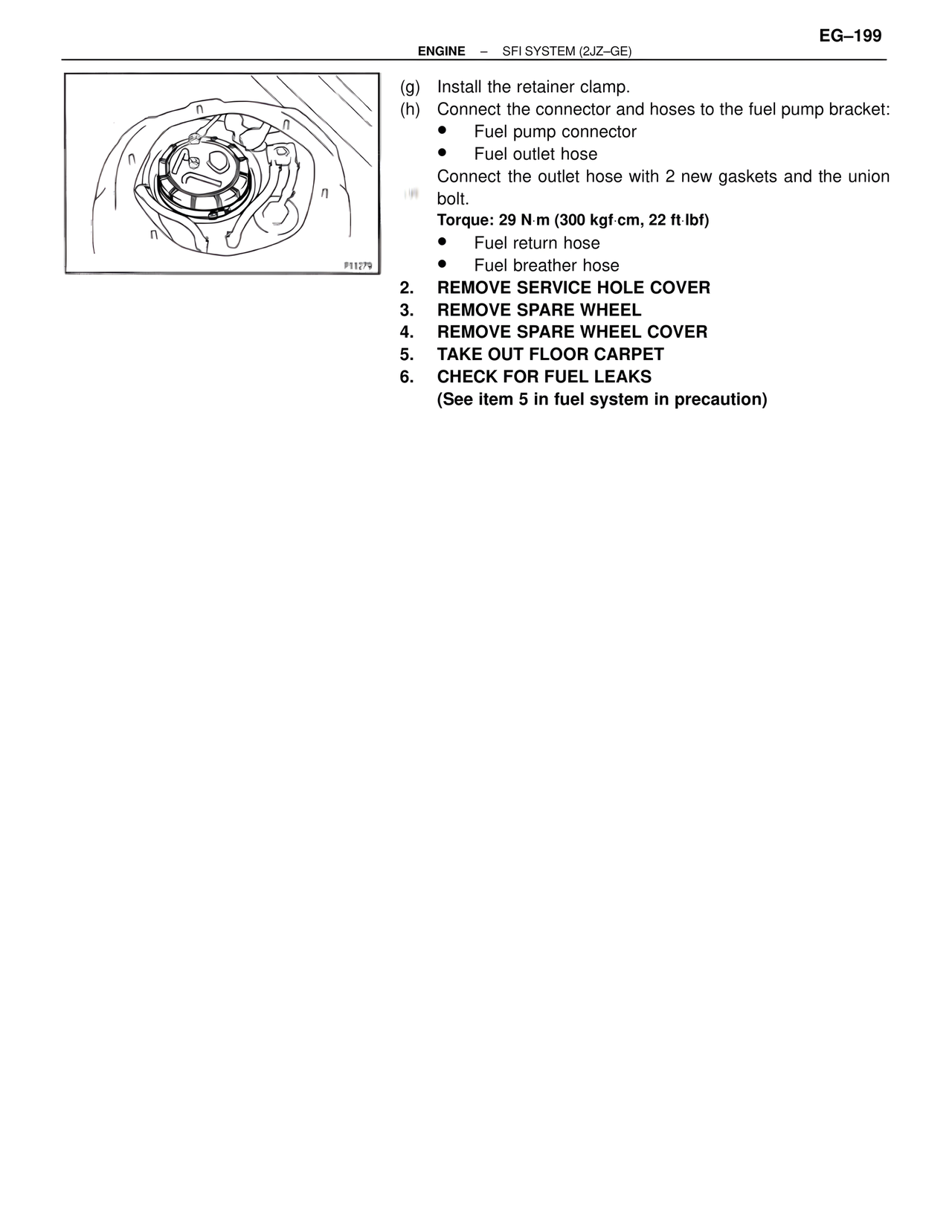

(g) Install the retainer clamp.
(h) Connect the connector and hoses to the fuel pump bracket:
• Fuel pump connector
• Fuel outlet hose
Connect the outlet hose with 2 new gaskets and the union bolt.
Torque: 29 N·m (300 kgf·cm, 22 ft·lbf)
• Fuel return hose
• Fuel breather hose
2. REMOVE SERVICE HOLE COVER
3. REMOVE SPARE WHEEL
4. REMOVE SPARE WHEEL COVER
5. TAKE OUT FLOOR CARPET
6. CHECK FOR FUEL LEAKS
(See item 5 in fuel system in precaution)
